RHYTHM SERVICE MANUAL
PAGE 5.3
2009SUNRISE MEDICAL
R-net Fault Codes cont.
Section 5
Bad Cable Inspect and replace the defective cable(s).
Bad Settings Verify that the programming agrees with the installed equipment. If all settings
are correct, the control module may be defective. Contact Sunrise Technical
Service for assistance.
Module Error Recycle the power. Verify that the cables are correctly mated. If a module has
been replaced recently, suspect that module may be defective. Contact Sunrise
Technical Service for assistance.
System Error
Recycle the power. Verify that
the cables are correctly mated.
If a module has been replaced
recently, suspect that module
may be defective.
Contact Sunrise Technical
Service for assistance.
SID Detached The Omni has detected that a specialty control has become disconnected.
Recheck all cables. If the error is still present, replace the specialty control.
User Switch
Detached
Indicates that a user switch has become disconnected. Reconnect the switch.
Gone to Sleep The predetermined sleep time has been exceeded due to inactivity by the user.
Charging This indication is present when the battery charger is connected. There may
also be an error in the control module. Contact Sunrise Technical Service for
assistance.

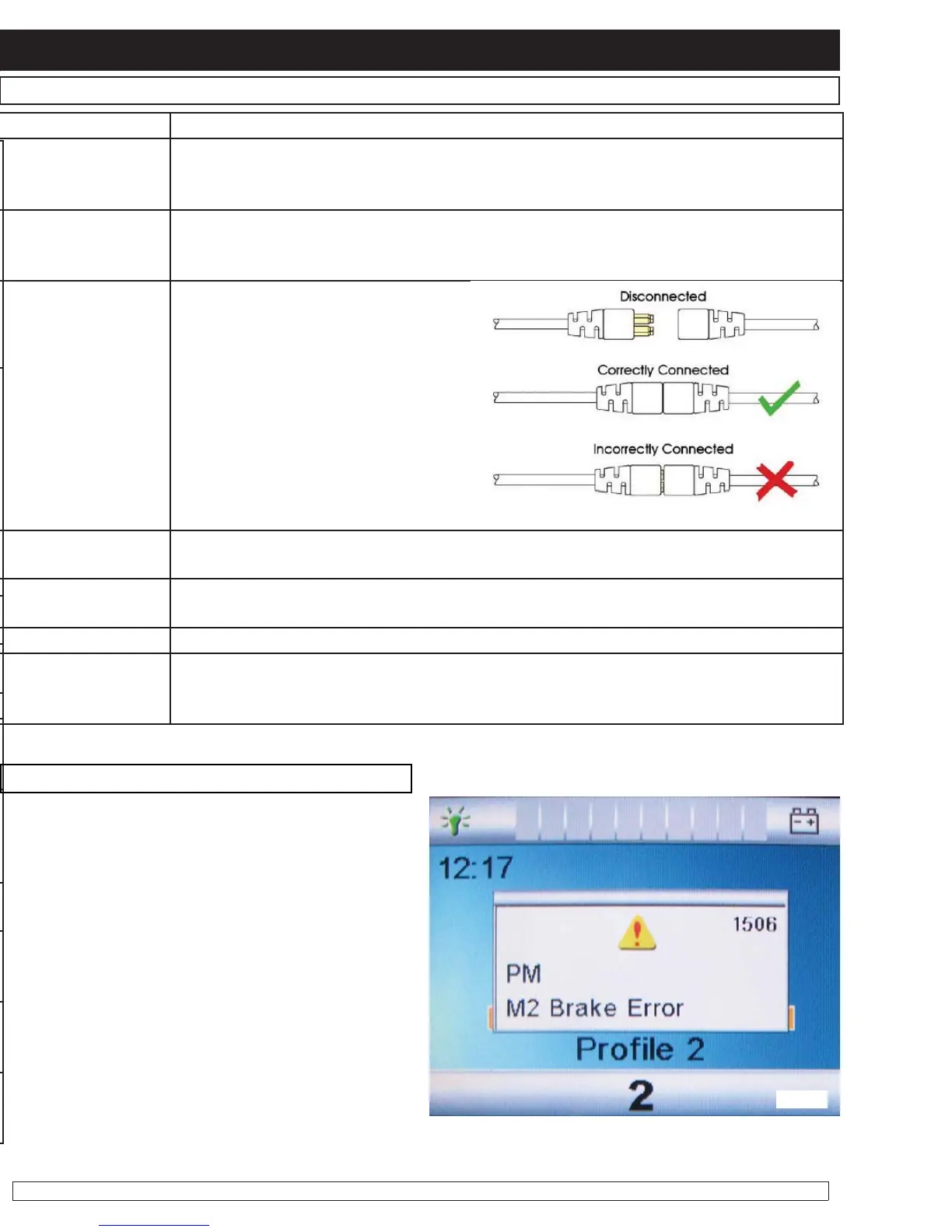

1. In this example, one of the right motor
being disconnected (fi g.5.3.1). The hand control
displays the fault and the power chair will not
operate.
2. To troubleshoot this problem, refer to Table
1, Error Codes.
3. From this error we see that the problem is
being recorded in the PM (Control Module).
4. The hand control tells us that motor 2 (M2)
has the error and it is with the brake circuit. Motor
2 is the right motor.
5. Table 1 informs us to, “Verify that the
right motor is connected to the control module.
Complete the Motor and Gearbox Inspection
section of this manual.”
6. The next step is to complete the Motor and
Gearbox Inspection section of this manual and
Example of R-10 Fault Isolation
fig. 5.3.1
