QUICKIE ELECTRONICS SECTION
Can Bus Pin Outs
Pin Defi nition
1 CAN Hi
2 CAN Lo
3 +24V
4 Ground
Electronic Pin Out Characteristics – QC Motor Controls
Actuator Pin Outs
Pin Defi nition
1 Actuator +
2 Switch A (Encoder A or Reed or Limit)
3 Ground
4 Switch B (Encoder B or Limit)
5 Actuator -
6 +24V
Direct Switch Pin Outs
Pin Defi nition
1 No connection
2 Ground
3 Switch 1
4 Switch 2
Motor Pin Outs
Pin Defi nition
1 Motor + (for forward chair motion)
2 Motor - (for forward chair motion)
3 Brake +
4 Brake -
2
4
1
3
View looking into
cavity of header
connector:
Actuator
Motor
Motor
Actuator
Direct Switch
Can Bus
Battery
Battery Charger

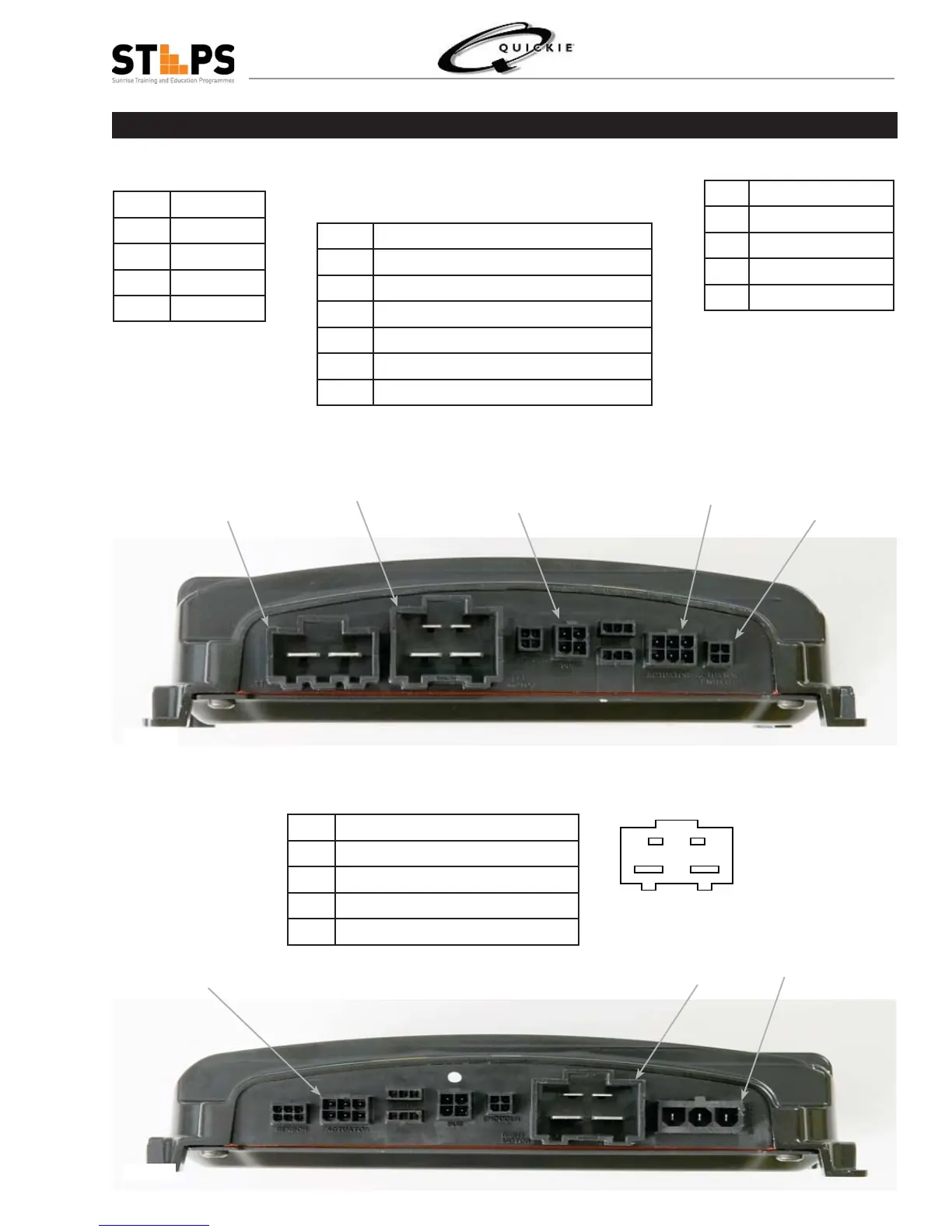

Fig 2.19
Fig 2.20
