SEATING SECTION
The seat has 3” to 4” of built in depth adjustment
depending on the starting depth.
Note: Seat Depth Adjustment is only used as a means
of accommodating an offset backrest.
To adjust the seat depth, follow these adjustments:
The Seat Depth is adjusted by fi rst moving •
the front seat weldment forward. Do this
by removing the mounting hardware (A) and
sliding the seat pan.
Reinstall and tighten the mounting hardware •
after the correct adjustment is reached.
Remove the mounting hardware (B) that secures •
the seat wings.
Remove the mounting hardware that secures •
the seat center pan.
Slide the center pan (C) forward and reinstall •
the mounting hardware.
Slide the wings (D) to the correct position and •
reinstall the mounting hardware.
Seat Depth Adjustments
A
B
B
B
B
C
D

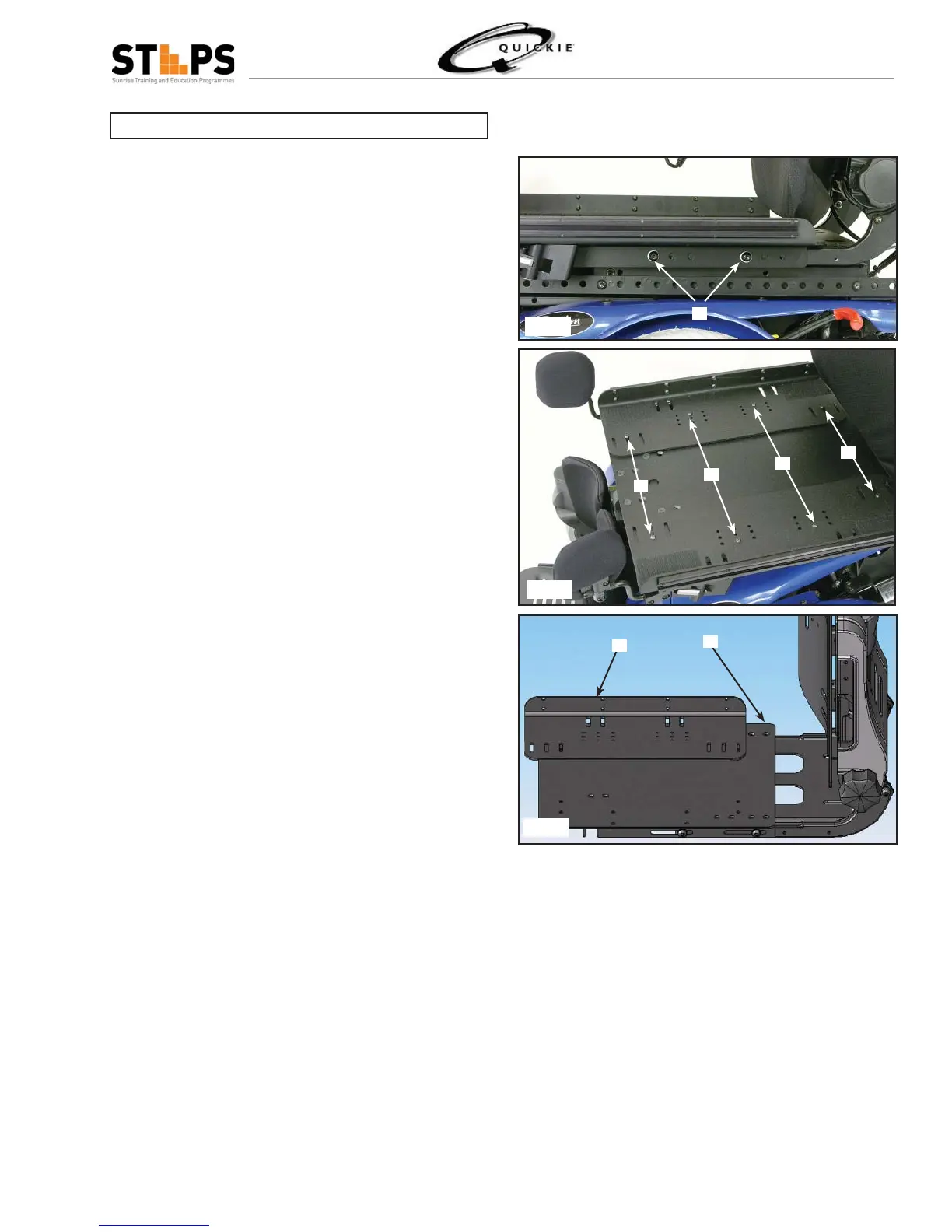

Fig 3.21
Fig 3.22
Fig 3.23
