©2006 Sunrise Medical
SEATING SECTION
Seat Interface

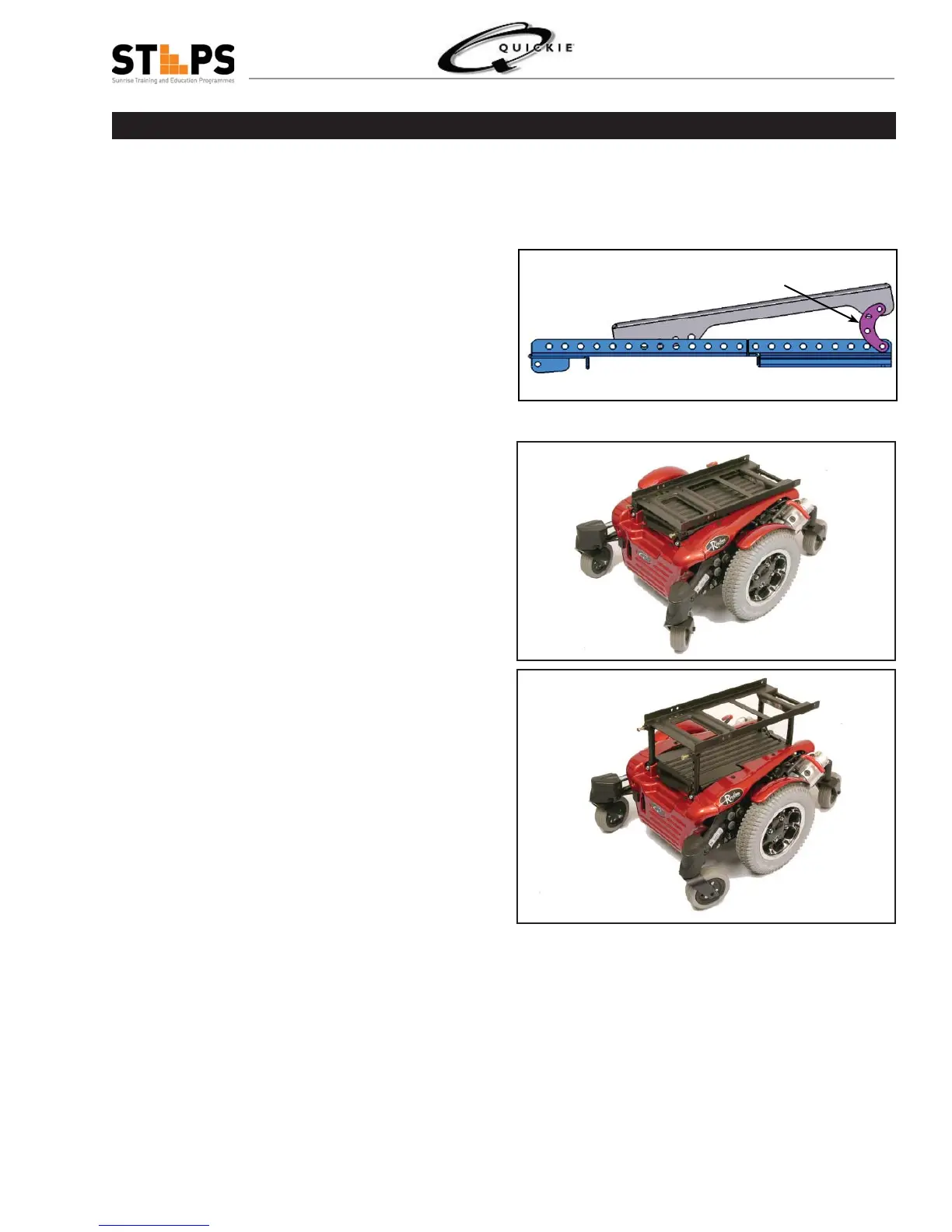

Permanent Tilt Adjustments
The Perfect Fit Seating System may be mounted with
0, 3, 6 or 9 degrees of permanent tilt. The system uses
a fi ller plate to mount the seat to the base. The tilt
angle may be adjusted as follows:
Remove the adjustment bracket (B) by removing 1.
the mounting hardware.
Reposition the bracket to desired angle and 2.
reinstall the mounting hardware into the mount.
Tighten the mounting hardware. 3.
B
Height Adjustments
The Perfect Fit Seating System contains 3 inches
of height adjustment. The seating system may be
adjusted up or down using the mounting post that
connects to the base. The seat height may be adjusted
as shown:
Remove the shroud from the wheelchair.1.
Locate the mounting posts that mount the seating 2.
system to the base.
Locate the bolts that secure that posts to the 3.
base.
Remove the bolts and move the posts up or down 4.
to adjust the height.
Replace the mounting bolts.5.
Fig 3.87
Fig 3.88
Fig 3.89
