Quickie Groove User Manual

40©2006 Sunrise Medical
QUICKIE ELECTRONICS SECTION
QR3 – 3 Button Rehab Control
SUNRISE PART # 020012•
Works with all Quickie Rehab Motor Controls.•
Mode Select, On/Off and Horn Buttons only.•
Program system through programming port •
in front of hand control, or through any other
available Bus port.
Programming via HHP or Quickie iQ (PCSS).•
LED Indicators for Mode Status, Mode •
selection,
Seating function and Battery SOC.•
Keyless Lock Mode•
Sleep and Power Off Modes•
“Switch” Joystick option with Latched control.•

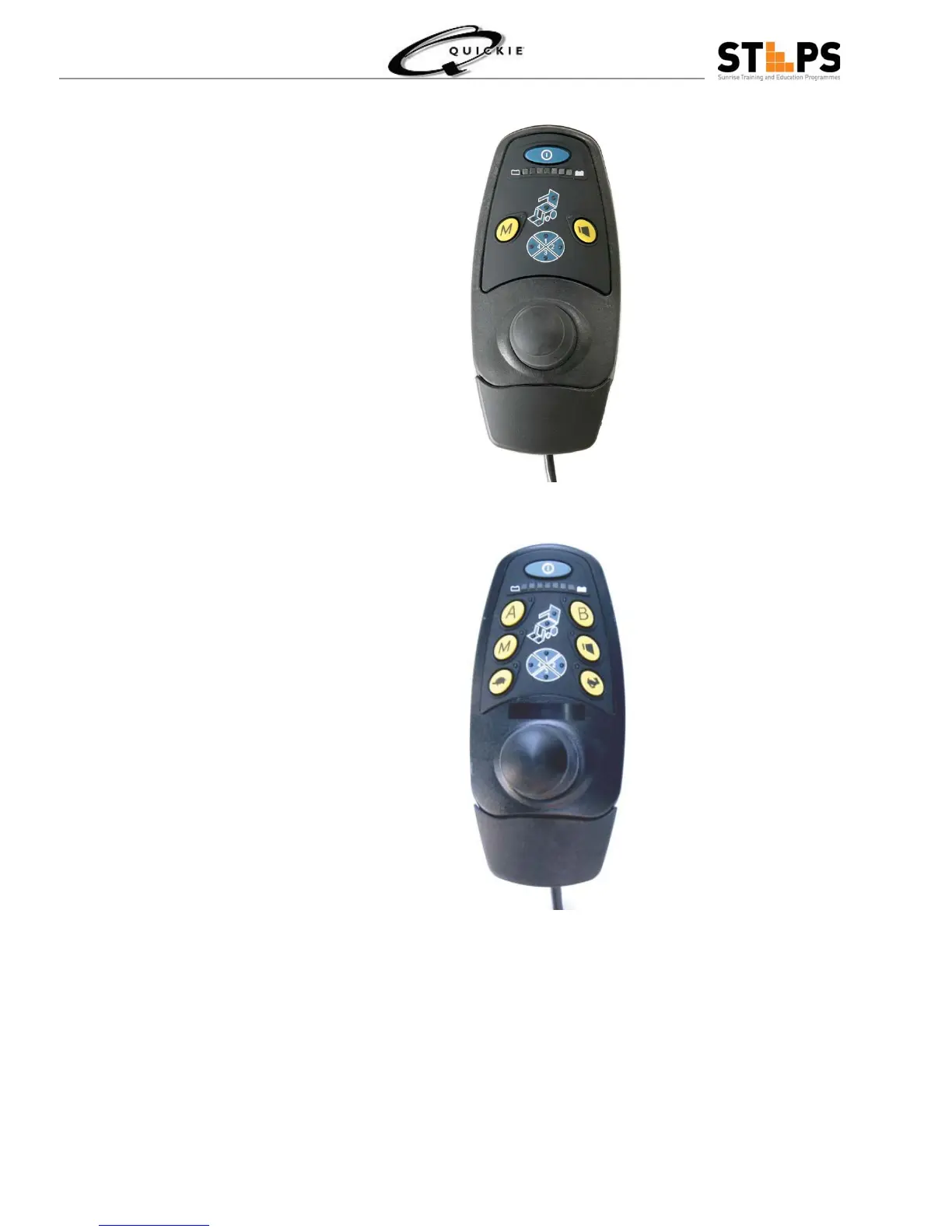

Fig 2.4.1
Fig 2.4.2
QR7 – 7 Button Rehab Control
Works with all Quickie Rehab Motor Controls.•
Program system through programming port •
in front of hand control, or through any other
available Bus port
Programming via HHP or Quickie iQ (PCSS)•
LED Indicators for Mode status, Mode •
selection
Seating function and Battery SOC•
Keyless Lock mode•
Sleep and Power Off modes•
“Switch” Joystick option with Latched control•
5 assignable buttons and one assignable •
jack port on hand controls with ports – each
assignable button can be programmed for two
distinct functions using either HHP or Quickie iQ
(Fig.2.4.3 shows using Quickie iQ to program
functions)
Sunrise P/Ns
020012
Basic QR3 replacement
104959
Basic QR3 service kit
020021
QR3 w/ 1/8” phone jackse-
placement
104960
QR3 w/ 1/8” phone jacks
service kit
020022
QR3 w/ toggle and speed pot
replacement
104964
R3 w/ toggle and speed pot
service kit
Sunrise P/Ns
020010
Basic 7 button hand control
replacement
104965
Basic 7 button hand control
service kit
020017
7 button hand control w/ 1/8
inch phone jacks replacement
104966
7 button hand control w/ 1/8
inch phone jacks service kit
020018
7 button hand control w/ toggle
switch for mode and speed pot
replacement
104968
7 button hand control w/ toggle
switch for mode and speed pot
service kit
