Quickie Groove - Manual Back Rest Adjustment

78©2006 Sunrise Medical
SEATING SECTION
Two versions of the manual back adjustment are
available, the Adjustable Integrated Back and the
Manual Recline to 40 Degree Back.
To adjust the Adjustable Integrated Back, complete the
following procedures:
Locate the 16 mm adjusting nut on the rear •
bottom of the back.
Using a 16 mm wrench, adjust the back to the •
desired angle.
Manual Recline to 40 Degree Back
To adjust the Manual Recline Back, complete the
following procedures:
Locate the adjustment knob on the rear bottom •
of the back.
Rotate the knob to achieve the desired back •
angle.

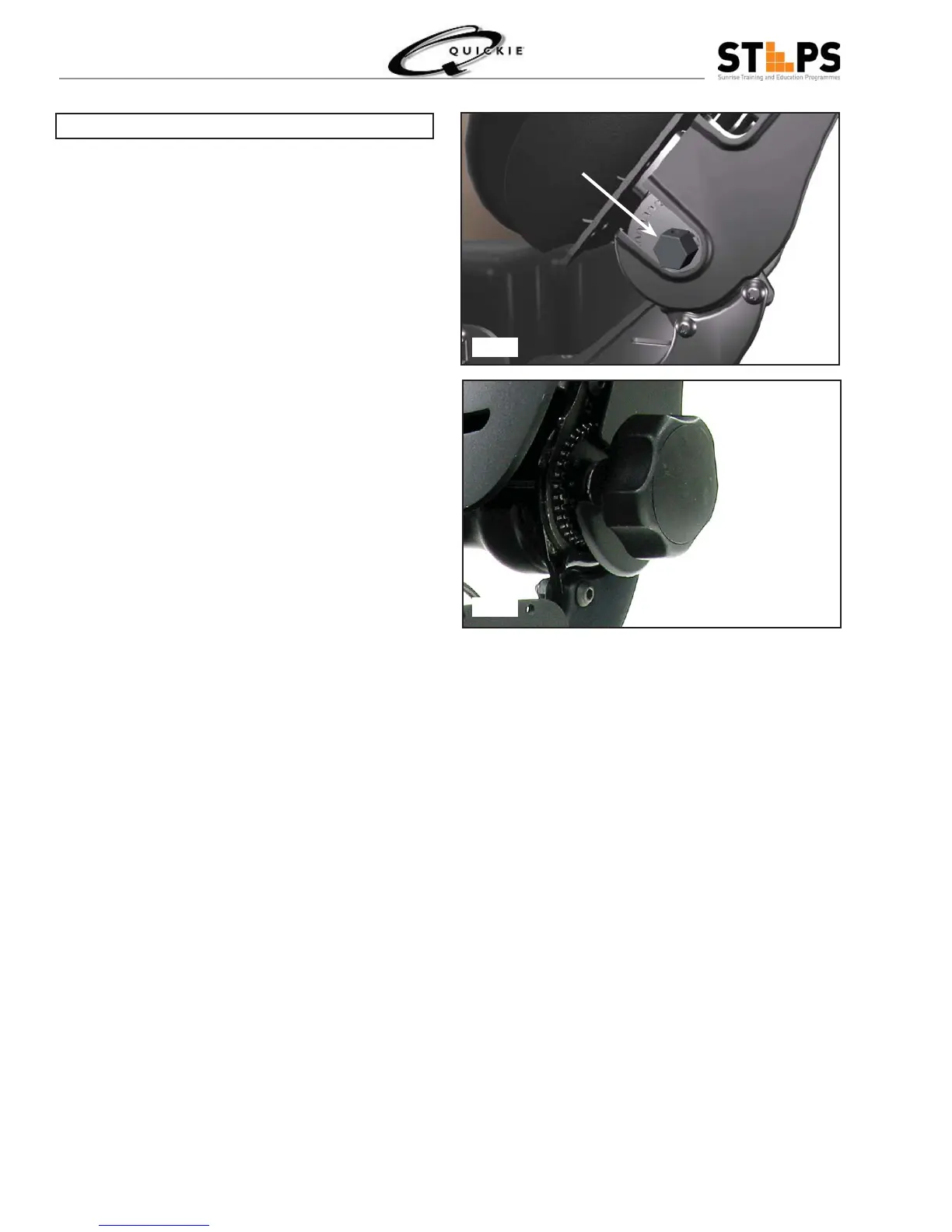

Manual Back Rest Adjustment
Fig 3.24
Fig 3.25
