Quickie Groove User Manual

115
©2006 Sunrise Medical
SEATING SECTION
Shear Actuator Removal
In order to remove the Shear Actuator, the Gas Strut
and Recline Actuator must be removed. Refer to the
Recline Actuator Removal section in this tech manual.
Once the Recline Actuator is removed, complete 1.
the following steps to remove the shear actuator.
Unplug the shear actuator by disconnecting the 2.
6-pin connector (Fig 3.125).
Using a 7/16” open-end wrench and a 3/16” hex 3.
wrench, remove the top and bottom mounts.
Lift the actuator out of the back shroud by pulling 4.
the top mount out towards the back of the chair,
and then remove the Shear Actuator from of the
bottom mount.
Reverse the process to reinstall a new Shear Ac-5.
tuator. The part number is 012038 (Fig 3.126).

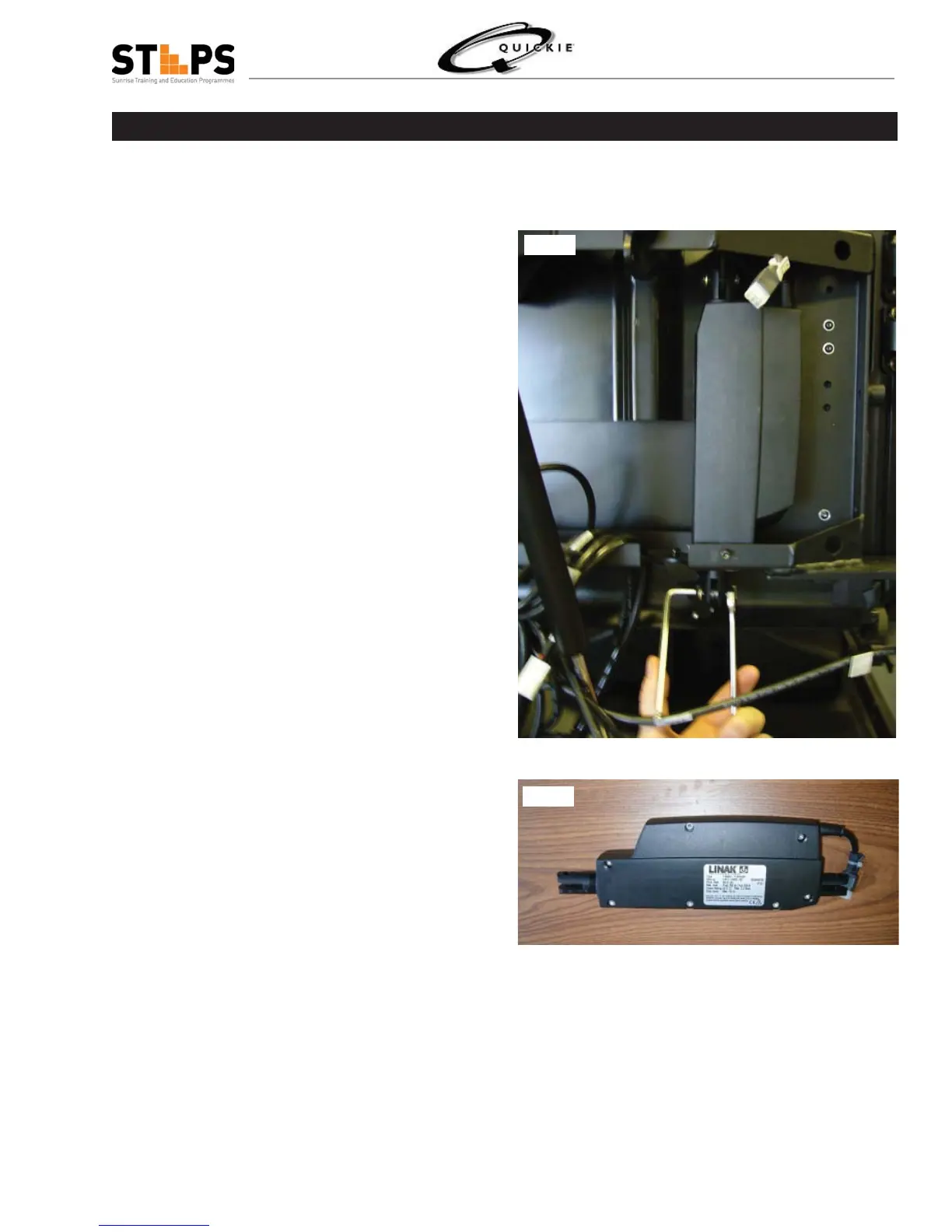

Fig 3.125
Fig 3.126
Shear Actuator Removal
