85
©2006 Sunrise Medical
SEATING SECTION

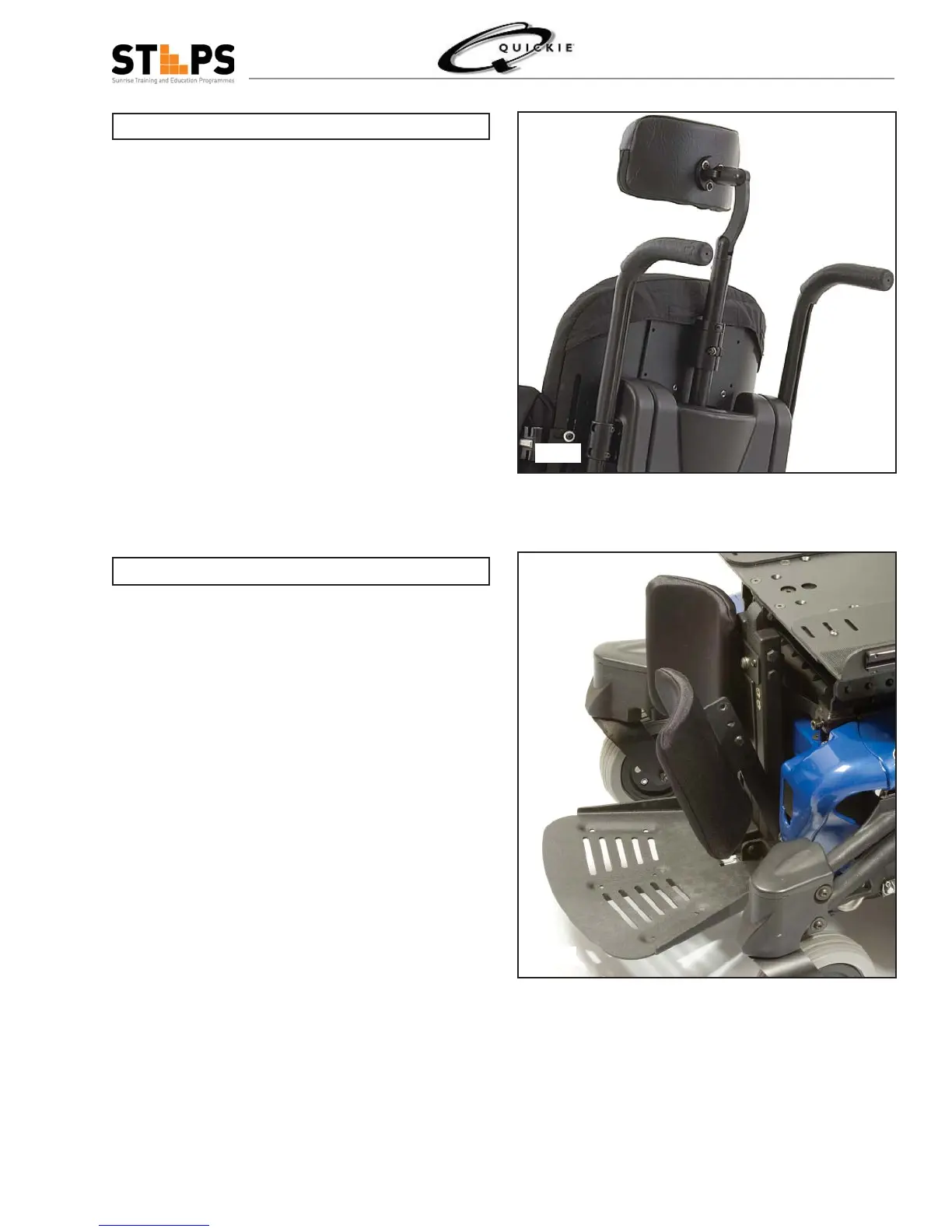

Head rests come in different styles. Several •
third party head rests such as Whitmyer, Otto
Bock and Jay may be used.
Mount them to the seat back mount as •
illustrated.
Adjust the head rest by sliding it up and down, •
as well as rotating it in its mount.
Adjusting the Center Mount Foot Rest.
Calf Pad adjustment: Remove mounting bolt •
and nut. Move Calf Pad to desired location and
remount.
Calf Pad angle adjustment: Loosen mounting bolt •
and nut, adjust angle and tighten hardware.
Foot Plate angle adjustment: Loosen bottom •
bolt and locknut, move bolt in or out to set
desired angle. Retighten bolt and locknut.
Footplate height adjustment: Tilt seating system •
back, remove two lower bolts and locknuts and
adjust to desired height. retighten hardware.
Mounting and Adjust Head Rests
Center Mount Foot Rest
Fig 3.46
Fig 3.47
