Quickie Groove User Manual

99
©2006 Sunrise Medical

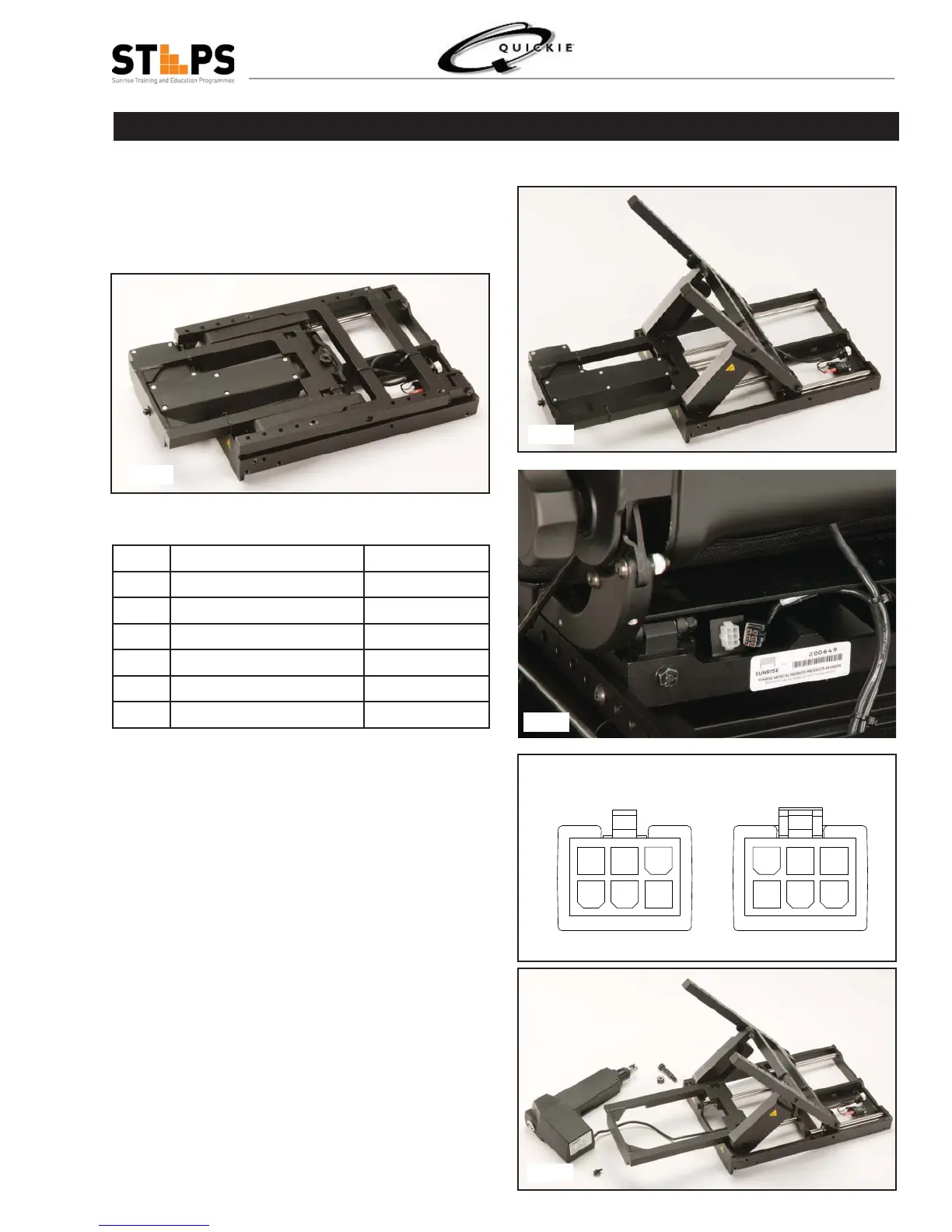

SEATING SECTION
Tilt System
50 degrees of tilt. •
Linak Actuator. •
Power Modules
1
1
22
33
665544
Pin 1 Motor + Brown
Pin 2 Encoder Red
Pin 3 Ground Black
Pin 4 COT Switch N/A
Pin 5 Motor - Blue
Pin 6 24 Volt Switched Power N/A
When + 24 is connected to Blue/Motor+/Pin 5 •
and Ground is connected to Brown/Motor-/Pin 1
the actuator will extend and the tilt will go up.
When + 24 is connected to Brown/Motor+/Pin •
1 and Ground is connected to Blue/Motor-/Pin
5 the actuator will retract and the tilt will go
down.
Fig 3.79
Fig 3.80
Fig 3.81
Fig 3.82
Fig 3.83
The Linak actuator is replacable in both lift and tilt
modules (Fig 3.83).
Tilt Plug
Harness
