38©2006 Sunrise Medical
POWER BASE SECTION
Replacing Shrouds
Rhythm

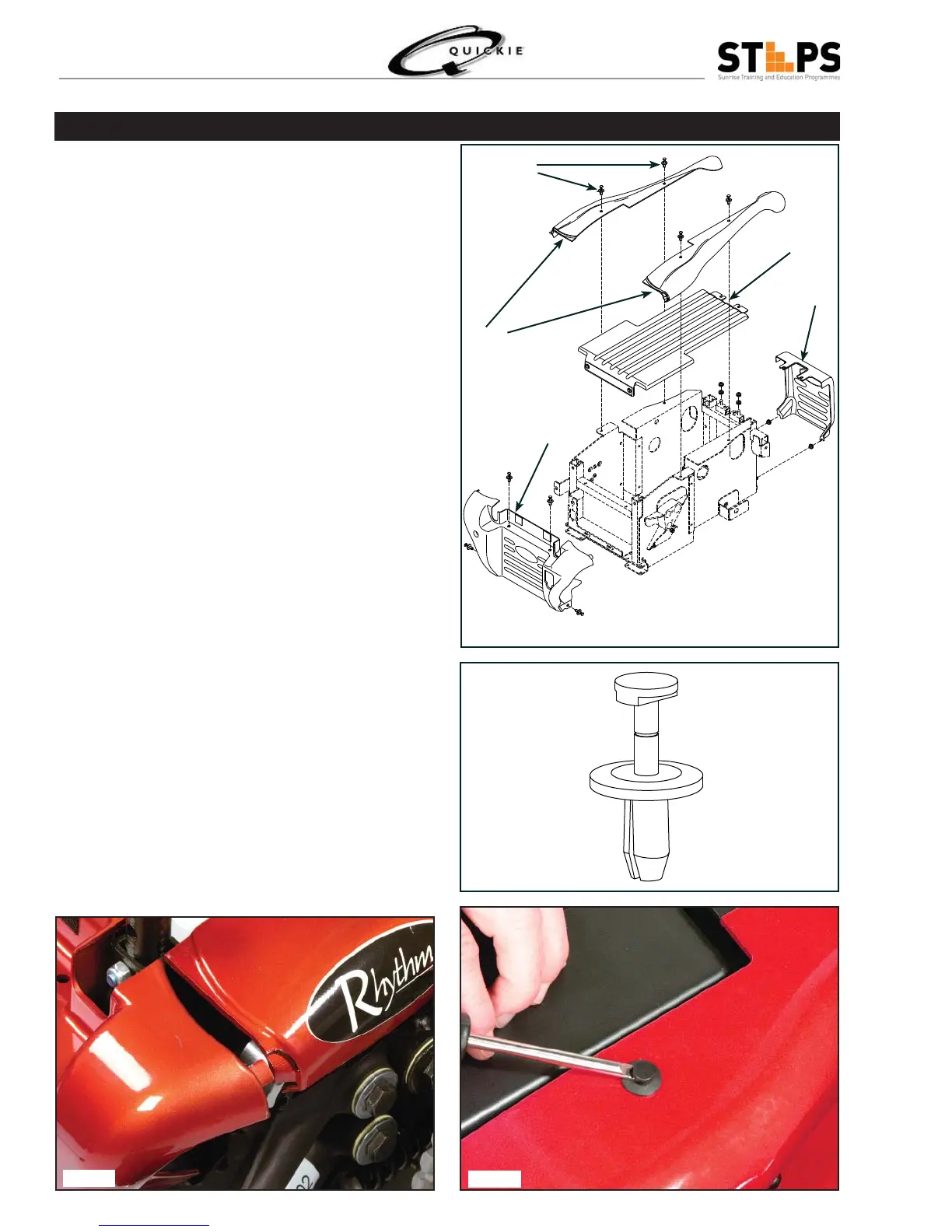

The Front (B) and Side shrouds (A) are held •
in place by reusable shroud fasteners (C & Fig
1.71).
To remove the fasteners, insert a fl at blade •
screw driver under the slot of the fastener
center piece and pry up. (Fig 1.72)
The Battery compartment Lid (D) is removed •
by lifting up on the web handle and then pulling
forward.
The Rear Shroud (E) is removed by pulling the •
top of the shroud back then lifting off.
A
B
C
D
E
Insure tabs on front shroud are inserted into slots on
side shrouds during reassembly. (Fig 1.73)
Fig 1.70
Fig 1.71
Fig 1.72
Fig 1.73
