Quickie Groove - Creep Speed or Back Drive Issues

103
©2006 Sunrise Medical
SEATING SECTION
Locate the Recline Counter Reset Switch (CRS) 1.
mounted on the left seat hinge (Fig 9.90). Note:
this switch is Normally Open (NO) when the seat
is fully elevated, and closes as the seat-back
reclines.
Verify that the switch is not damaged and free to 2.
operate.
Locate the QMAC mounted on the back of the 3.
wheelchair(Fig 3.91).
Disconnect the 6-pin female connector (A) leading 4.
to the Recline port of the QMAC (Fig 3.92).

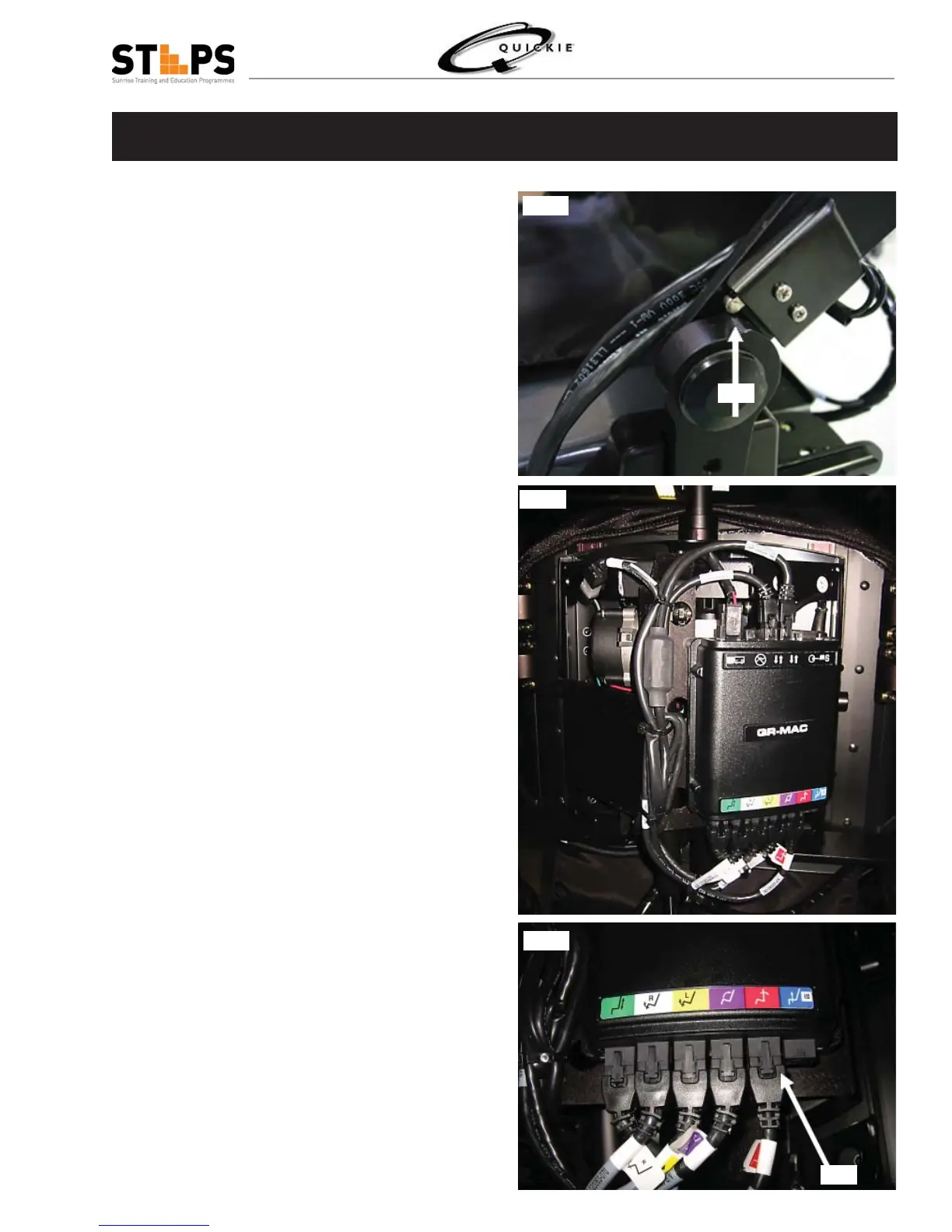

Fig 3.91
Fig 3.90
Fig 3.92
CRS
A
The wheelchair will only drive in Creep Speed, or the back will not drive to the
preprogrammed value
