Quickie Groove User Manual

75
©2006 Sunrise Medical
SEATING SECTION
Both the seat back and the seat pan width adjust
independently. To adjust either the seat back or seat
pan:
Locate the hardware securing the wings to the •
center pan of the Perfect Fit Seating System.
Note: Each hole on the back or seat pan allow
½ inch increments.
Determine the correct adjustment needed. •
Example, if the seat back is 16” wide and the
desired width is 17”, than each wing should be
moved ½” (one hole) outward.
Remove the hardware using the correct size •
Allen wrench.
Reposition the wing and reinstall the mounting •
hardware.
Note: A new back cushion may be needed after width
adjustment.
Manual Recline Back Height Table
Wing Back Height Bottom of Back from
Seat Pan
15” 15.5” – 18.5” .8” – 3.8”
17” 17” – 20” .5” – 3.5”
19” 19” – 22” .5” – 3.5”
21” 21” – 24” .5” – 3.5”
23” 23” – 26” .5” – 3.5”
25 25” - 28” .5” - 3.5”
Bottom of
Back from
Seat Pan
Seat Back
Seat Pan
Seat Back Height
Power Recline Back Height Table
Wing Back Height Bottom of Back
from Seat Pan
15” 17.5” – 20.5” 3.0” – 6.0”
17” 19” – 22” 2.6” – 5.6”
19” 21” – 24” 2.6” – 5.6”
21” 23” – 26” 2.6 – 5.6”
23” 25” – 28” 2.6 – 5.6”

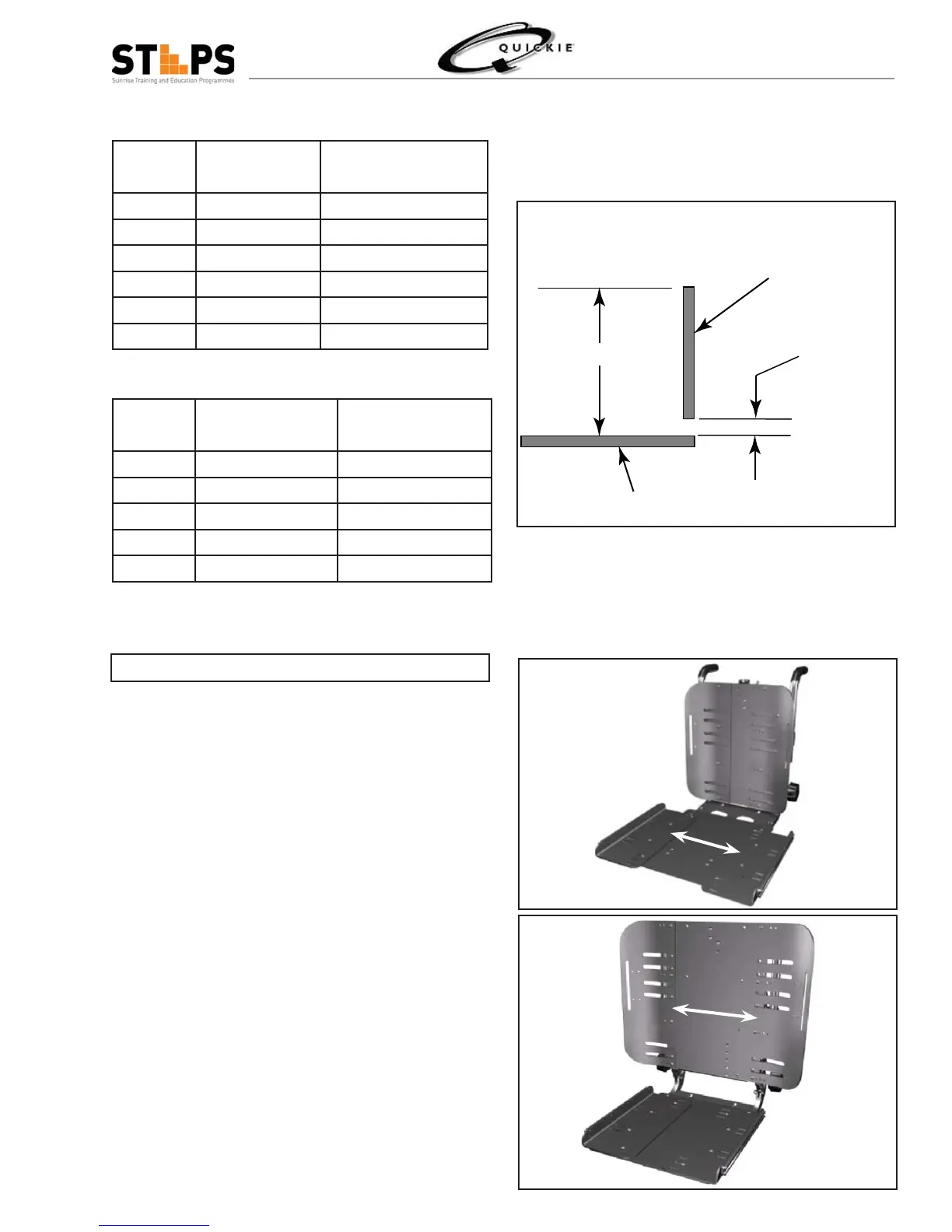

Seat Back and Seat Pan Width Adjustments
Fig 3.15
Fig 3.16
Fig 3.17
