RHYTHM SERVICE MANUAL
2009
PAGE 5.4
SUNRISE MEDICAL
Service for assistance.
1. Locate the 6-pin connector (A) at the rear
of the tilt (fi g. 5.4.1). Make sure it has not been
unplugged
2 Locate the creep microswitch (B) mounted
at the rear of the actuator (fi g. 5.4.1). The creep
switch may be seen from the top of the seating
system on the right rear of the actuator. It may be
necessary to remove the seat pan to access the
switch.
3 Manually operate the creep micro-switch
while observing the hand control or Omni for the
turtle symbol to go on and go off with the micro-
switch operation.
If the symbol changes, the problem is in the
programming. Contact Sunrise Medical Technical
5. Locate the 6-pin connector (A) at the rear
of the tilt (fi g. 5.4.1).
6. Disconnect the harness from the control
module.
8. Test the micro-switch wiring by performing the following test.
a. Ensure that the seat is in the full down position.
b. Use Multimeter and measure continuity between the indicated pins below on the 6-pin connecto
r
mounted on the tilt. When down the indication should be closed (fi g. 5.4.2). If it is open, replace
the micro-switch assembly. Refer to Tilt Actuator and Micro-Switch Removal section of this manual.
If the test passes, replace in this order:
a. Cable leading from tilt to control module.
b. Control module
Tilt with Recline: Refer to the recline section of this manual

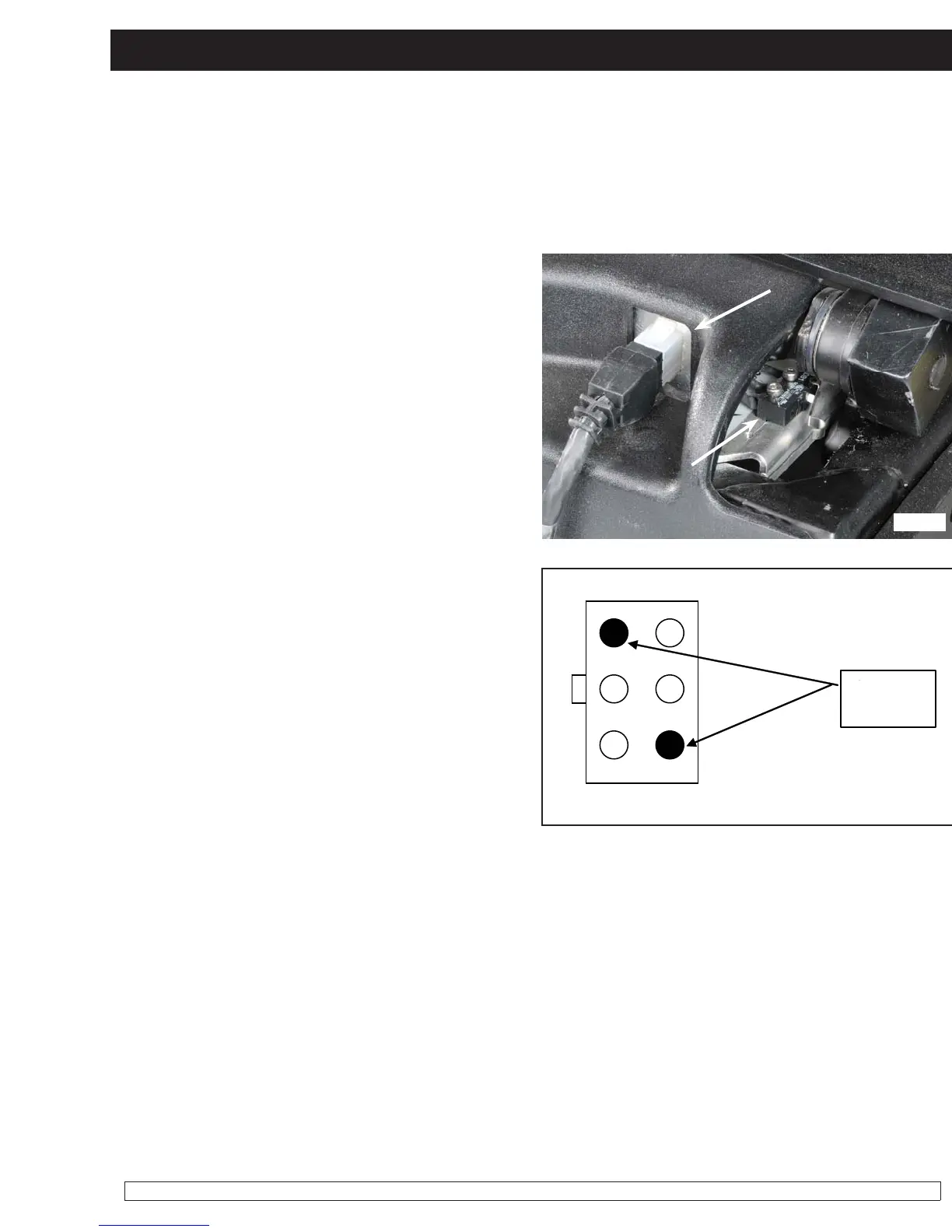

fig. 5.4.1
Troubleshooting Tilt
Section 5
A
B
Does the chair have powered seating? If so, the slow driving may be a result of an active inhibit from
the seating system. Start by identifi ng what seating compnents are on the chair. An inhibit can come
from either the power recline or power tilt system. Bring your tilt and recline to the upright position. I
f
the wheelchair is still in creep try to identify which component may be causing the inhibit
4. Lower the tilt system.
Open
Closed
fig. 5.4.2
A
