Quickie Groove - Seat Depth and Arm Rest Adjustments

111
©2006 Sunrise Medical
SEATING SECTION

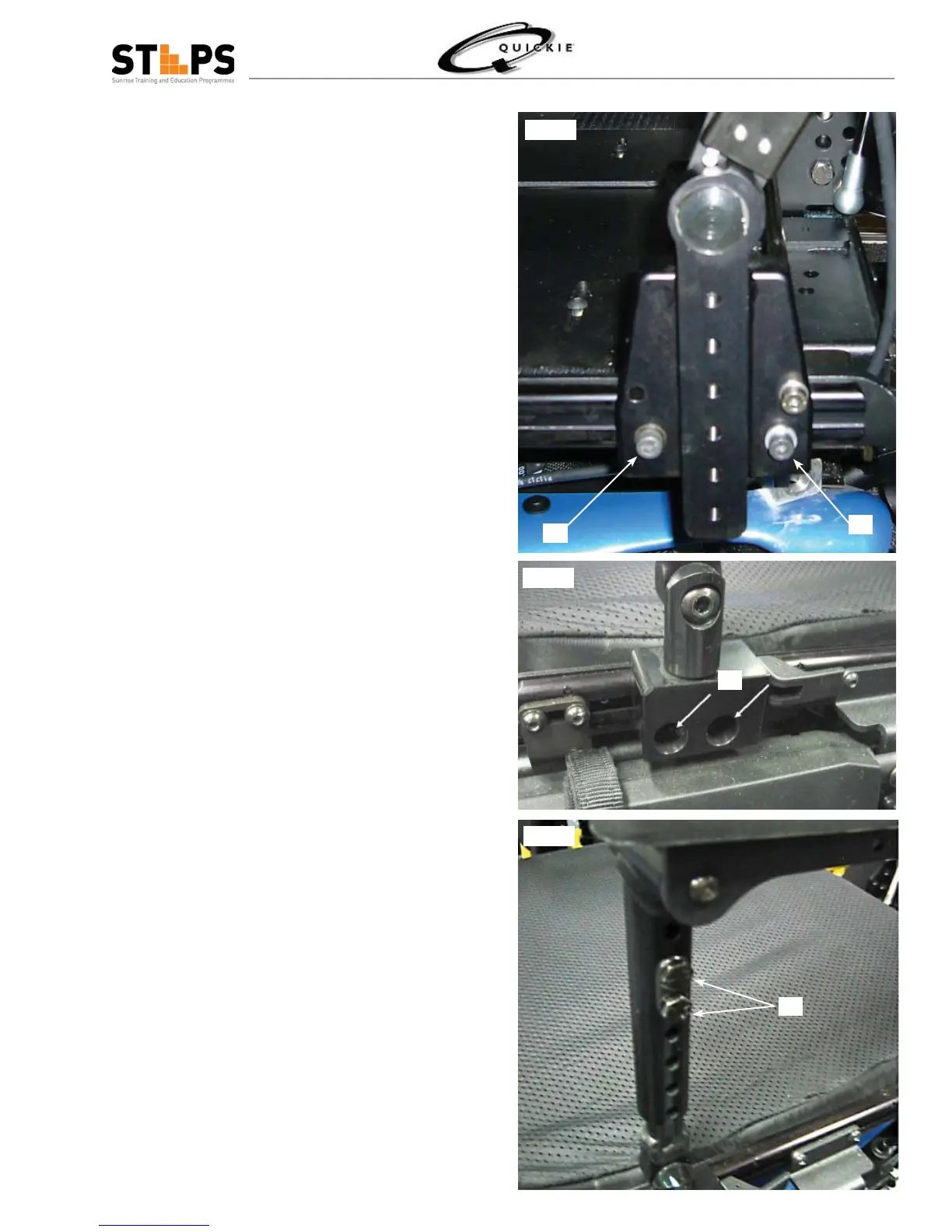

Seat-back depth is adjusted by moving the mount-7.
ing brackets to the front or rear in the seat-pan
track.
Loosen the two mounting bolts (C) and slide the 8.
bracket to the desired location (Fig 3.112).
To adjust the arm rest hanger, loosen the two 9.
mounting bolts (D) and slide the mount to the
desired location (Fig 3.113).
To adjust the arm rest height, remove the two 10.
bolts(E), raise or lower the arm rest, and reinstall
the bolts (Fig 3.114).
Fig 3.112
C
C
D
Fig 3.114
E
Fig 3.113
