RHYTHM SERVICE MANUAL
PAGE 5.7
2009SUNRISE MEDICAL
R-net Fault Codes cont.
Section 5
Warning: Use caution in the next step. Do not short the leads of the Multimeter together
or damage may occur to the control module.

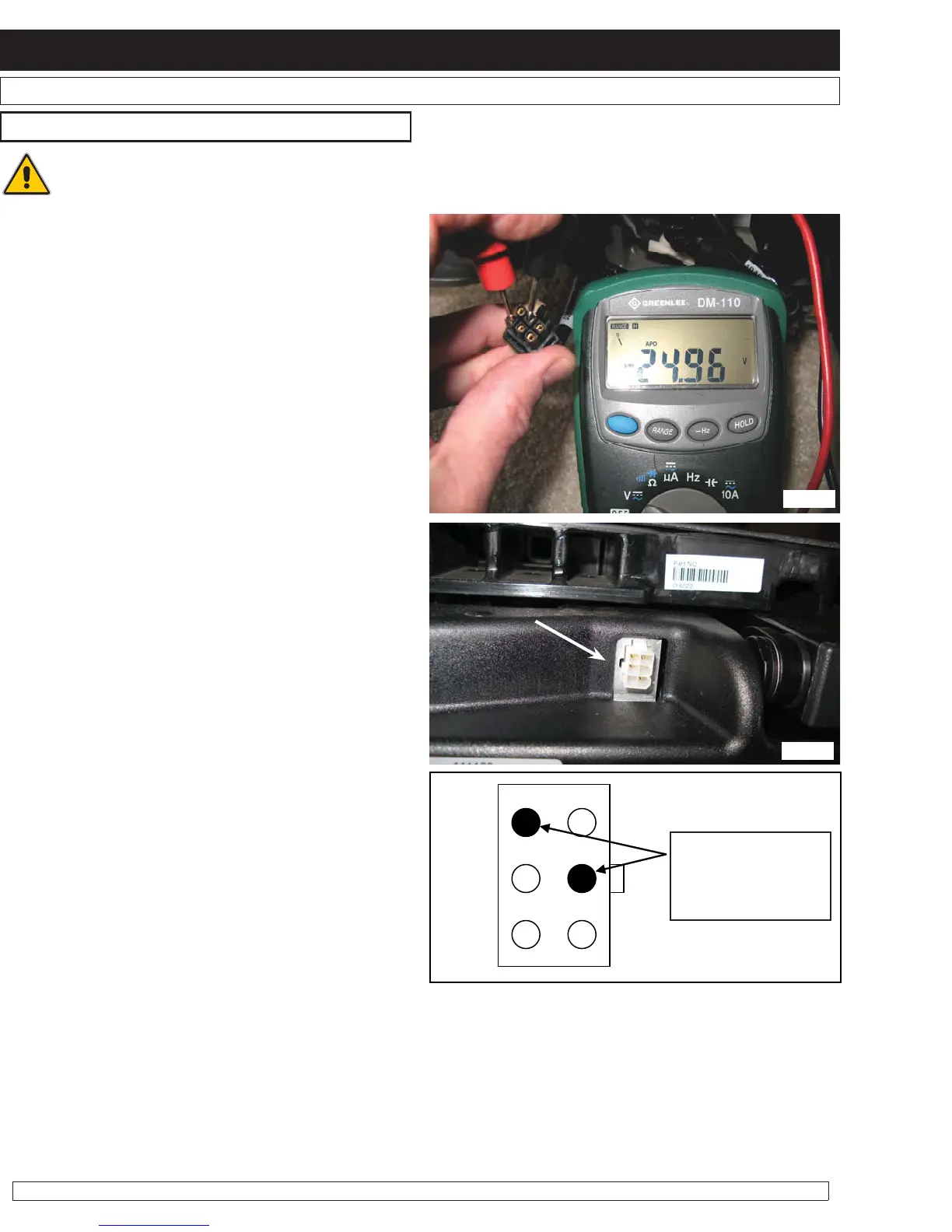

5. At the 6-pin connector on the cable leading
to the control module, verify that battery voltage
is present between the indicated pins (fi g. 5.7.1).
Note: The polarity of the voltage is not important
since it is reverses when the opposite direction is
selected.
6. If voltage is not present, replace the cable
leading to the control module. Retest with new
cable. If the new cable does not correct the
problem, replace the control module.
Voltage to
the actuator
7. At the 6 pin connector (fi g. 5.7.2) on the
rear of the tilt, check to see if the actuator is
capable of tilting if power is applied directly to the
actuator (fi g 5.7.3). Or, proceed to step 8.
fig. 5.7.1
fig. 5.7.2
fig. 5.7.3
Tilt Will Not Operate - cont.
Apply 12 volt
power supply to the
Actuator connector
pins shown.
To Next Page
