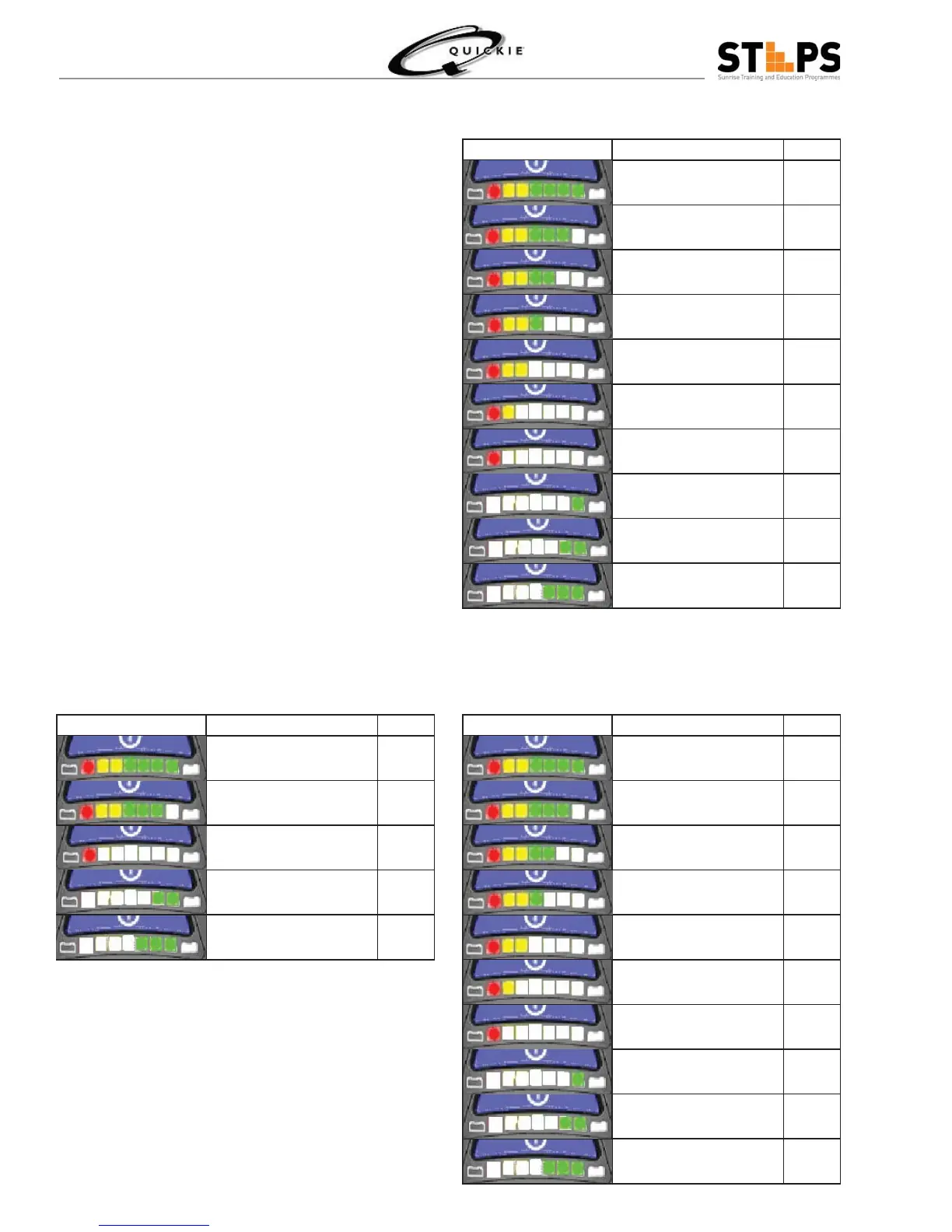

QUICKIE ELECTRONICS SECTION
LED illumination state Error Description Priority *
Actuator Internal Error 2
Module Communication Error 3
Actuator Hex Switch not
Neutral at Power On
8
Actuator Home Switch not
Neutral at Power On
6
Actuator Encoder Error 4
Actuator Over Current Error 5
Battery Under Voltage Error
or Battery Over Voltage Error
9
Actuator High Temperature
Warning
10
Invalid System Confi guration
Error
1
Drive Lockout External
Source
7
Errors are indicated by the LED associated with the
Mode Button Flashing GREEN.
Seating Mode Errors
LED illumination state Error Description Priority *
QR-MAC Internal Error 2
Module Communication Error 3
QR-MAC Hex Switch not
Neutral at Power On
8
QR-MAC Home Switch not
Neutral at Power On
6
Actuator Encoder Error 4
Actuator Over Current Error 5
Battery Under Voltage Error
or Battery Over Voltage Error
9
QR-MAC High Temperature
Warning
10
Invalid System Confi guration
Error
1
Drive Lockout External
Source
7
QR-MAC Errors
LED illumination state Error Description Priority *
ECM Internal Error 2
Module Communication Error 3
Battery Under Voltage Error
or Battery Over Voltage Error
9
Invalid System Confi guration
Error
1
Drive Lockout External
Source
7
ECM Errors
