Rewinder
124 Kiaro! 200 User Guide
6 Feed the media under the rewinder dancer arm and up around the empty label
core. The inside edge of the media should be aligned squarely with the inner flange
[2].
7 Fasten the end of the media to the core with tape [3]. Ensure the printed side faces
out.
8 Adjust the spring collar [5] on the dancer arm. Slide the collar just before it contacts
the media. Label media should be able to move smoothly without being hindered
by the collar.
9 Reinstall the outer flange [1] and then turn the mandrel adjustment knob [6]
clockwise to tighten the mandrel.
10 Turn the power switch [4] on the rewinder to the on position.
When the dancer arm is in a lowered position, the rewinder mandrel will rewind
media as needed. Do not turn the mandrel by hand to rewind the media. The media

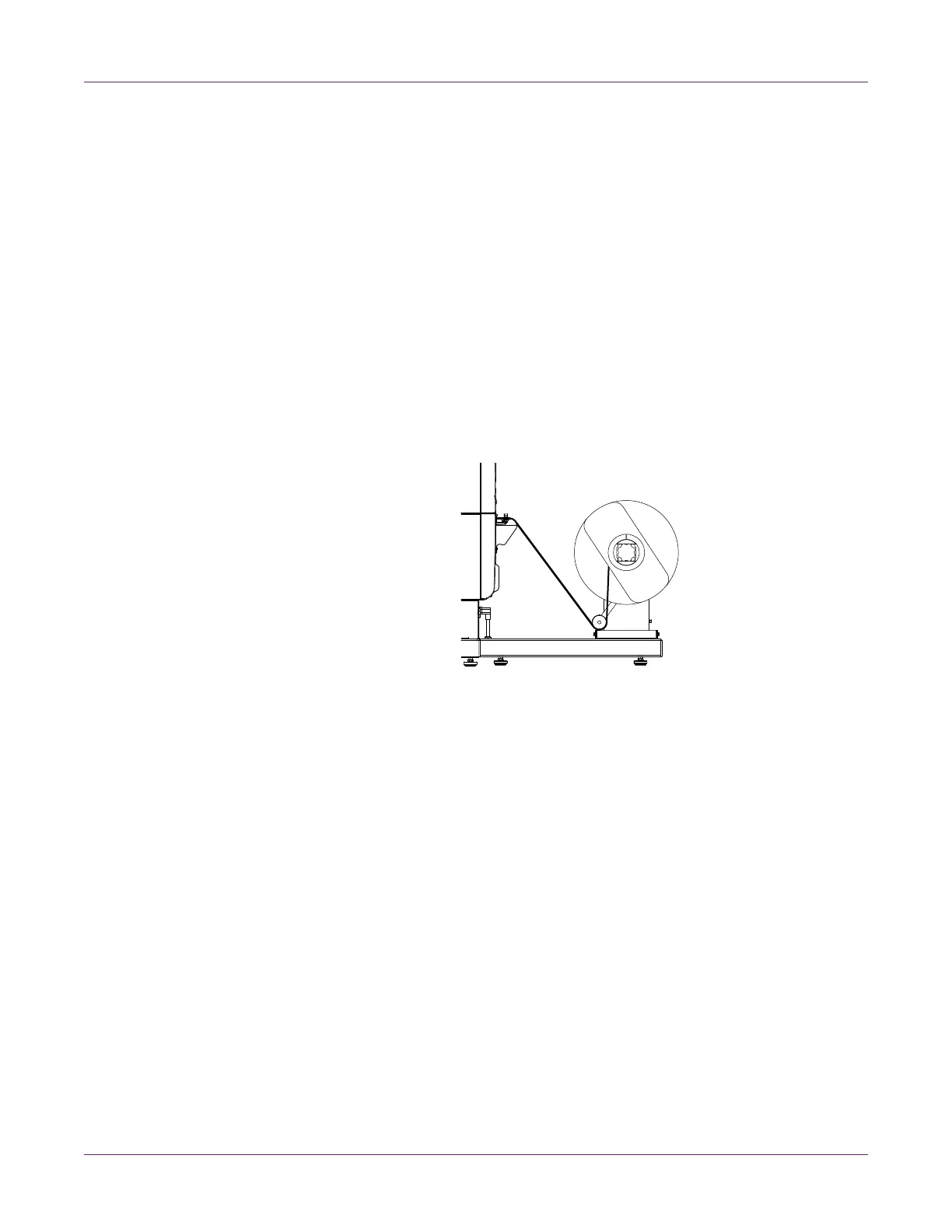

rewind path is illustrated below.
11 Resume the print job on the Kiaro! 200. The rewinder will rewind media
automatically as needed. The rewinder will stop when the printer stops advancing
media or when the printer is out of media.
