Rewinder
Kiaro! 200 User Guide 125
Adjusting Rewinder Alignment
As labels exit the printer, the edge of the label media should be squarely aligned with
the inner flange on the rewinder. If needed, you can adjust the position of the rewinder
to ensure alignment with labels as they exit the printer.
Note: In most cases, rewinder accessories are aligned at the factory and will not
require adjustment.
1 Ensure the power switch on the rewinder is in the off position.
2 Start a print job. Pause the job when the printed media advances slightly past the
rewinder.

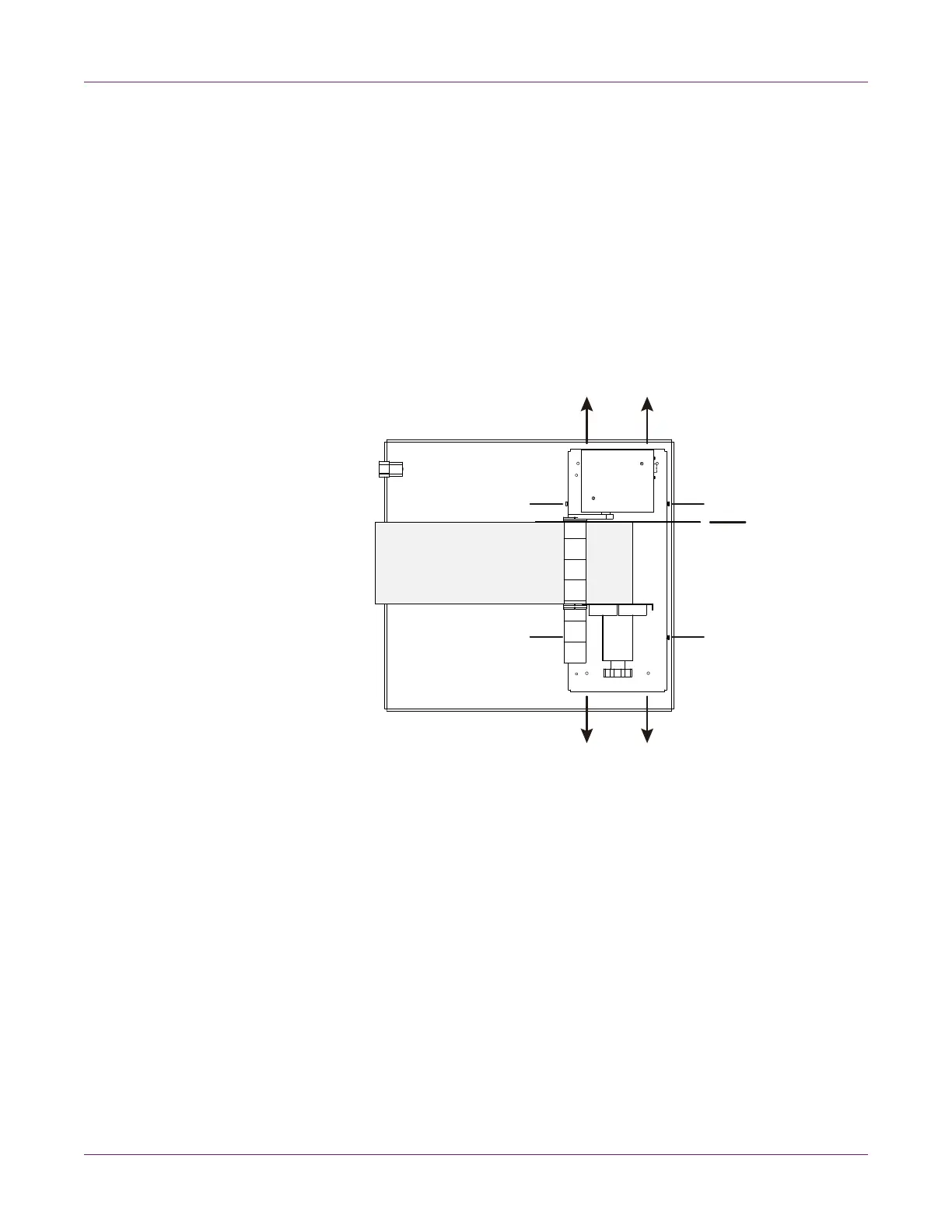

Refer to the following top-view illustration during the alignment procedure.
3 Use a 2.5 mm hex key to loosen the four rewinder screws [1]. Do not remove these
screws.
4 Slide the rewinder in the adjustment directions indicated by the arrows as needed.
The edge of the media [2] should be squarely aligned with the inner flange [3].
5 When the adjustment is complete, tighten the four screws [1] to secure the
rewinder in place.
6 Repeat the rewinder setup process. Rewinding Labels
