Quick Start Guide
Kiaro! 200 User Guide 11

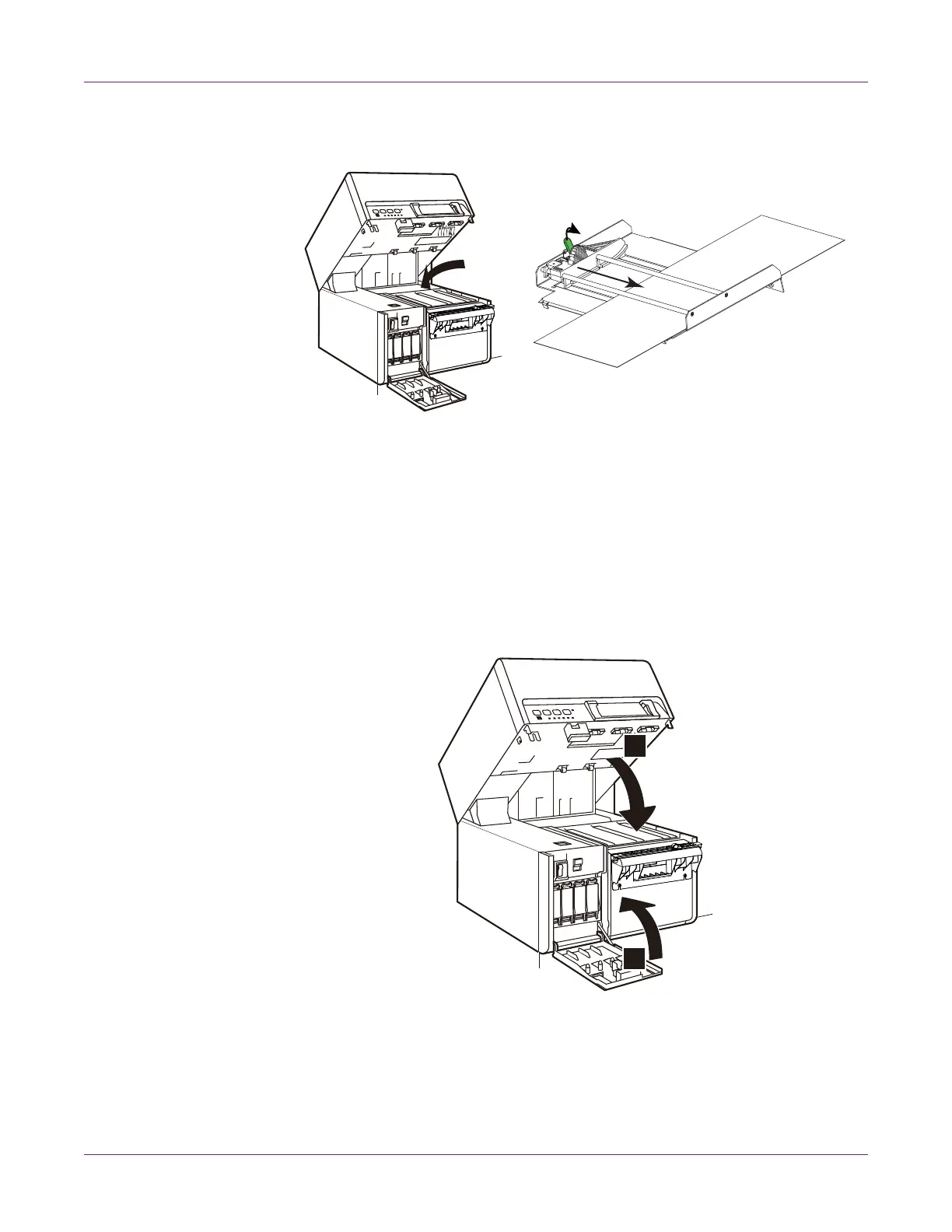

11 Adjust the input guide inside the upper unit. Press the green lever and slide the
guide just before it contacts the media. Then release the green lever.
Label media should be able to move smoothly without being hindered by the input
guide.
Note: The guide should be positioned to just touch the edge of the liner and not
cause exposed liner to curl on either side.
12 Pull the media until it advances slightly past the manual cutter.
13 If your printer model does not have a roll cover, turn the mandrel adjustment knob
[3] clockwise to tighten the mandrel.
14 Close the upper unit and then close the ink tank door.
1
1
2
To Next Page
