Configuration via Telnet

WinLink User and Installation Guide Version 1.750 5-100

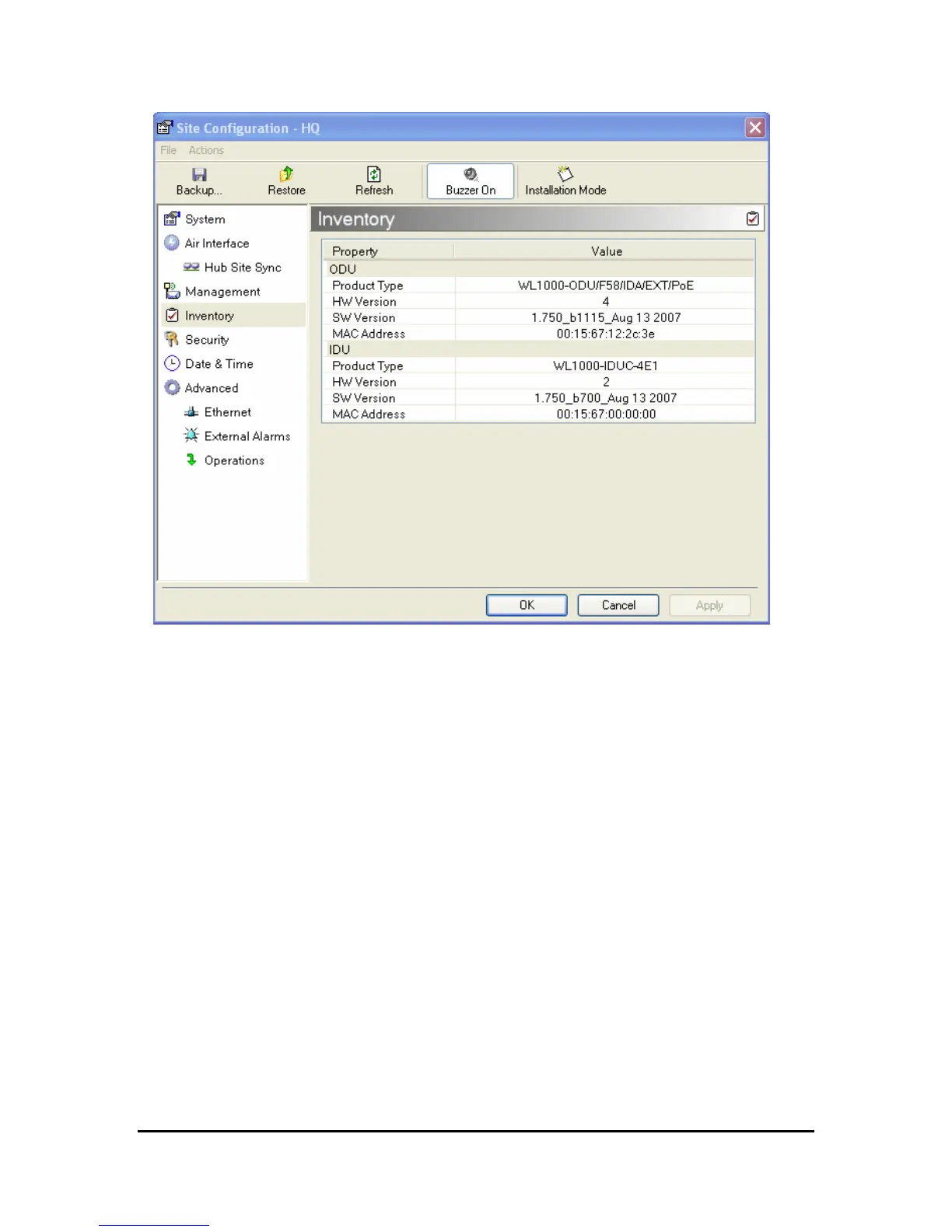

Figure

5-22: Inventory Screen

Configuration via Telnet

A Telnet terminal can be used to configure and monitor the ODU on

site. Remote configuration cannot be performed via Telnet.

The login username/password is identical to the communities' strings;

Read allows display only, Read/Write allows display and set

commands.

Table

5-2

depicts the Telnet commands that are supported:
