Appendix E: Hub Site Synchronization
WinLink User and Installation Guide Version 1.750 13-152

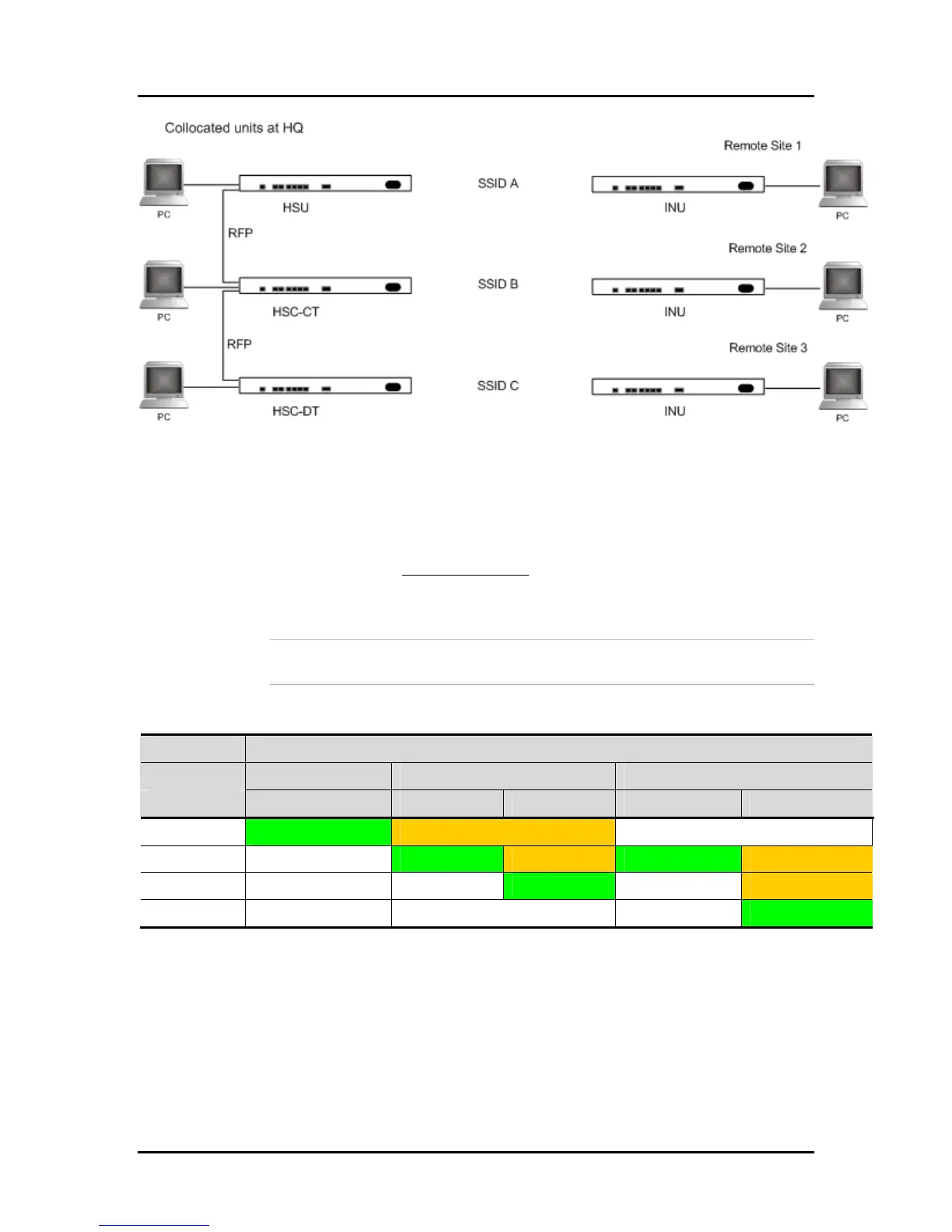

Figure
13-5: HSS Typical Application
Radio Frame Pattern Table
The synchronization pulse is termed Radio Frame Pattern (RFP). Four
RFP pulses are available. The RFP is selected depending on the type of
services that the complete system
is to provide - see the table below.
Select the RFP that gives you the Best Fit for the system services and
select the Channel Bandwidth accordingly.
The RFP must be the same for each link within the collocated system.
Table
13-2: Radio Frame Pattern Table
Channel Bandwidth
20 MHz 10 MHz 5 MHz
RFP TDM & EDO TDM EDO TDM EDO
A Best Fit --
B -- Best Fit Best Fit
C -- -- Best -- Fit
D -- -- -- Best
HSS Link Configuration
For HSS-enabled units, the Hub Site Synchronization Settings dialog
box appears in the Link Configuration Wizard.
Note
