Chapter 2

Overview

WinLink™ 1000 System Components

WinLink™ 1000 point-to-point solution is made up of a number of key

components.

Typically, each side of the link comprises an Indoor Unit (IDU), an

Outdoor Unit (ODU) and an antenna. A CAT5e cable from the IDU to

the

ODU provides both Ethernet and Power. The link is managed via

the WinLink™ 1000 Manager application.

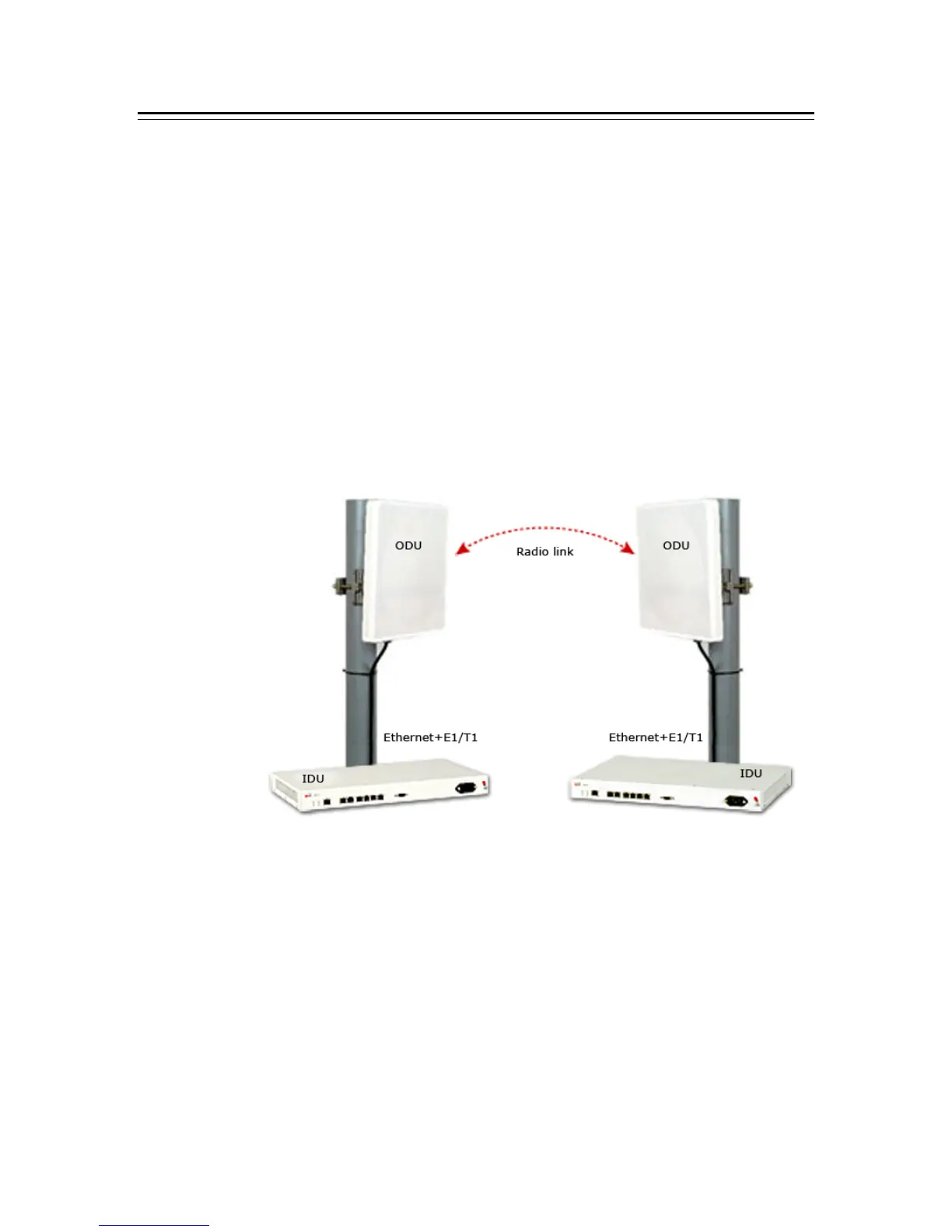

Figure

2-1: Example of Link Architecture
