Hardware Installation
PixelStor 5000 User Manual
Rev. 1, May 2013
4-71

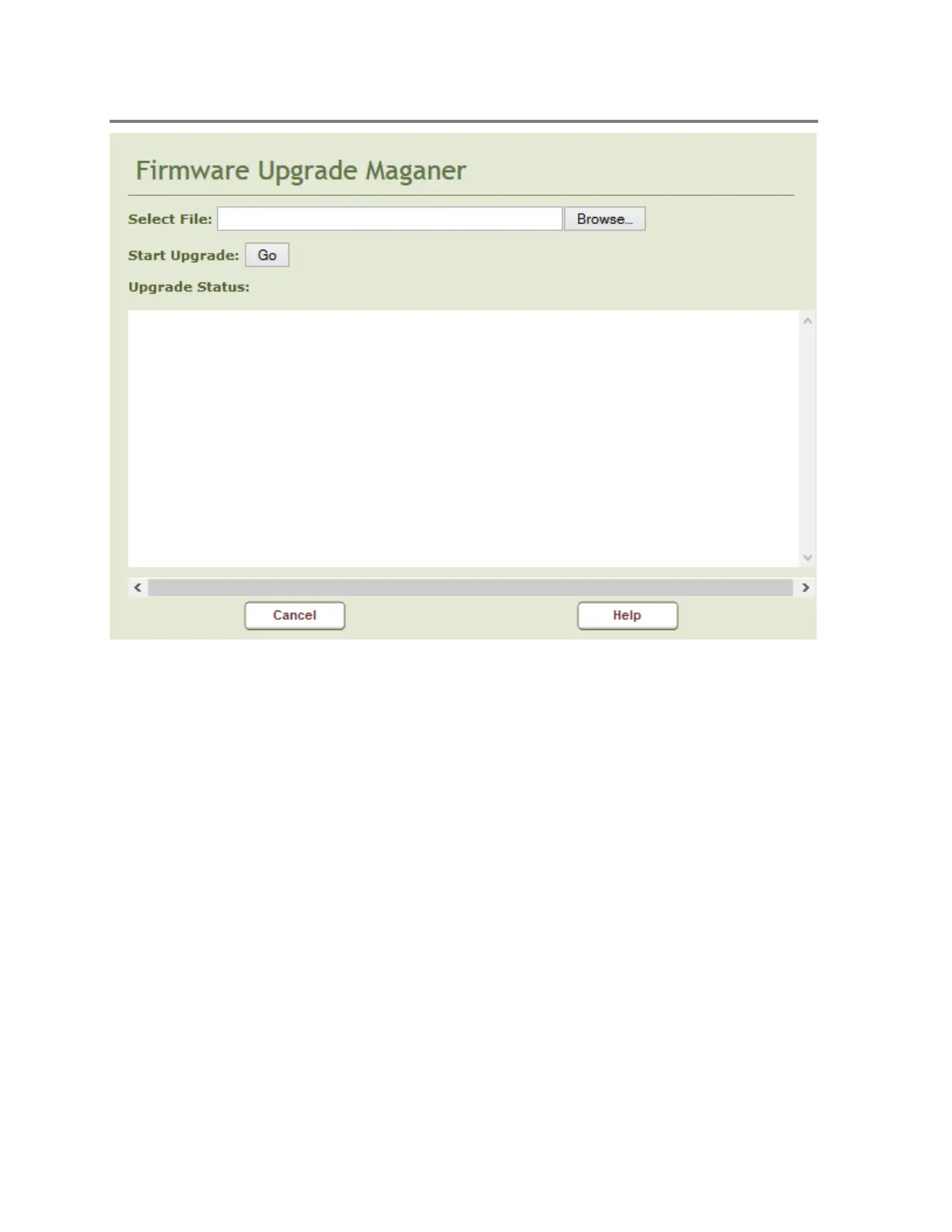

Figure 4-55 Firmware Upgrade Manager
4.3.14 SSD Cache Drive Configuration (EXPERIMENTAL)
Select a Primary Controller
Select the owner of this disk group.
Block size(KB)
Change block size in KB (64 ~ 8192)
Total Capacity
Total Capacity of the SSD Cache Drive
Hit Rate
Last measured Hit Rate of SSD Cache Drive
