1.5.4 LED Location and Information
The PixelStor 5000 is equipped with LED indicators for all major components of the system.
These LEDs provide visual cues to the status of each of these components.

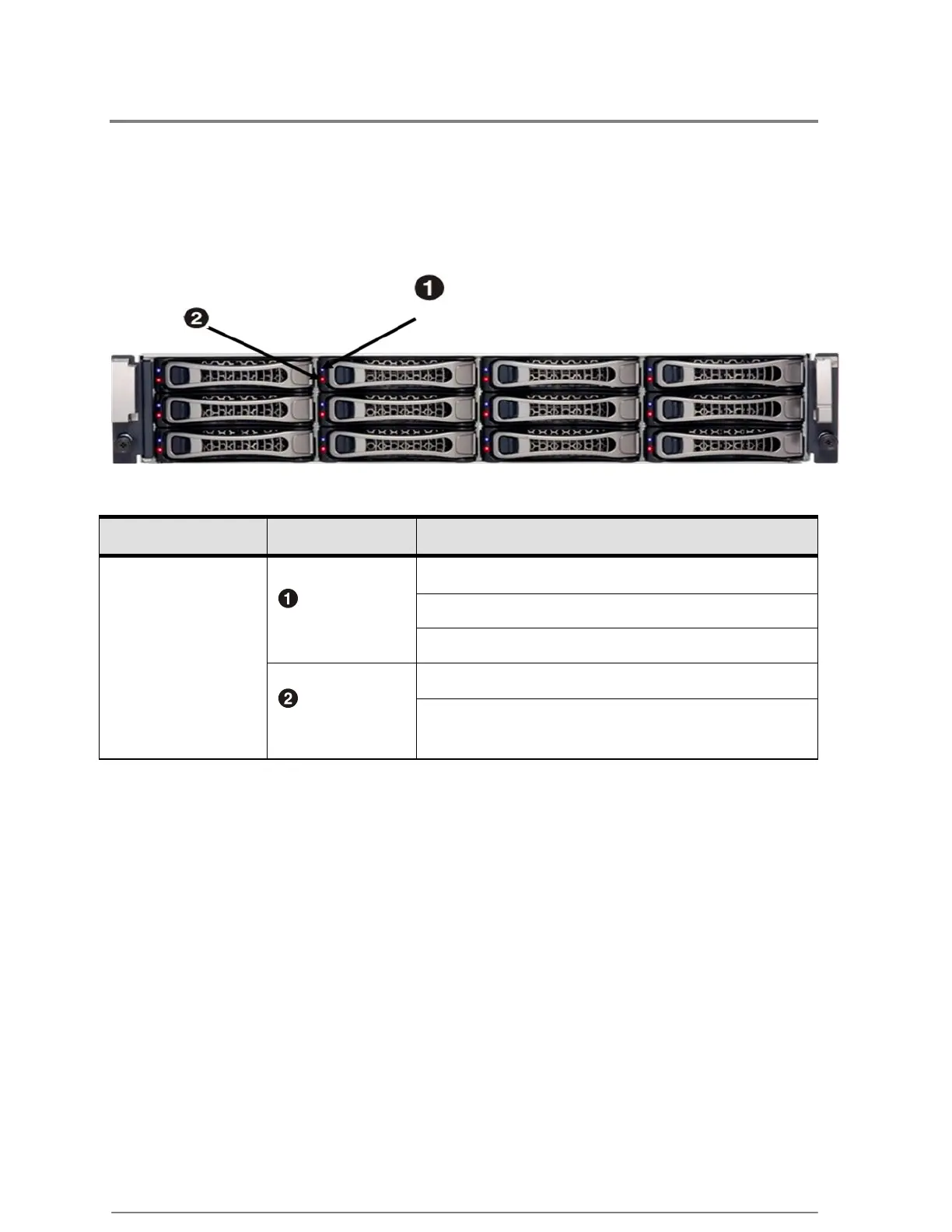

Figure 1-6 Front Panel
Type of LED
Color
Status
HDD Tray LEDs
Blue
(upper)
On: HDD present
Off: HDD not present
Blinking: HDD data access
Red
(lower)
On or Blinking (individually): Drive Faulty
On or Blinking (all 12 together): System
Component failure
Figure 1-7 HDD LED Status
-
