Rasilient PixelStor 5000 - Figure 3-2 Installing the Mounting Brackets in the Rack; Figure 3-3 Secure the Mounting Brackets

Hardware Installation
PixelStor 5000 User Manual
Rev. 1, May 2013
3-3
Install the brackets as shown in the example below.

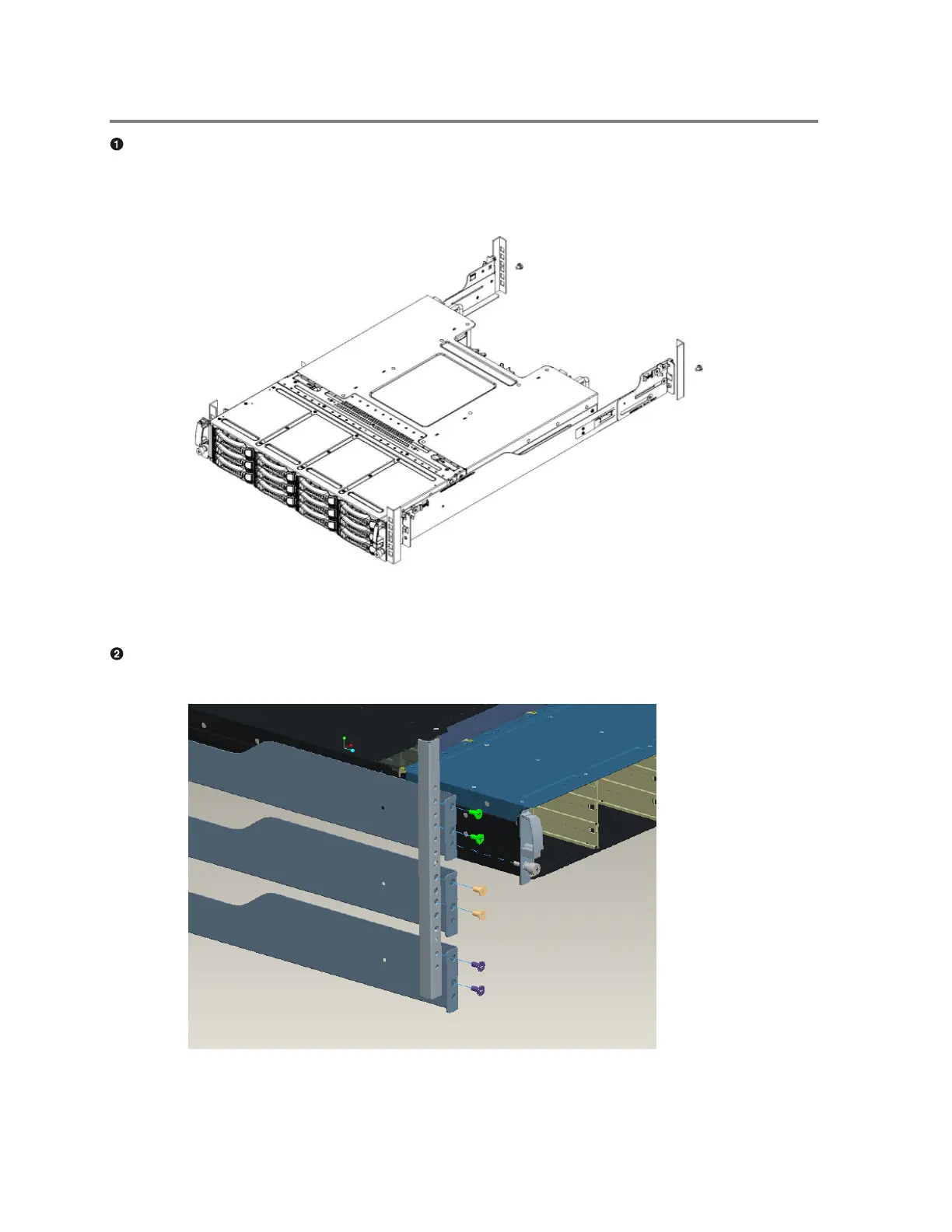

Figure 3-2 Installing the Mounting Brackets in the Rack
The Chassis slides along the support edges of the Bracket.
Figure 3-3 Secure the Mounting Brackets
