In the Tractor (km/h) menu, select the desired memory location using the function key below it.
u
Select the New calibration field.
u
Press the Enter key.
The display shows the Tractor calibration menu.

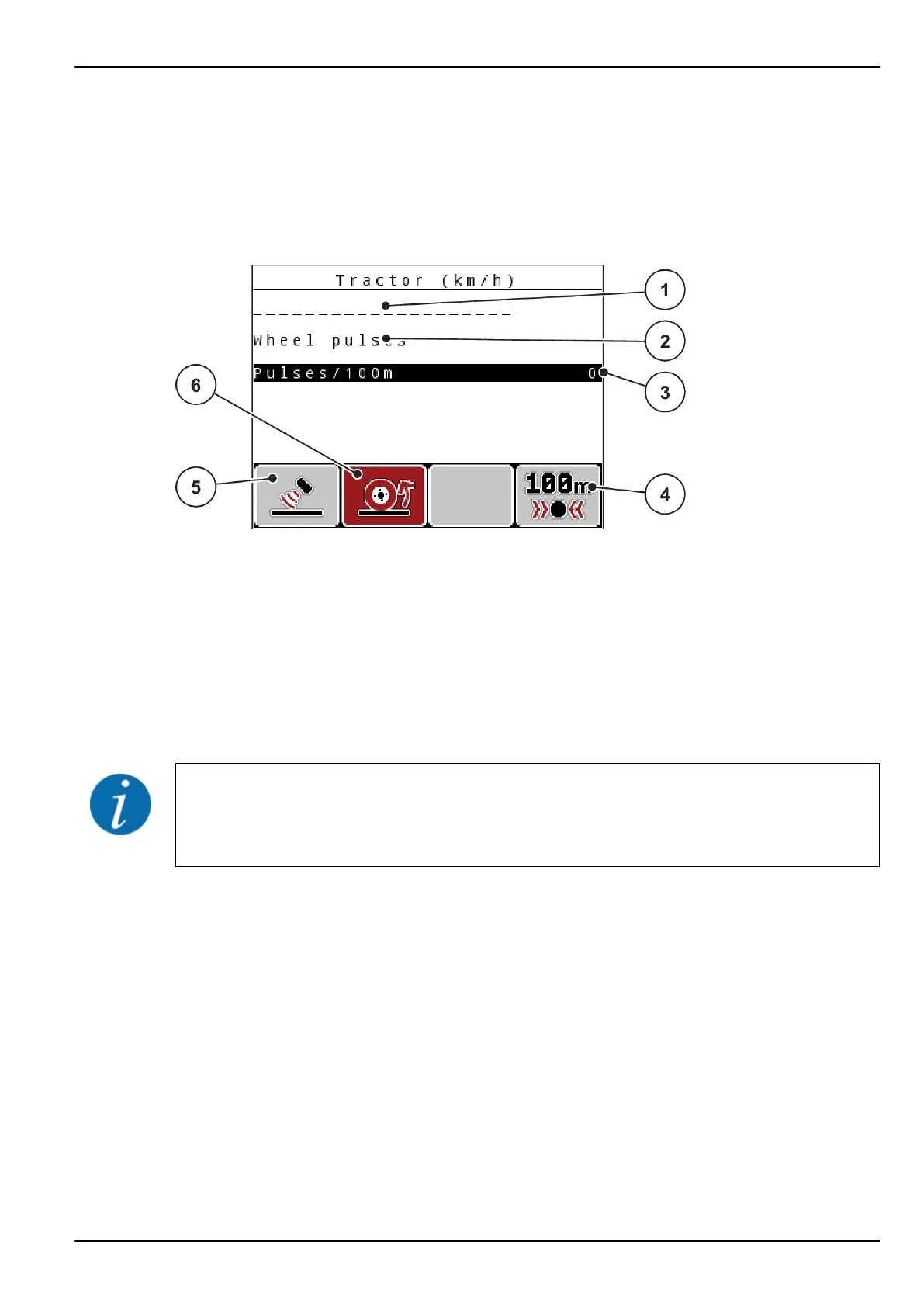

Fig. 32: Tractor (km/h) calibration menu
[1] Tractor name field
[2] Display of the origin of the speed signal
[3] Display of the number of pulses over 100 m
[4] Automatic calibration sub-menu
[5] Radar pulse transducer
[6] Wheel pulse transducer
u
Select the Tractor name field.
u
Press the Enter key.
u
Enter the name of the profile.
The name is restricted to 16 characters.
We recommend using the name of the tractor for ease of understanding.
• See 4.14.1 Entering text
u
Select the pulse transducer for the forward speed signal.
For radar pulses, press the F1 function key [5].
For wheel pulses, press the F2 function key [6].
The display shows the pulse transducer.
The number of pulses of the speed signal must still be specified below. If the exact pulse count is
known, it can be entered directly:
u
Access the menu item Tractor (km/h) > New calibration > Pulses/100m.
The Pulses menu is displayed for manual entry of the pulse count.
If the exact pulse count is unknown, start a calibration.
