Sub-menu Meaning Description
SpreadLight Checking the operating lights
Example: metering slides
CAUTION!
Risk of injury due to moving machine parts
During the tests, machine parts may move automatically.
▶
Before carrying out the tests, ensure that nobody is present in the danger zone of the
machine.
u
Access the menu System/Test > Test/diagnosis
u
Select the menu Metering slider.
u
Press the Enter key.
The status of the motors/sensors is displayed.

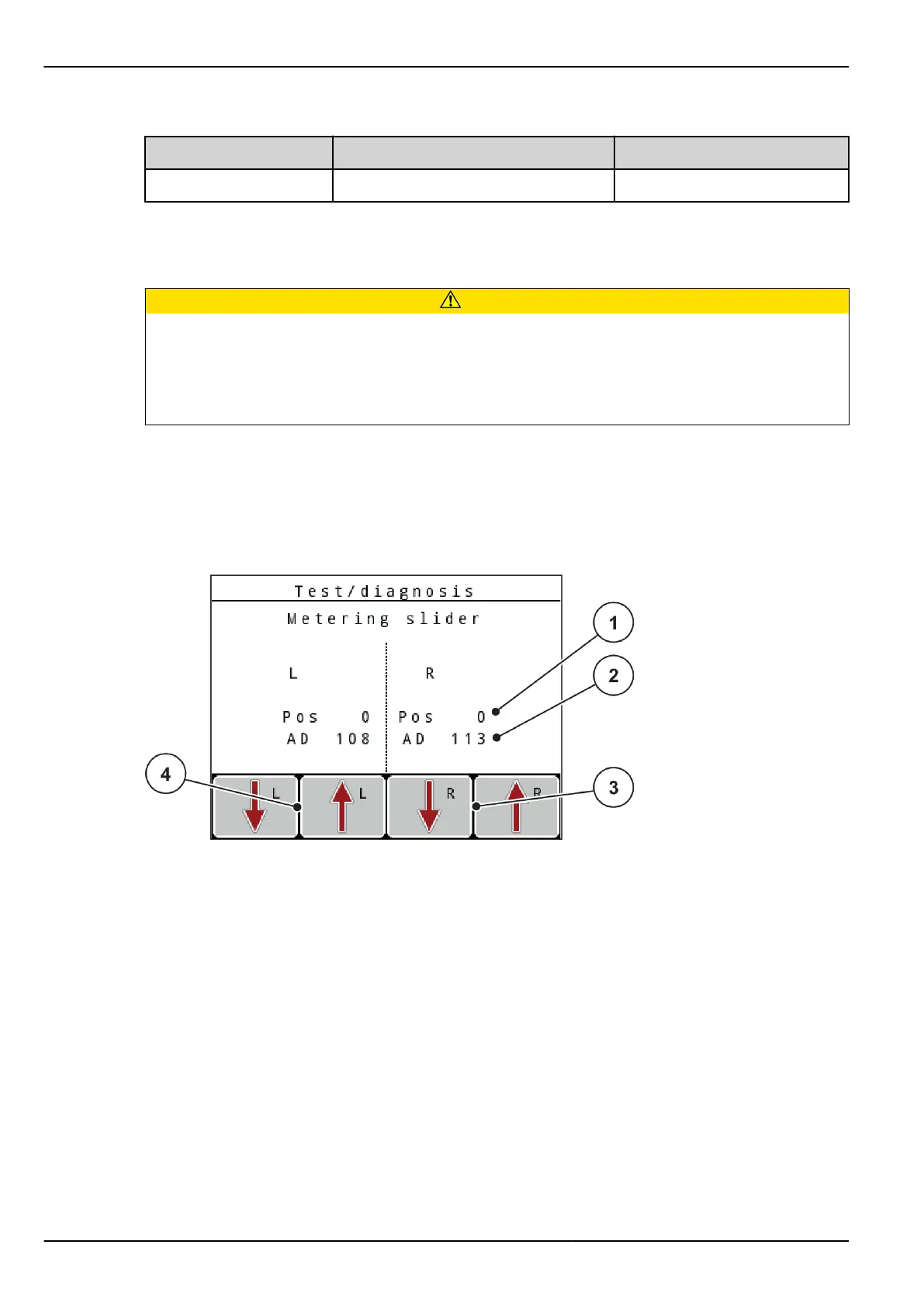

Fig. 42: Test/diagnosis; example: Metering slide
[1] Position display
[2] Signal display
[3] Function keys for right actuator
[4] Function keys for left actuator
The Signal display shows the status of the electrical signals for the left and right side separately.
You can open and close the metering slides with the up/down arrows.
4. Operation
78
5902662 QUANTRON-A AXIS/MDS
