Chapter 4: Setting Up 4-11

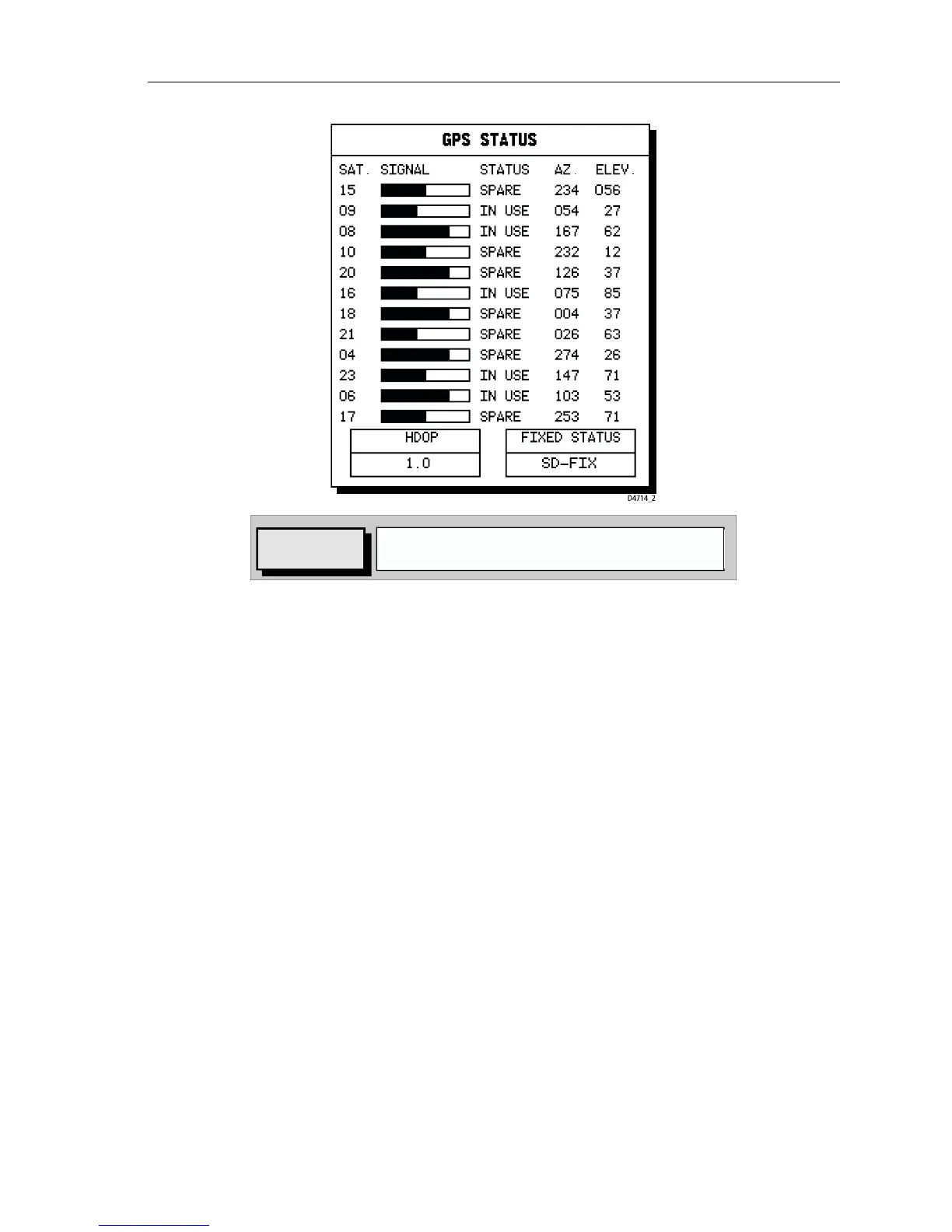

Figure 4-7: GPS Status Screen and Soft Key
The GPS STATUS screen provides, for each tracked satellite, the satellite
number, a graphical signal strength bar, status, azimuth angle and its
elevation angle from your vessel.
Positional accuracy is dependent upon these parameters; in particular, the
azimuth and elevation angles are used in a triangulation process to
calculate your position. HDOP (Horizontal Dilution Of Position) is a
measure of this accuracy; a higher figure signifies greater error. In ideal
circumstances, the figure should be in the region of 1.0. The Fix Status
can indicate:
• SD-FIX, where a Satellite Differential fix has been acquired
• FIX OK, where a normal GPS fix has been acquired
• NO FIX, where no satellite fix can be acquired
➤ To access the SD GPS Setup menu:
1. Press
ENTER; the SD GPS SET UP menu is displayed (Figure 4-8):
D4714_2
SD-FIX
0
0
0
0
0
0
0
0
0
0
0
0
SD-GPS
SET UP
"ENTER" FOR SD-GPS SETUP MENU
"CLEAR" TO QUIT
D4995_1
