System Overview
The SR1500 antenna system provides live satellite TV to a vehicle, while in motion. It
is suitable for installation on any vehicle. It includes a receive panel and electronic
circuits, and is designed, built, and ruggedized for outdoor operation.

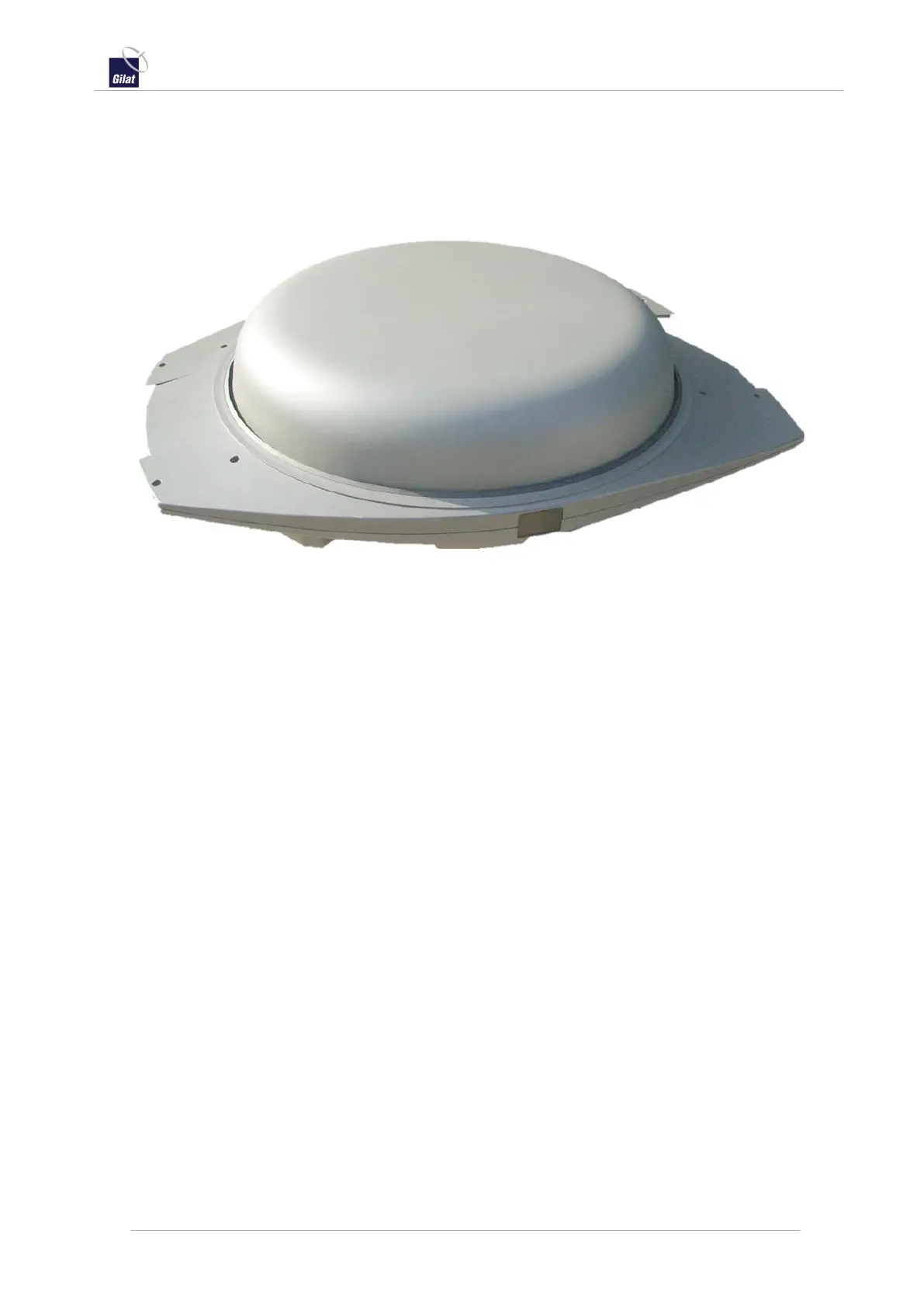

Figure 3: SR1500 antenna
The SR1500 antenna is available in two versions:
Uni Pol (one cable connection) antenna model supports a single TV screen –
one user on one channel at a time.
Dual Pol (three cable connections) antenna can service multiple TV screens,
with each passenger able to access a different channel. The Dual Pol model is
useful on buses.
Accordingly to the version selected, either one or three cables are routed from the
antenna to the indoor compartment.
