Appendix B – Antenna Mounting
Hardware
The antenna comes with hardware kits to assist mounting the antenna on the vehicle
roof.
Clamp Kit
The clamp kit is supplied with the antenna and is applicable for most vehicle
applications. The antenna comes with upper clamp supports preinstalled at each of
the four antenna mounting positions on the antenna. The corresponding lower
bracket parts are supplied as part of a kit.

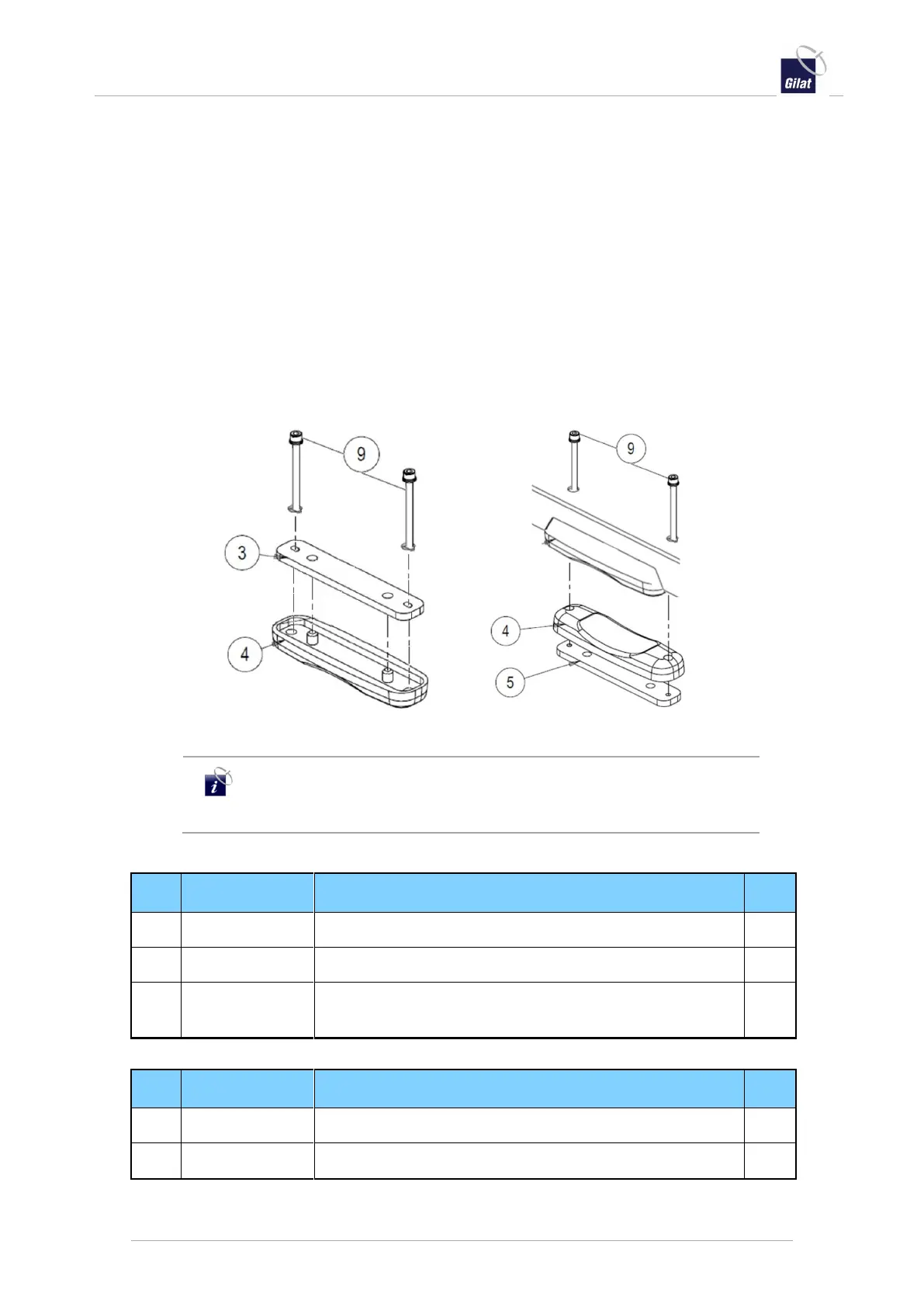

Figure 45: Upper bracket parts
Figure 46: Lower bracket parts
The two assemblies are secured to the antenna and each other by
head screws (No. 9 shown in the Lower Bracket Parts list), which
are accessed through the top of the antenna.
Table 7: Upper bracket parts
#
P/N
Description
Qty
3
MMP1000198
Upper bracket
4
4
MPP0000027
Rubber pad for upper bracket
4
9
MFS0000115
Head Screw M5X45 Hexagon Head Socket Head Cap
DIN912/ISO4762
8
Table 8: Lower bracket parts
#
P/N
Description
Qty
4
MPP0000027
Rubber pad for upper and lower bracket
4
5
MMP1000197
Lower bracket
4
