Monitoring ACU Parameters
You can display ACU parameters for monitoring purposes, including ACU status
details.
To monitor ACU parameter settings:
1. In the IDU Configuration page, click IDU.
This page enables you to monitor ACU parameters.

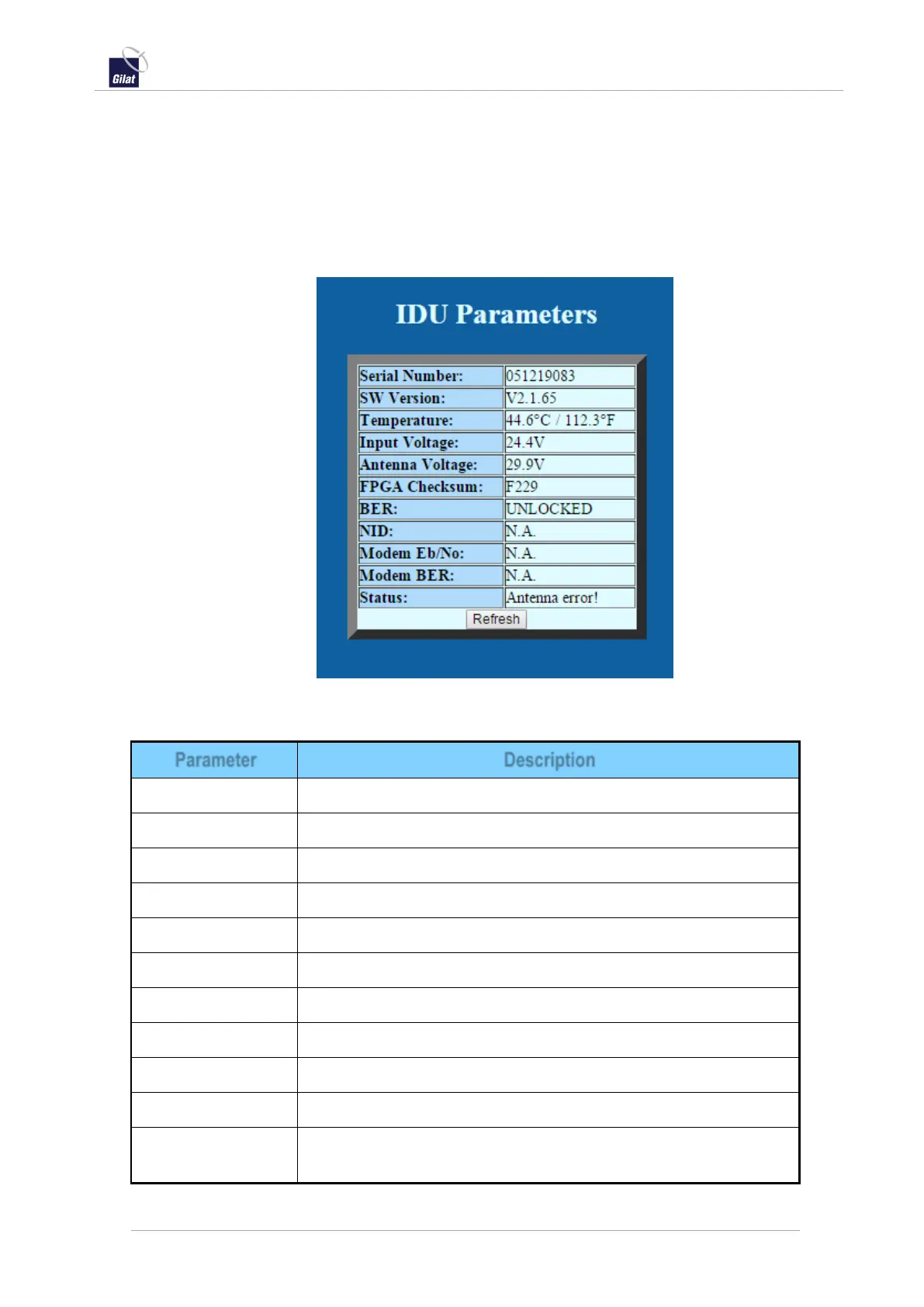

Figure 55: ACU web interface – Monitor IDU Parameters
Table 14: ACU web interface – Monitor IDU parameters
Parameter
Description
Serial Number
ACU serial number.
SW Version
ACU firmware version.
Temperature
ACU internal temperature.
Input Voltage
Measured ACU input voltage (48V±10%).
Antenna Voltage
Measured antenna power voltage at the IDU TNC output terminal.
FPGA Checksum
Checksum of the Xilinx configuration file.
BER
BER (bit error rate) of the received signal by the internal tuner.
NID
Not applicable.
Modem E
b
/N
0
Not applicable
Modem BER
Not applicable.
Status
ACU status. See the statuses in Table 15: ACU Status messages and
their interpretation, on page 53.
