9
Connectors
Coaxial TNC bulkhead jack connectors, as follows:
 SR1500 Dual Pol - Three TNC connectors
- Ctrl - 30V DC and Rx
- Low band – Low band Rx
- High band – High band Rx
The Ctrl connector is configurable to H or V polarization
and Low or High band.
The Low band and High band Rx are automatically set to
the opposite of the Ctrl polarization. For details, see
Polarization Configuration, on page 36.

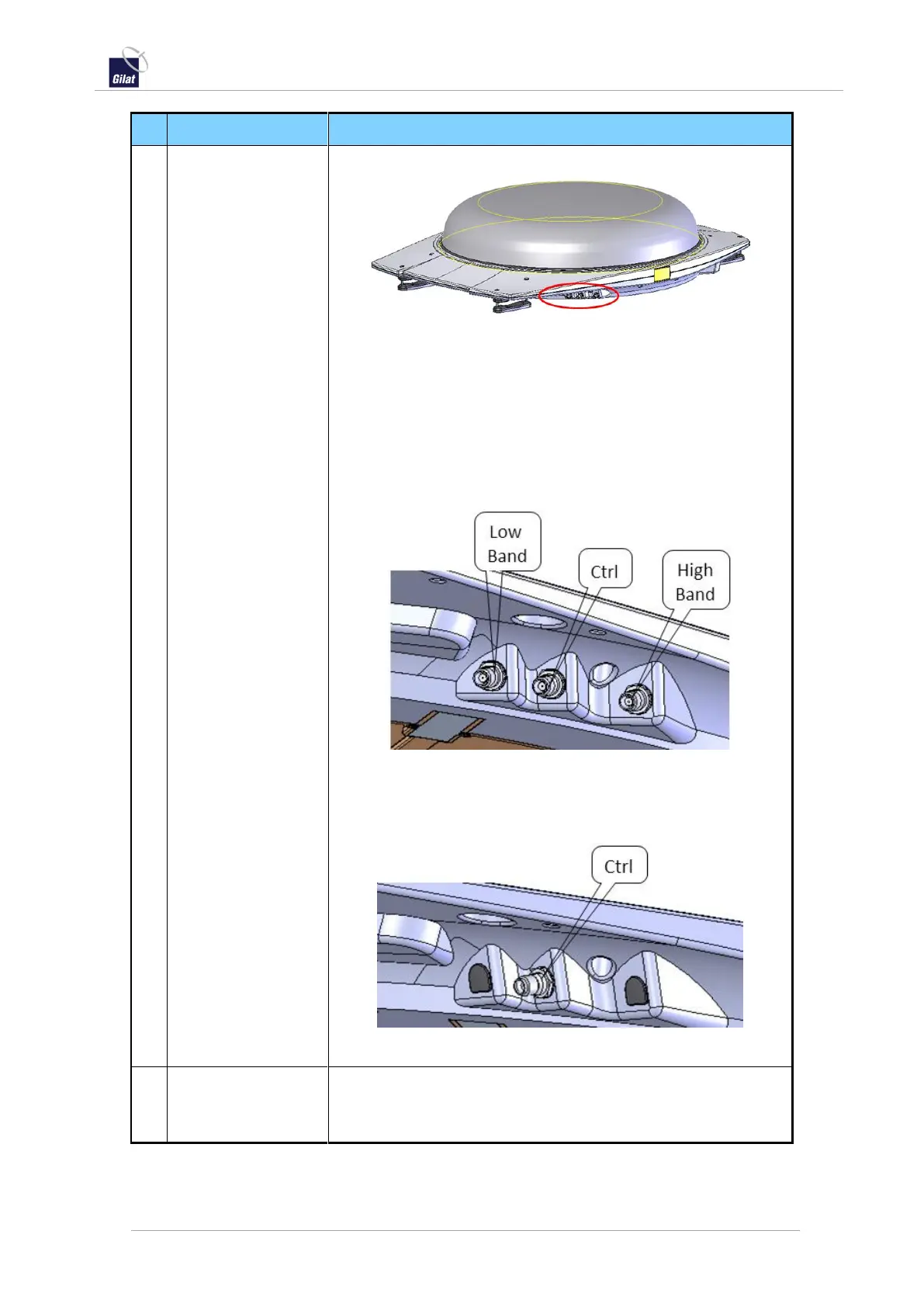

Figure 5: SR1500 Dual Pol connectors
OR
 SR1500 Uni Pol – Ctrl TNC connector for 30V DC and Rx
Figure 6: SR1500 Uni Pol connector
10
Rotary Joint
Provides independent Ku and L-band RF channels, DC, and
digital control connectivity between the rotating and static
platforms.
