2. Define the position of the four metal legs on the roof.
o Mark the center points of the metal legs on the roof. For the leg positions,
see the bus installation dimensions drawing below.
The metal legs are not located symmetrically. It is important to
observe the dimensions precisely.

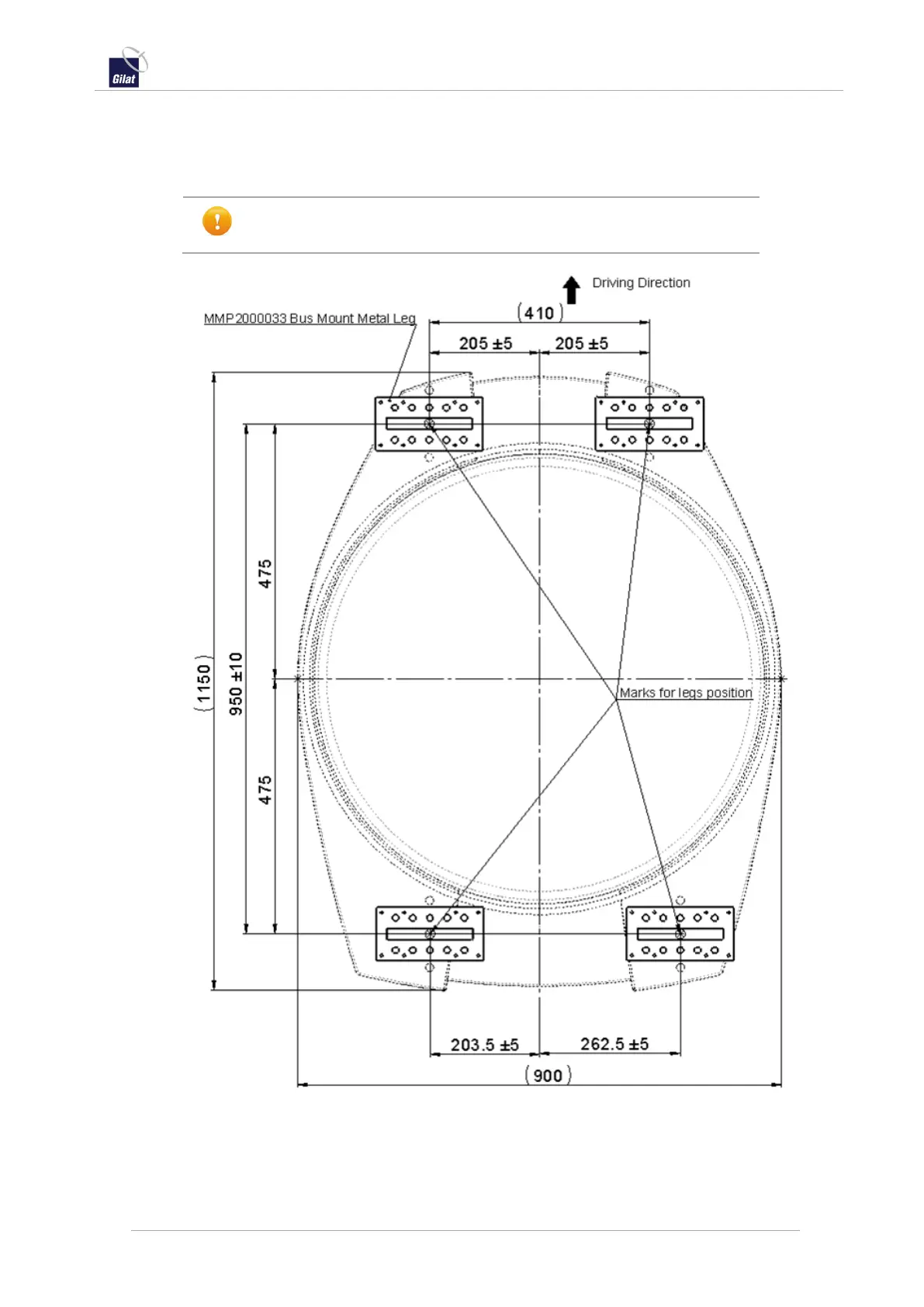

Figure 23: Antenna bus installation dimensions
