Configuring the ACU with the ACU LCD Display
The ACU menus are used to program antenna parameters.
To view the ACU menu options:
Press the Enter button to bring up the following menus:
o Diagnostics LCD Parameters, see page 72.
o Setup LCD Parameters, see page 73.
o Install LCD Parameters, see page 74.
o IP Config LCD Parameters, see page 74.
o Manual Mode LCD Parameters, on page 77.
o Location LCD Parameter, on page 77.
o Coordinates LCD Parameter, on page 77.
Viewing or Changing Parameters
The Diagnostics parameter settings are available for viewing only. The Setup,
Install, and IP Config parameter settings are available for viewing and changing.
Important Note: Changing these parameters can cause the system
to malfunction. Changes should only be made by a qualified
technician.
To view LCD Diagnostics parameters:
1. On the LCD screen, scroll to Diagnostics and press the Enter button to access
the menu.
2. Use the Up/Down arrows to scroll through the parameters.
To view LCD Setup, Install, or IP Config parameters:
1. On the LCD screen, scroll to Setup and press the Enter button to access the
menu.

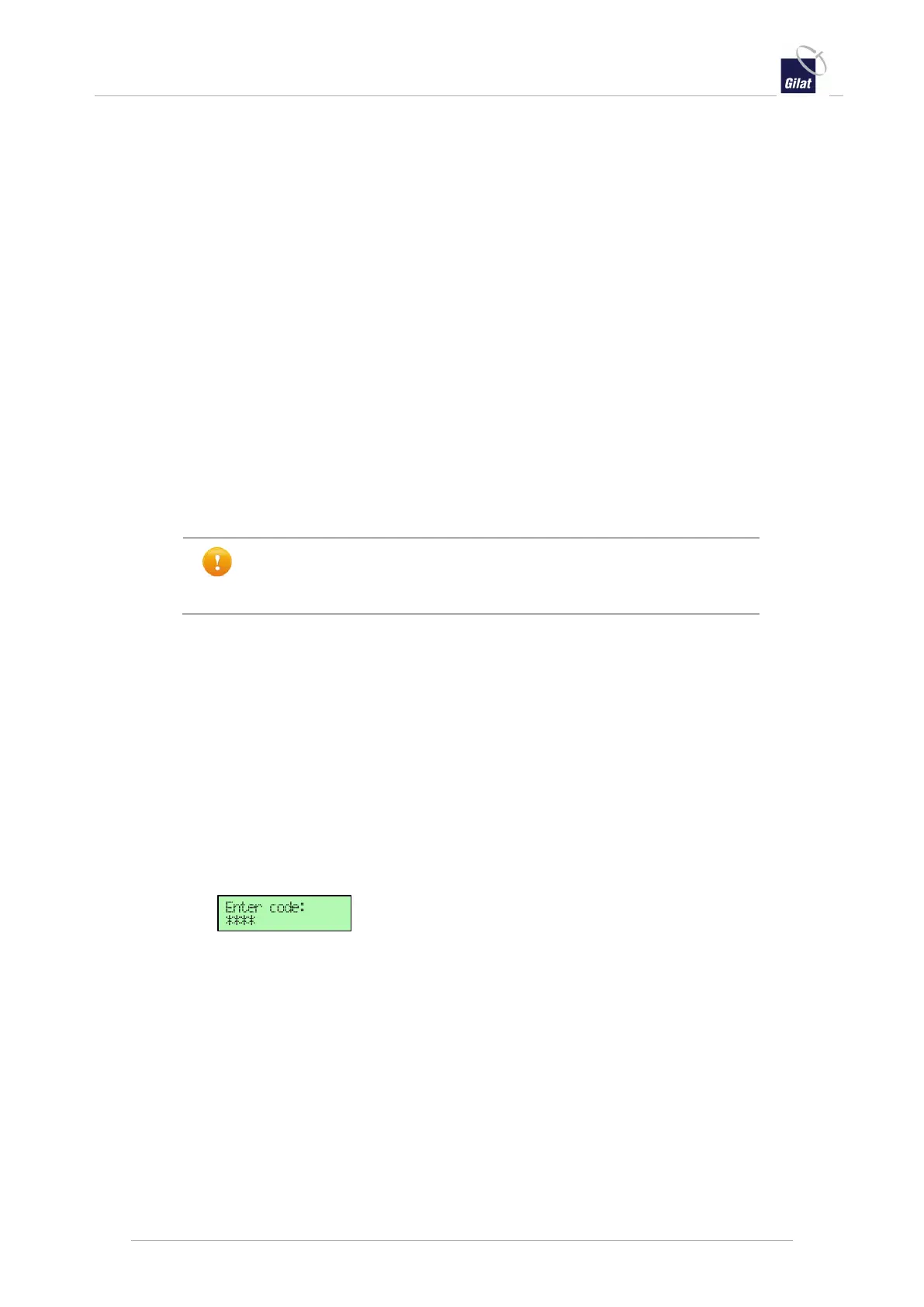

2. The LCD displays Enter Code.
Press the Up arrow 4 times to enter the password.
3. The LCD displays 4 asterisks for the password.
Press the Enter button to accept.
4. Use the Up/Down arrows to scroll through the parameters.
To change Setup, Install, or IP Config parameters:
1. Scroll to the required parameter.
2. Press the Enter button and the parameter will begin flashing.
3. Press Enter to accept the change, or Esc to back out of the current parameter or
selected menu.
