Diagnostics LCD Parameters

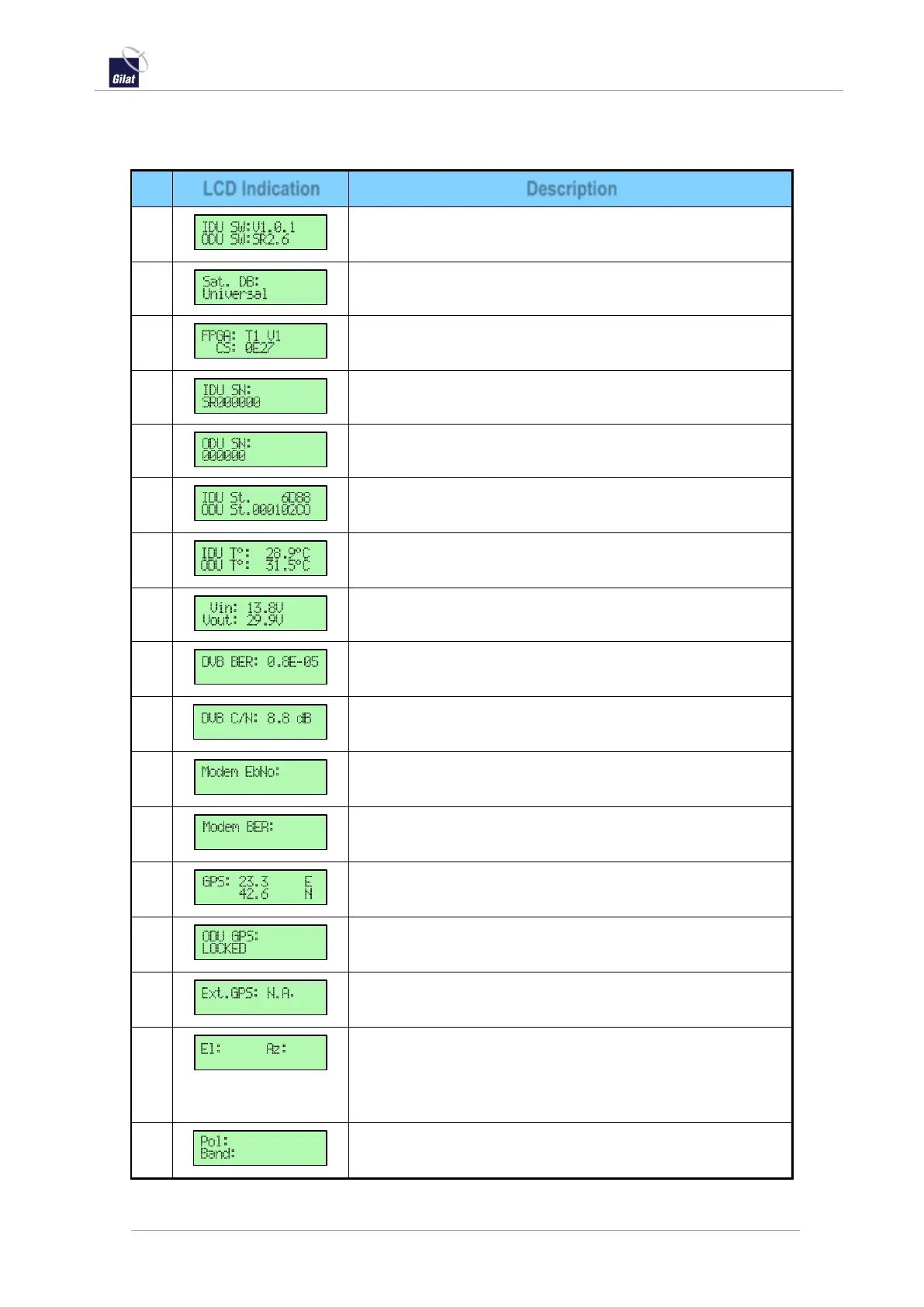

Table 30: ACU LCD - Diagnostics parameters
LCD Indication
Description
1
Software Version - Displays software versions of both the
ACU and antenna, also known as the Outdoor Unit (ODU).
2
Satellite Database - Displays the current database.
3
Satellite Recognition - Displays the current satellite
recognition version.
4
IDU SN - Displays the ACU serial number.
5
ODU SN - Displays the ODU (antenna) serial number.
6
Status - Displays status codes for both the ACU and ODU.
Used when troubleshooting.
7
Temperature - Displays temperature readings for both
the ACU and ODU.
8
Voltage - Displays the voltage input to the ACU and ODU.
9
DVB BER - Displays the bit error rate of the internal
recognition tuner.
10
DVB C/N - Displays the C/N of the internal recognition
tuner.
11
Modem EbNo - Displays the modem E
b
/N
0
value when
available.
12
Modem BER - Displays the modem BER value when
available.
13
GPS - Displays the latitude and longitude readings for the
current geographical location.
14
ODU GPS - Displays the status of the GPS (Locked,
Unlocked, or N.A.)
15
Ext. GPS - - Displays S.Port 3 where an external GPS is
connected to the ACU.
16
El and Az - Displays the antenna panel elevation and
azimuth in deg.
When displayed, the second row shows information for
the Rx and Tx polarization offset in deg.
17
Pol and Band - Displays the antenna current polarization
and band.
