Parameter
Comments
Longitude
Longitude coordinate of antenna GPS.
Elevation
Current antenna elevation.
Azimuth
Current antenna azimuth (available on some antenna
models).
Rx Polarization
Rx polarization angle.
Configuring ACU and Antenna Parameters
You can edit ACU or antenna parameter settings.
To edit ACU or antenna parameter settings:
1. In the IDU Configuration page, click Configuration.
2. IDU and Antenna links appear.
Click IDU or Antenna to open the corresponding configuration page.
IDU Configuration
This page enables editing of ACU parameters.

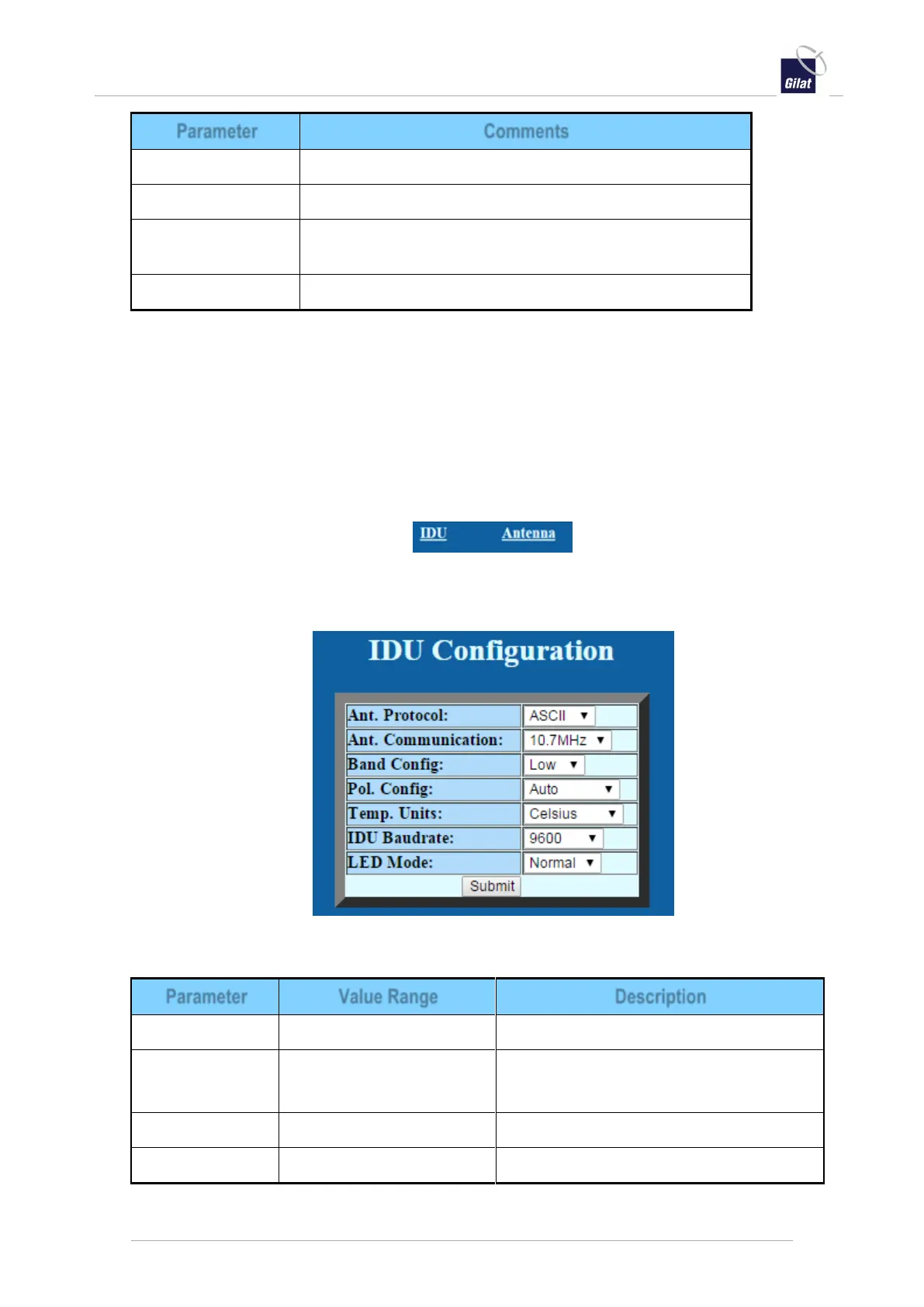

Figure 57: IDU Configuration page
Table 17: ACU web interface - IDU Configuration parameters
Parameter
Value Range
Description
Ant. Protocol
ASCII/Binary
Protocol for connecting to the antenna.
Ant.
Communication
10.7 MHz/333 MHz/RS485
Select RS485
Antenna communication media (carrier or
interface).
Band Config
Low/High/Auto
ACU band configuration.
Pol. Config
Vertical/Horizontal/Auto
ACU polarization configuration.
