The antenna is clamped to the chassis crossbars or legs using the standard
installation kit clamps. The clamping procedure is similar to that described in
Before You Start, on page 15.

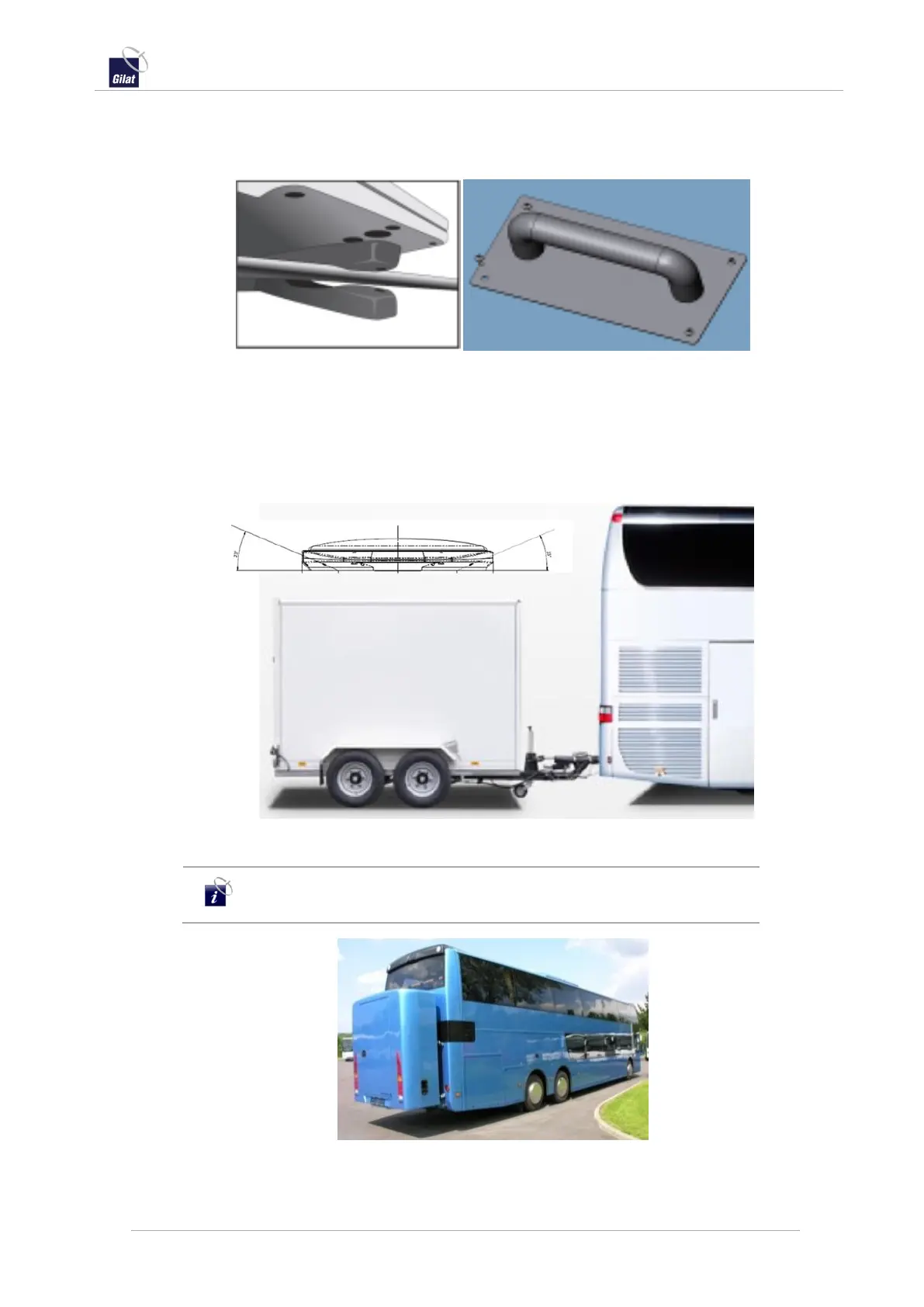

Figure 29: Antenna is clamped to crossbars or legs
Outdoor Trailer Installation
The antenna can be mounted on a trailer, behind the bus. In this case, the trailer
must be high enough and far enough from the bus to provide an adequate line of
sight angle to the satellite, usually 23 degrees from the base of the antenna.
Figure 30: Line of site of antenna on a trailer top
Indoor installation is necessary if a luggage compartment is
attached at the back of the bus.
Figure 31: Bus with luggage attachment
