SR1500 Uni Pol Connectivity

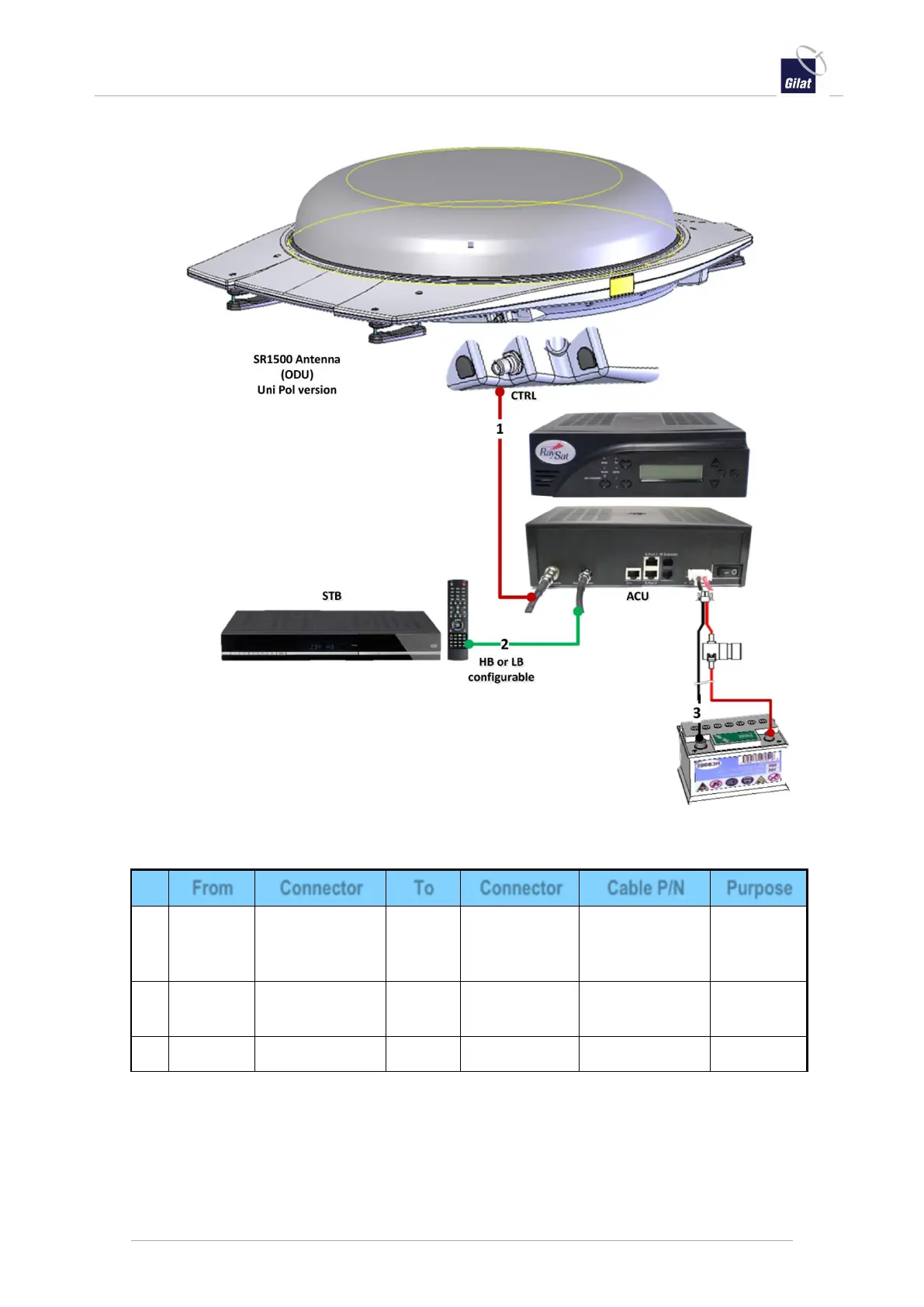

Figure 41: SR1500 Uni Pol Connectivity
Table 5: Wiring connections for SR1500 Uni Pol Connectivity
From
Connector
To
Connector
Cable P/N
Purpose
1
Ant. Ctrl
TNC L-band
Rx ODU Out
DC & Control
ACU
TNC L-band
Rx ACU Out
DC & Control
CBM1000010
OR
CBM0000003 *
L-band Rx
2
ACU
F-type plug-M
STB 1
F-type plug-
M
CBM0000021
3
Battery
ACU
CBM0000165
12-24 VDC
* Cable is 12 m or 6 m. See Appendix D – Basic Cable Kit Contents, on page 44.
