RaySat Gilat SR1500 - Figure 33: Crossbars Mounted on Damper Legs on Train Rooftop Rails

28 | Gilat Satellite Networks | Confidential and Proprietary Information
2. Attach the damper legs to the train rooftop rails through four drill holes on each
leg.

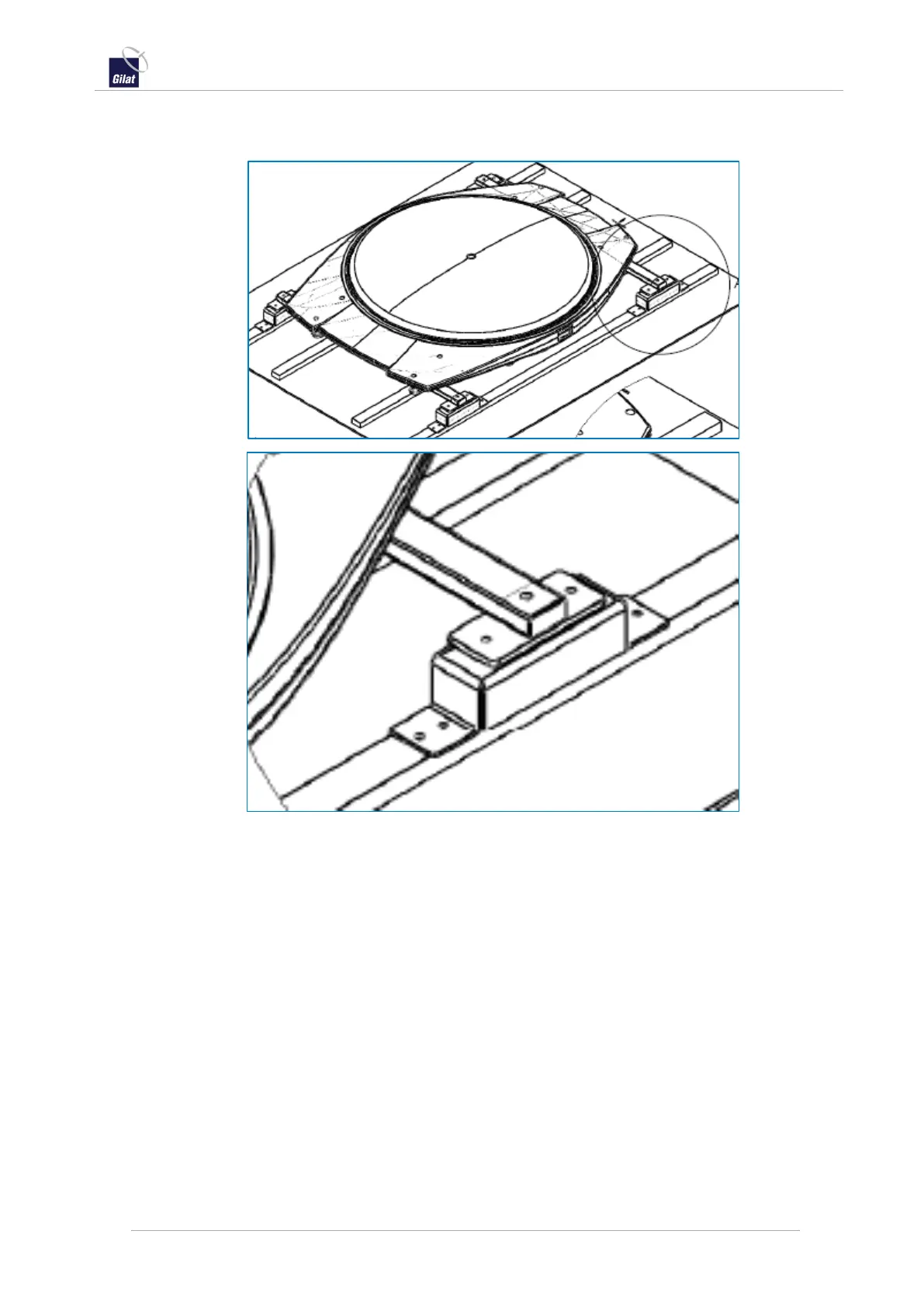

Figure 33: Crossbars mounted on damper legs on train rooftop rails
3. Attach the crossbars to the damper legs with screws from the assembly kit.
4. Attach the antenna to the crossbars with screws from the assembly kit.
