Alternative Power Connection – Directly to Battery
You can also connect the system directly to the vehicle 12 V battery.

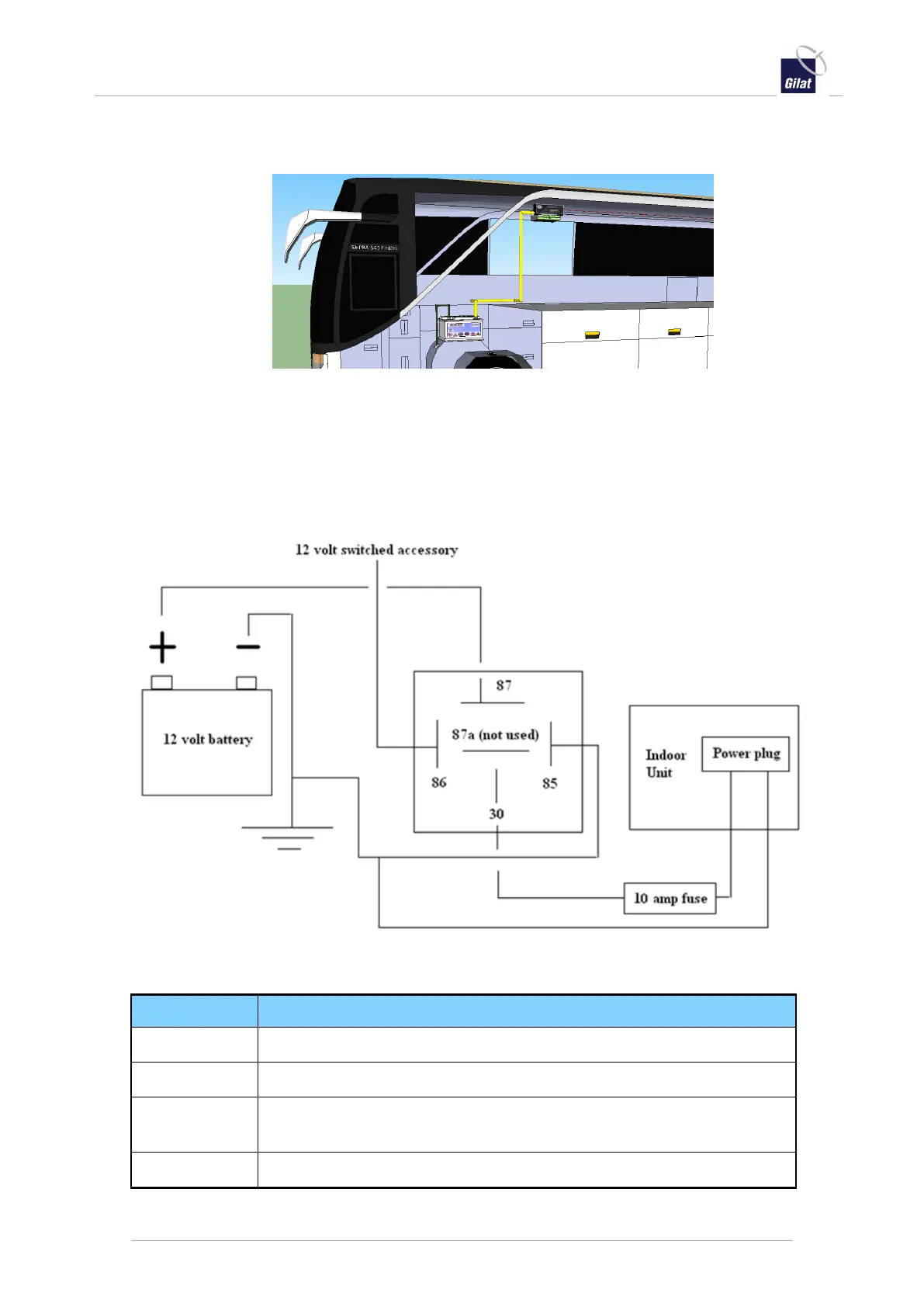

Figure 43: Power supplied from the battery running through the Ignition
Take special care when connecting the system directly to the vehicle’s battery. It is
recommended that an external, single pole double throw (SPDT) relay be installed.
This will ensure that the power you are providing for the system will not interfere
with normal vehicle functions as it will be an isolated source.
A minimum 14AWG wire should be used when running the power in this manner.
The following illustration provides information to complete this modification.
Figure 44: Relay diagram
Table 6: Pin Connections for direect battery power connection
P
P
i
i
n
n
n
n
u
u
m
m
b
b
e
e
r
r
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
Pin 85
Connect to Ground.
Pin 86
Connect to 12V switched accessory.
Pin 87
Connect to 12V constant (preferably battery, or line coming from
battery, but before fuse box).
Pin 30
Connect to positive (red) wire of ACU.
