Reflex EZ-TRAC User Manual

MANUAL – REFLEX EZ-TRAC™ | 53

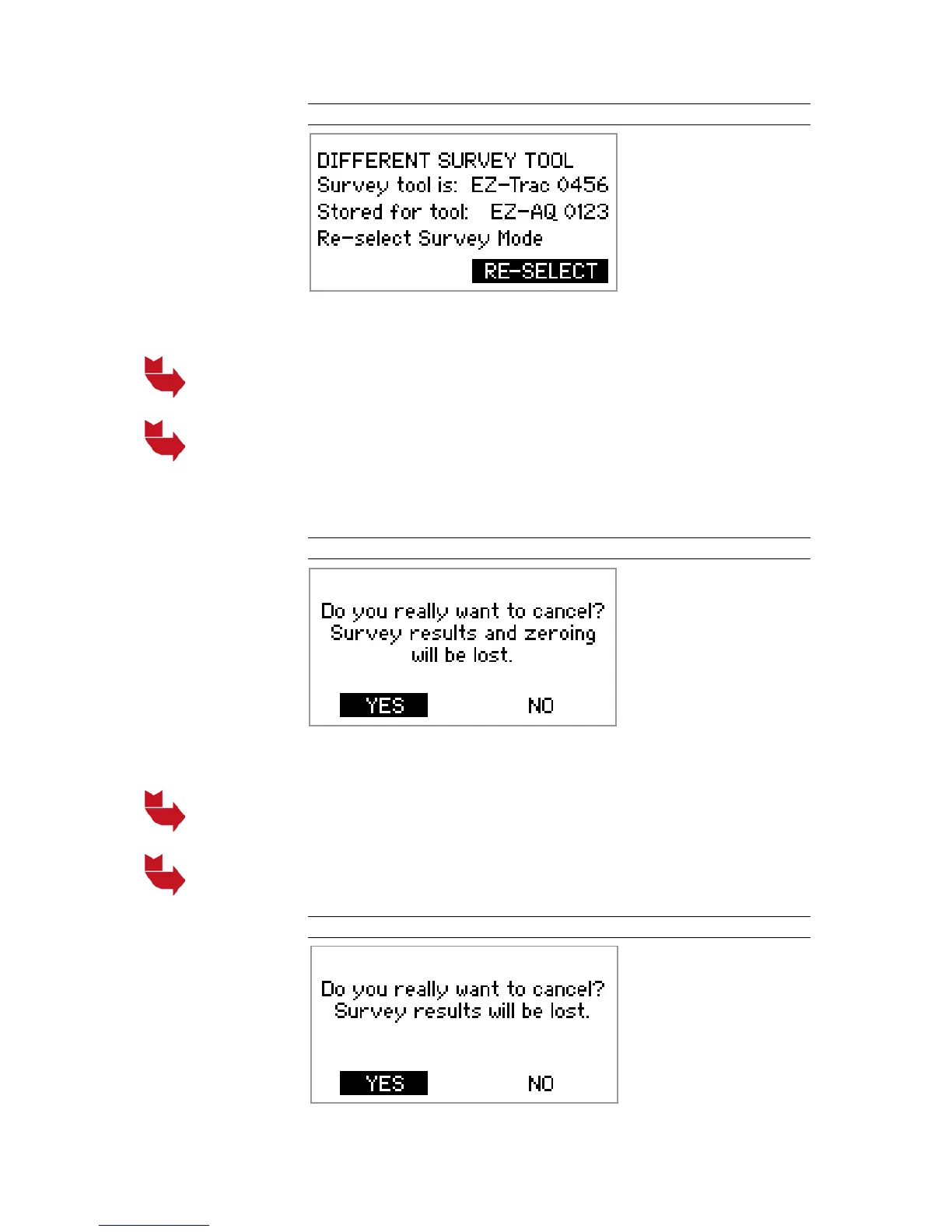

Figure 59 Different tool
The Different Tool message appears if a stored zeroing value is about
to be used, and if the serial number of the tool is not the same as the
serial number of the tool used to register the zeroing.
Change to the correct tool and re-select STORED ZEROING from the
Select survey mode screen.
Use the current tool, but select either GRAVITY TOOLFACE (NEW)
or MAGNETIC TOOLFACE (NEW) from the Select survey mode
screen. Follow the instructions in section 10.5.1 Register new
zeroing.
Figure 60 Lose results and zeroing
The Lose results and zeroing message appears if CANCEL is
selected during an Orientation survey (with a new zeroing value
registered).
Select YES to proceed with the cancellation. The survey results and
the new zeroing value will be lost.
Select NO to return to the previous screen.
Figure 61 Lose results
