PG-FP5

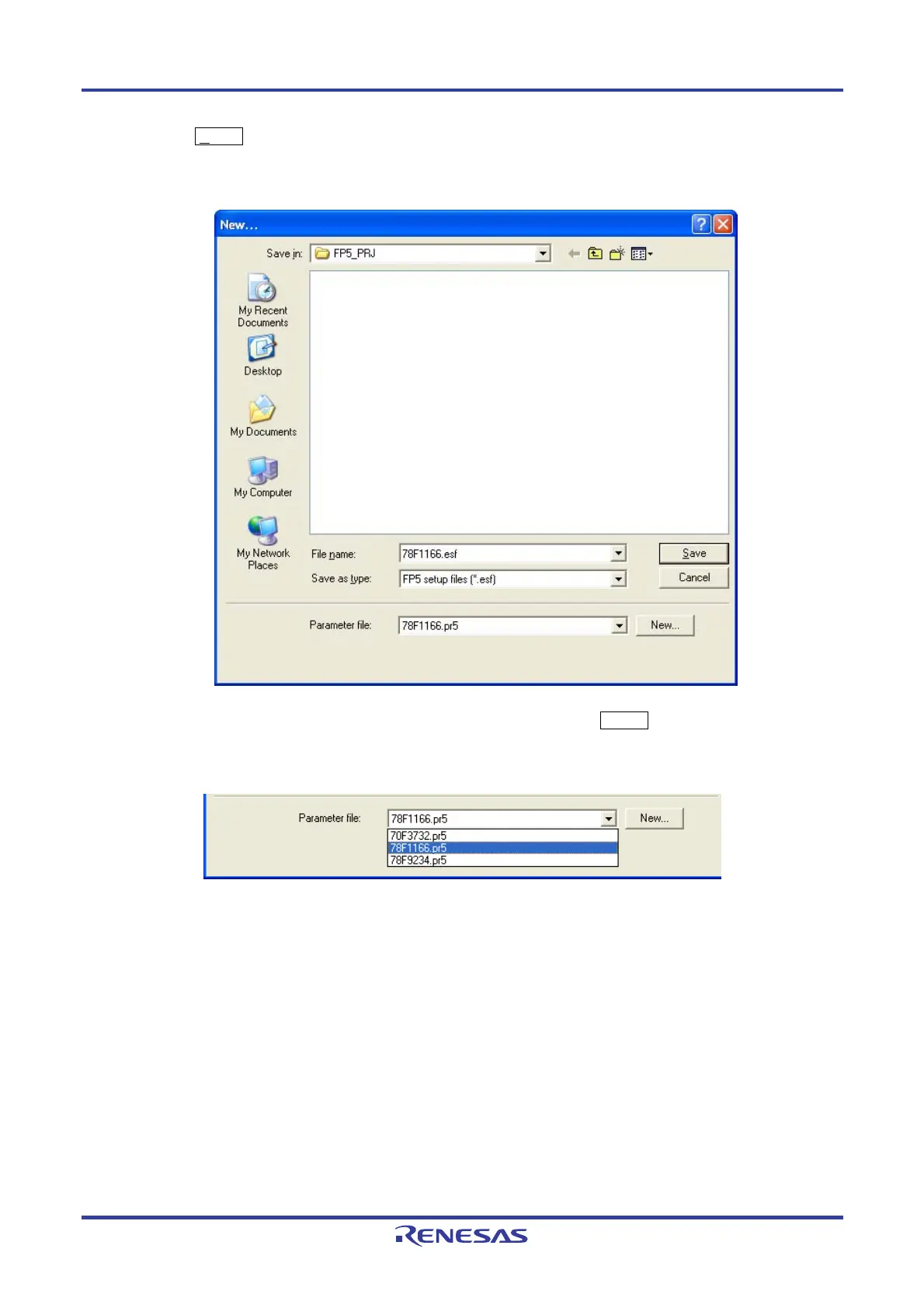

CHAPTER 5 EXAMPLE OF
OPERATION USING PROGRAMMING GUI
R20UT0008EJ040
0 Rev. 4.00
Page 116 of 240
Jul 15, 2010
<4>
Click the
N
ew
.
..
button to create a ne
w ESF file for the
μ
PD78F1
166.
Figure 5-9. Creation of Ne
w ESF File
<5>
Select 78F1
166.pr5 from the [Par
ameter file] list. If this file is unlisted, use
New
...
button.
Figure 5-10. Selecting PR5 File
