PG-FP5
CHAPTER 5 EXAMPLE OF
OPERATION USING PROGRAMMING GUI
R20UT0008EJ040
0 Rev. 4.00
Page 120 of 240
Jul 15, 2010
<14>
The programming GUI loads t
he PR5 file, ESF file and pr
ogram file to the F
P5. When setting is completed, the
following window will be displa
yed. Setting of the programming env
ironment is then finished.

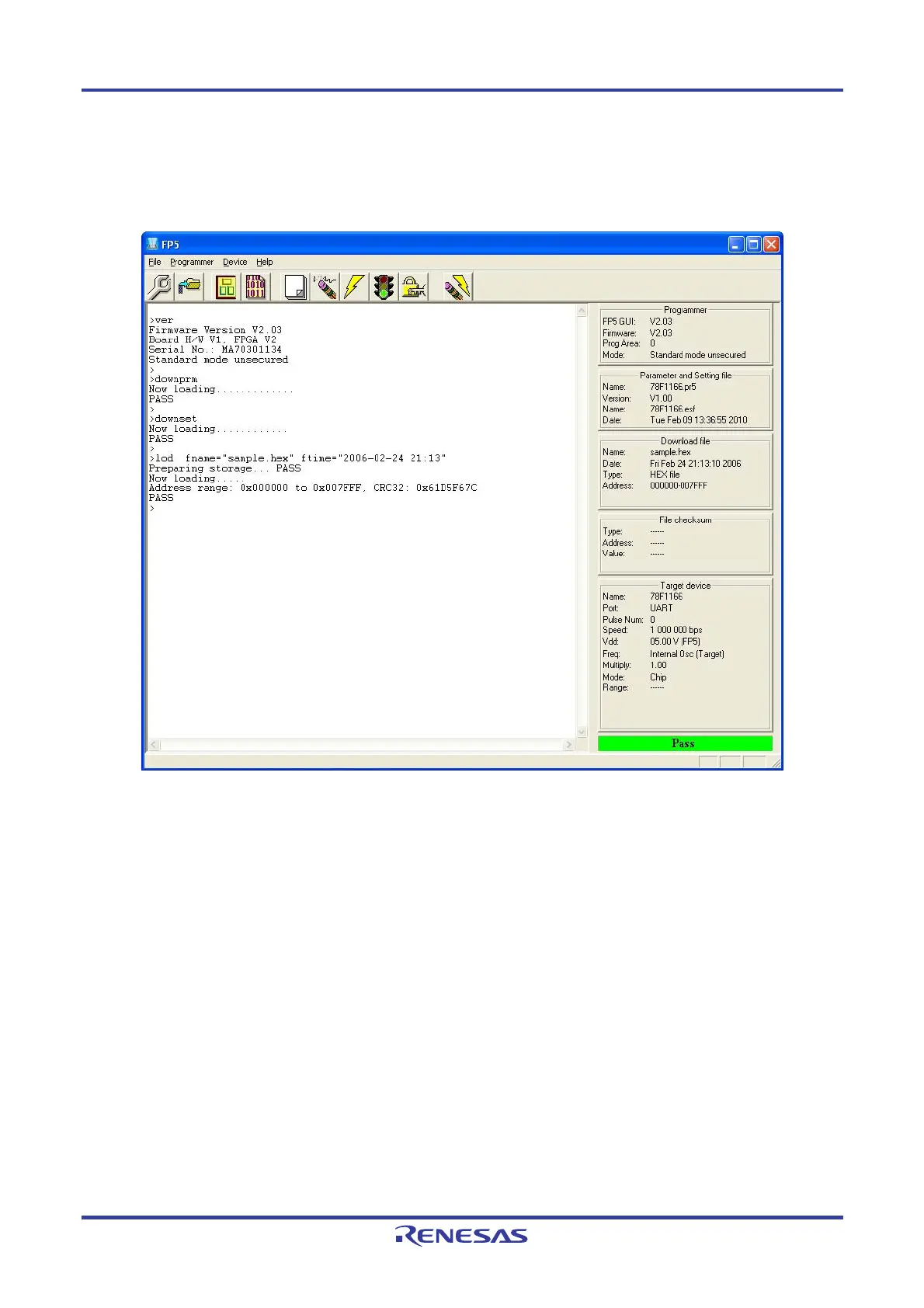

Figure 5-16. Do
wnloading of PR5 File, ESF Fi
le and Program File
119
121
