PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 66 of 240
Jul 15, 2010

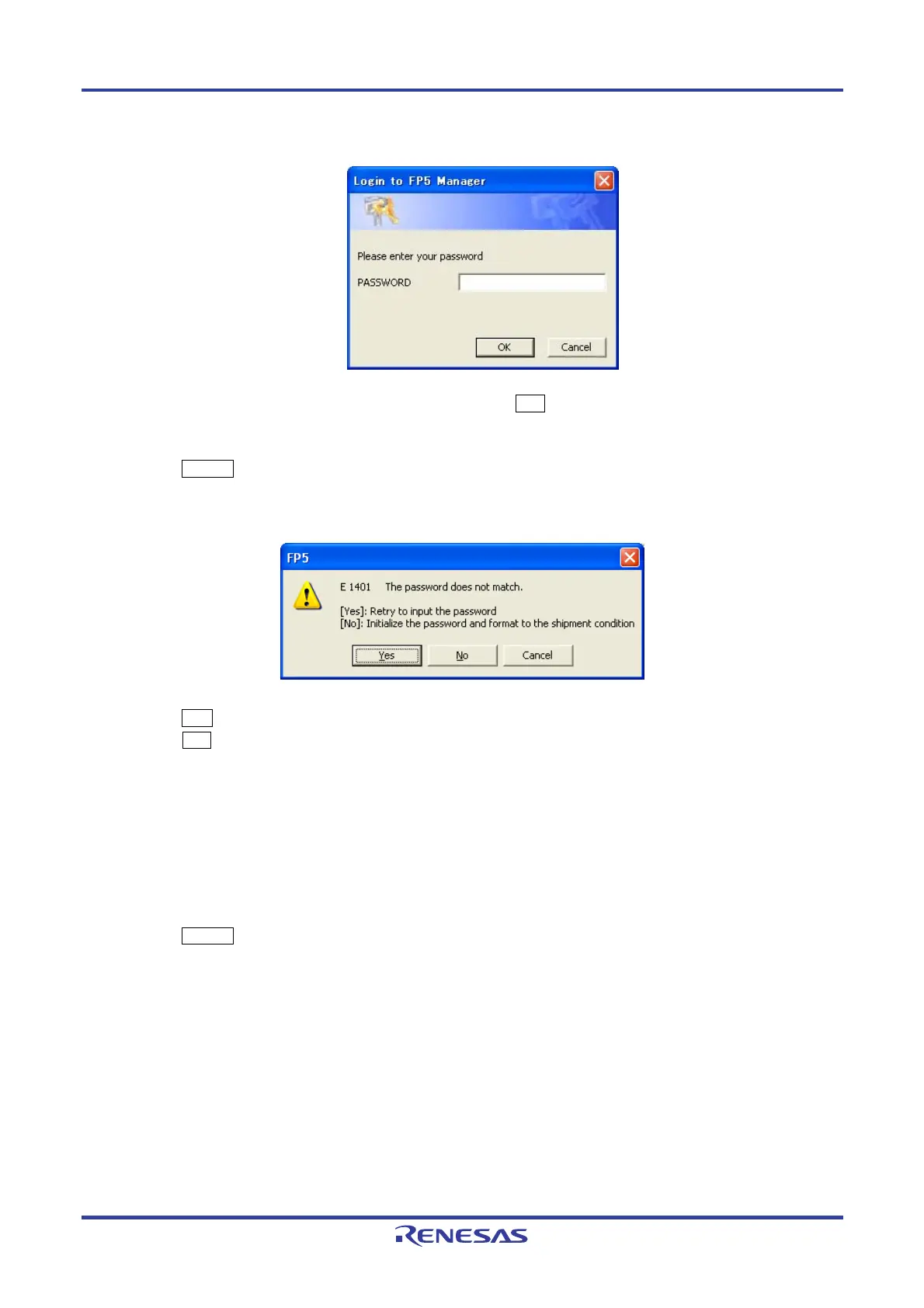

Figure 4-33. Login to FP5 Manager Dialog Box
Input the password into the [PASSWORD] box, and then click OK .
If the password is correct the dialog box in Figure 4-35 will open. If the password is wrong, then the dialog box in
Figure 4-34 will open.
Clicking Cancel will close the dialog box.
Figure 4-34. FP5 Dialog Box
Clicking Yes will open the dialog box to input the password again (Figure 4-33).
Clicking No will initialize the FP5 to its default settings. When initialized, the following stored information will be
deleted or reset to their defaults:
• Password
• FP5 Manager setting
• PR5 file
• ESF file
• Program file
Clicking Cancel will close the dialog box.
