PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 67 of 240
Jul 15, 2010

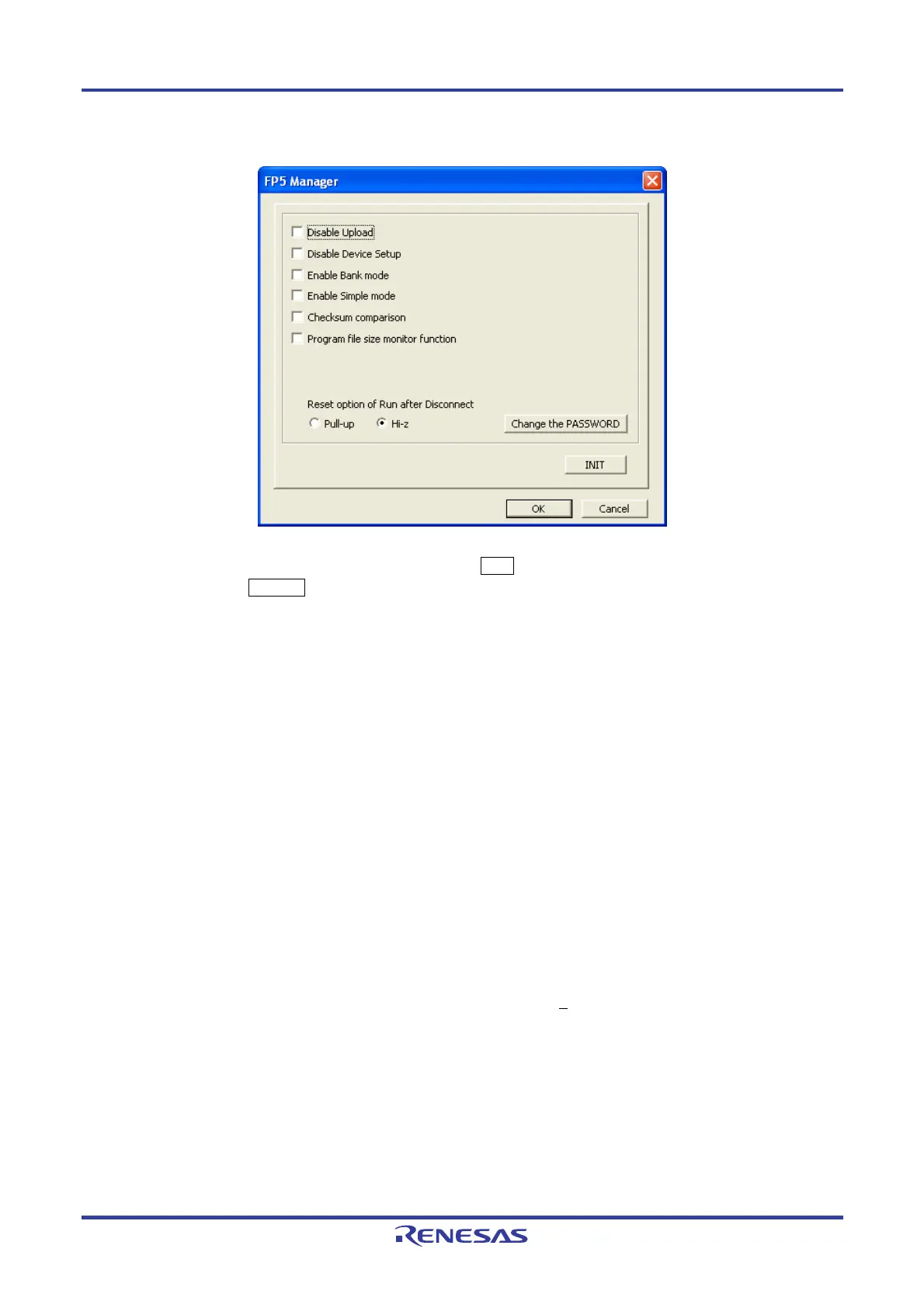

Figure 4-35. FP5 Manager Dialog Box
After making any changes to the settings and clicking OK , the dialog box will close and the settings will be
enabled. Clicking Cancel will close the dialog box and discard the changes. The FP5 Manager settings are
described below.
• Displaying Mode Contents
The mode contents that indicate the FP5 state is displayed in the [Programmer] area of the programming
parameter window.
- Standard mode unsecured
The FP5 Manager has not been set.
- Standard mode secured
The FP5 Manager has been set. However, the bank mode or the simple mode have not been set.
- Bank mode secured
The FP5 Manager and bank mode have been set.
- Simple mode secured
The FP5 Manager and simple mode have been set.
• FP5 Manager Dialog Settings (Refer to Figure 4-35)
[Disable Upload] check box
This sets enabling or disabling of the upload function used to upload data (program file, PR5 file, ESF file)
from the valid programming area of FP5 to the host machine. Checking the box will disable and unchecking
it will enable the function. When this function is disabled, the [F
ile] menu -> [Upload from FP5...] command,
and the hex and srec of the communications command are disabled. The default is not to have this box
checked.
[Disable Device Setup] check box
Enables or disables the [Setup] command in the [Device] menu. It is disabled when checked, and enabled
when not checked. When it is disabled, the [Setup] command in the [Device] menu, as well as the downprm,
downset, and lod communication commands become invalid.
