<4> [Object HEX file] area
Select the program file in this area. If an HCUHEX file is selected, "HCUHEX file" is displayed in this area.

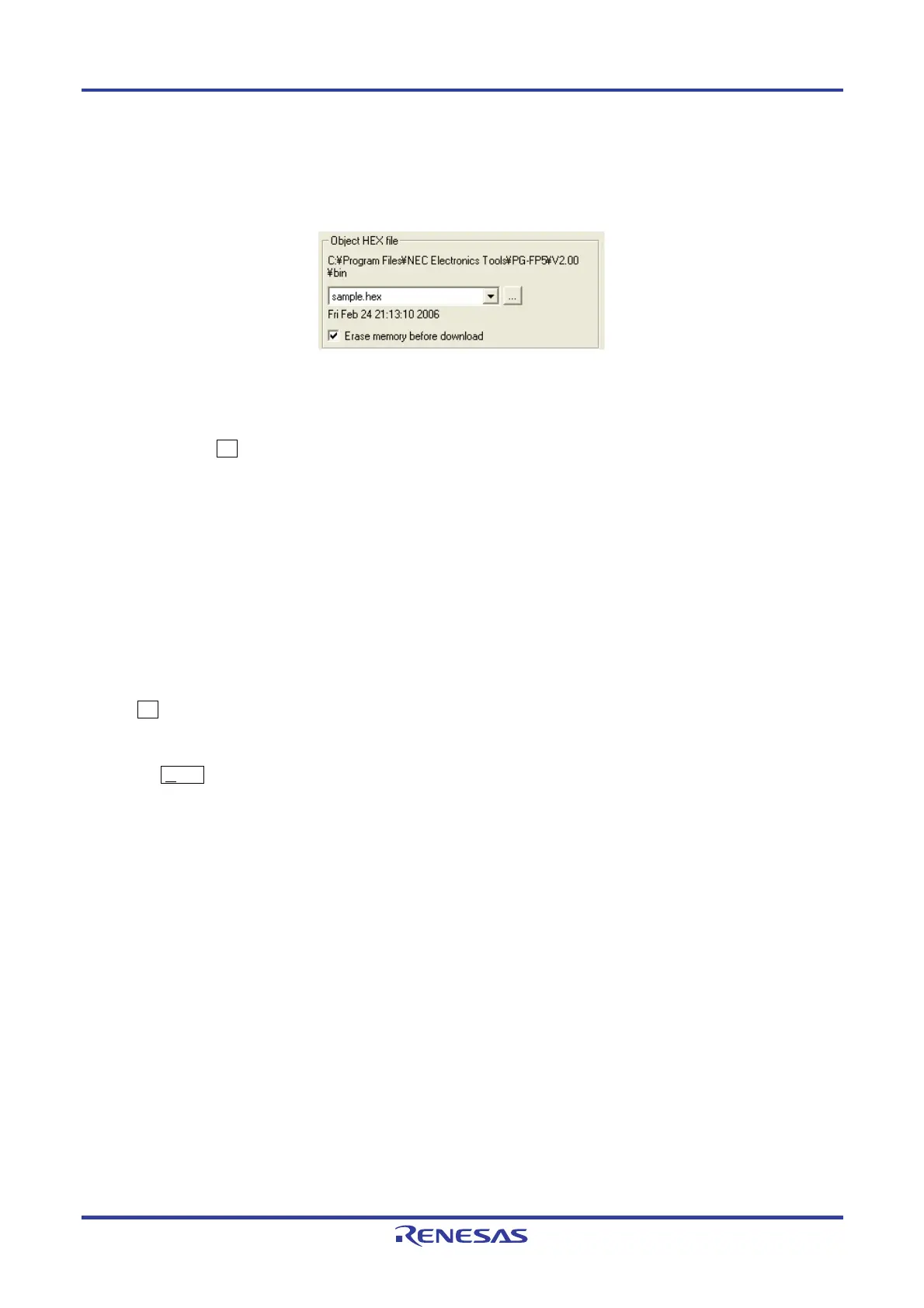

Figure 4-56. [Object HEX file] Area
Program file selection list
Select the program file to be used. If no program files are registered in the valid programming area, program files
stored in the bin folder in the programming GUI installation folder are displayed. If the reference folder is changed
by using the ... button, program files stored in the changed folder are displayed.
[Erase memory before download] check box
The [Erase memory before download] check box allows the user to select whether to delete the internal memory
of the FP5 before downloading a new program file. Under normal conditions, check this box.
Caution Clear this check box when downloading and writing two program files. When a file is
downloaded with this check box cleared, the PG-FP5 downloads data 512 bytes at a time
without erasing its internal flash memory. Note, however, that the download error “ERROR:
NAND flash – Illegal Write (Bit 0->1)” occurs if there is data other than FFh in the data being
downloaded.
... button
Click this button when specifying a program file stored in a folder other than the bin folder in the programming
GUI installation folder. The [Download file] dialog box will be displayed. Specify the relevant file, and then click
the O
pen button.
