<6> Programming area map area
The programming area status can be checked in this area. The FP5 programming areas whose information
matches information held in the programming GUI are displayed in light green. In the valid programming area,
the names of ESF files, PR5 files and program files, and programming area numbers are displayed in black.
These items appear dimmed in invalid programming areas. If no area information is held in the programming GUI,
“Unknown” is displayed. The FP5 programming areas whose information does not match information held in the
programming GUI are displayed in pink. The information held in the programming GUI is displayed in such areas.

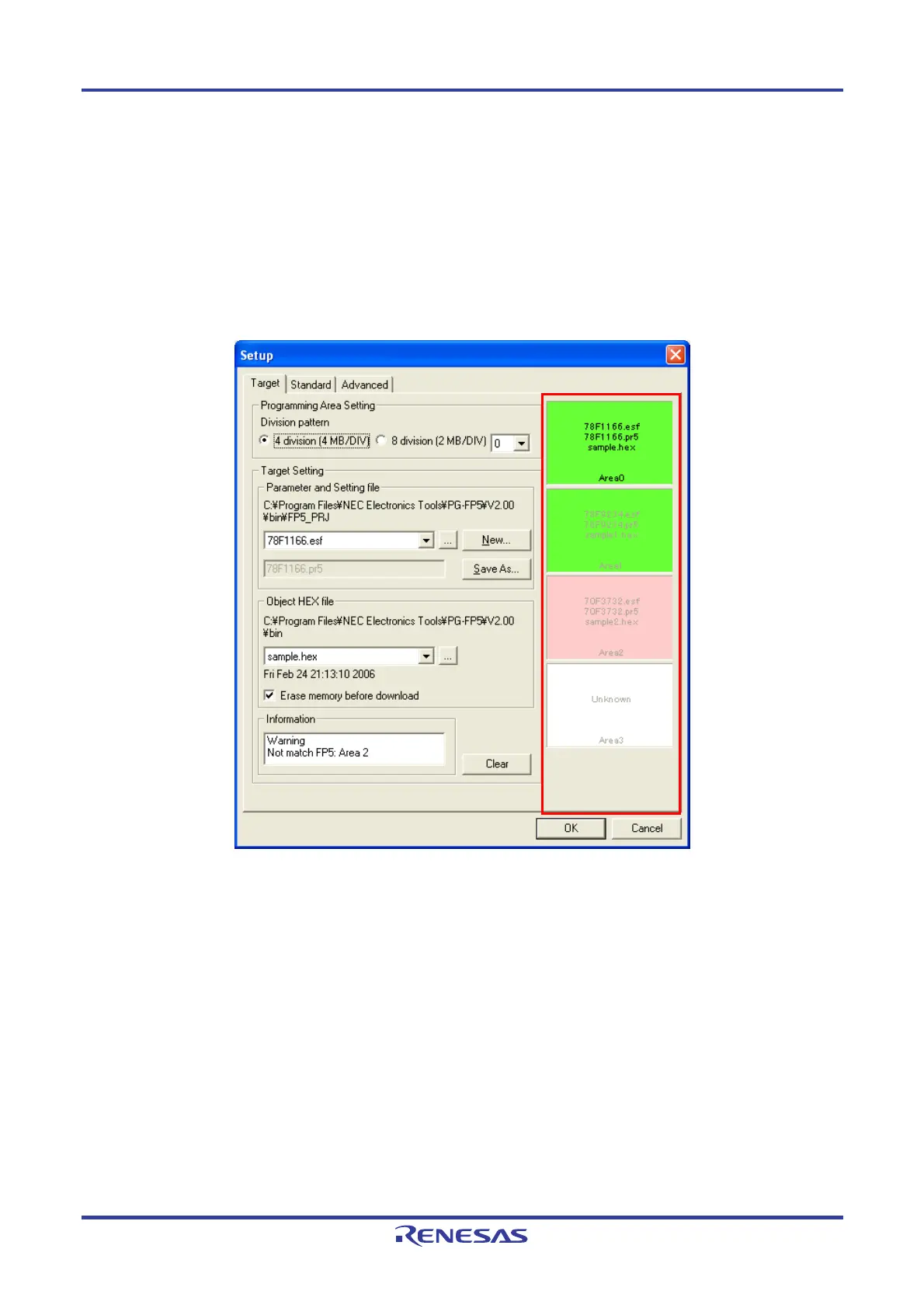

Figure 4-59. Programming Area Map Area
