RL78/G13 CHAPTER 30 PACKAGE DRAWINGS
R01UH0146EJ0100 Rev.1.00 1049
Sep 22, 2011
30.8 44-pin products
R5F100FAAFP, R5F100FCAFP, R5F100FDAFP, R5F100FEAFP, R5F100FFAFP, R5F100FGAFP, R5F100FHAFP,
R5F100FJAFP, R5F100FKAFP, R5F100FLAFP
R5F101FAAFP, R5F101FCAFP, R5F101FDAFP, R5F101FEAFP, R5F101FFAFP, R5F101FGAFP, R5F101FHAFP,
R5F101FJAFP, R5F101FKAFP, R5F101FLAFP
S
y
e
Sxb
M
θ
L
c
Lp
HD
HE
ZD
ZE
L1
A1
A2
A
D
E
A3
S
0.145
+0.055
−0.045
(UNIT:mm)
ITEM DIMENSIONS
D
E
HD
HE
A
A1
A2
A3
10.00±0.20
10.00±0.20
12.00±0.20
12.00±0.20
1.60 MAX.
0.10±0.05
1.40±0.05
0.25
c
θ
e
x
y
ZD
ZE
0.80
0.20
0.10
1.00
1.00
L
Lp
L1
0.50
0.60±0.15
1.00±0.20
P44GB-80-UES-1
3°
+5°
−3°
NOTE
Each lead centerline is located within 0.20 mm of
its true position at maximum material condition.
detail of lead end

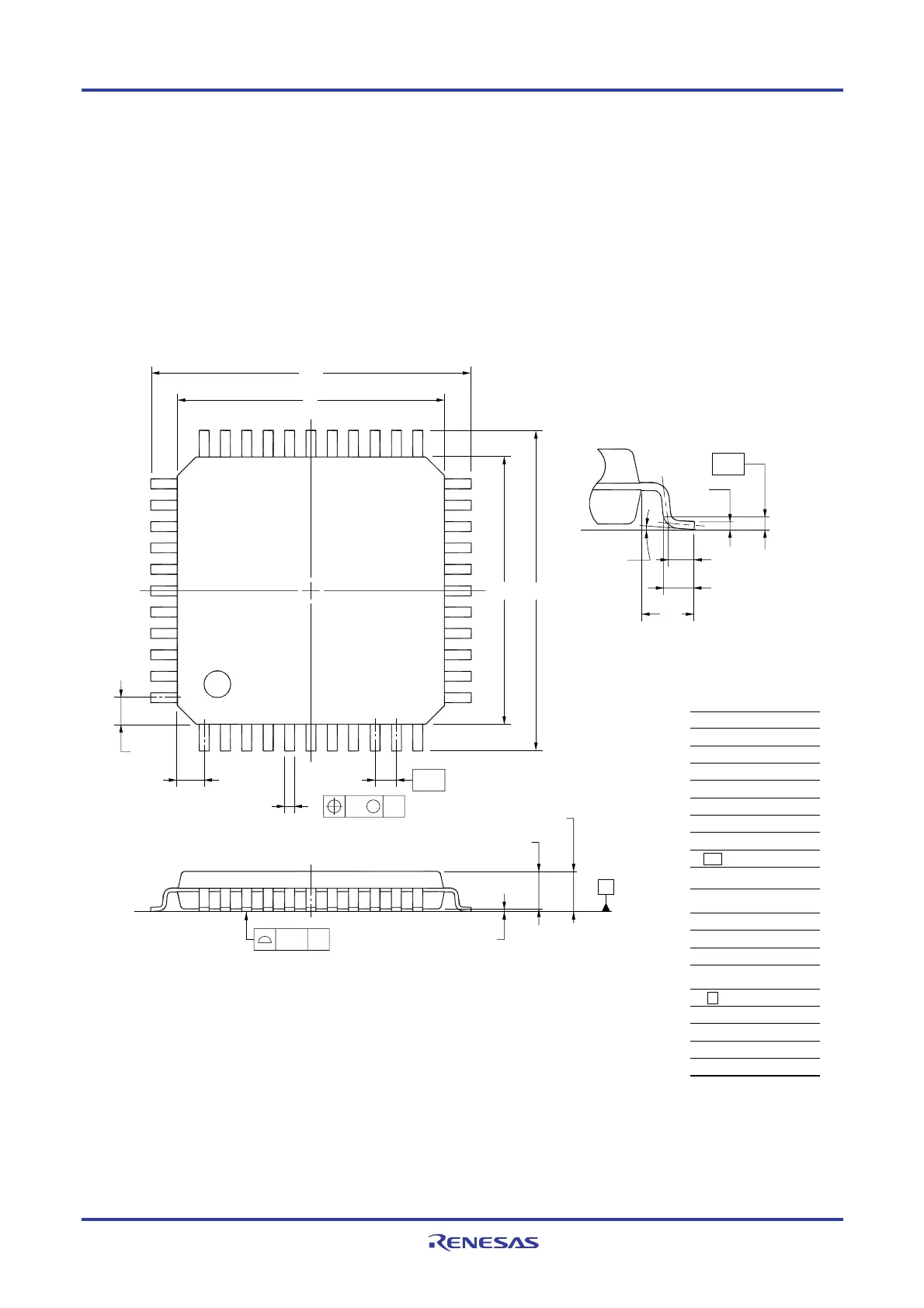

44-PIN PLASTIC LQFP(10x10)
0.37
+0.08
−0.07
b
11
22
1
44
12
23
34
33
