Renesas RL78/G13 - Hardware Trigger Wait Mode (Scan Mode, One-Shot Conversion Mode)

RL78/G13 CHAPTER 11 A/D CONVERTER
R01UH0146EJ0100 Rev.1.00 518
Sep 22, 2011
11.6.12 Hardware trigger wait mode (scan mode, one-shot conversion mode)
<1> In the stop status, the ADCE bit of A/D converter mode register 0 (ADM0) is set to 1, and the system enters the
A/D conversion standby status.
<2> If a hardware trigger is input while in the hardware trigger standby status, A/D conversion is performed on the
four analog input channels specified by scan 0 to scan 3, which are specified by the analog input channel
specification register (ADS). The ADCS bit of the ADM0 register is automatically set to 1 according to the
hardware trigger input. A/D conversion is performed on the analog input channels in order, starting with that
specified by scan 0.
<3> A/D conversion is sequentially performed on the four analog input channels, the conversion results are stored in
the A/D conversion result register (ADCR, ADCRH) each time conversion ends, and the A/D conversion end
interrupt request signal (INTAD) is generated.
<4> After A/D conversion ends, the ADCS bit is automatically cleared to 0, and the A/D converter enters the stop
status.
<5> If a hardware trigger is input during conversion operation, the current A/D conversion is interrupted, and
conversion restarts at the first channel. The partially converted data is discarded.
<6> When the value of the ADS register is rewritten or overwritten during conversion operation, the current A/D
conversion is interrupted, and A/D conversion is performed on the first channel respecified by the ADS register.
The partially converted data is discarded.
<7> When ADCS is overwritten with 1 during conversion operation, the current A/D conversion is interrupted, and
conversion restarts. The partially converted data is discarded.
<8> When ADCS is cleared to 0 during conversion operation, the current A/D conversion is interrupted, the system
enters the hardware trigger standby status, and the A/D converter enters the stop status. When ADCE = 0,
inputting a hardware trigger is ignored and A/D conversion does not start.

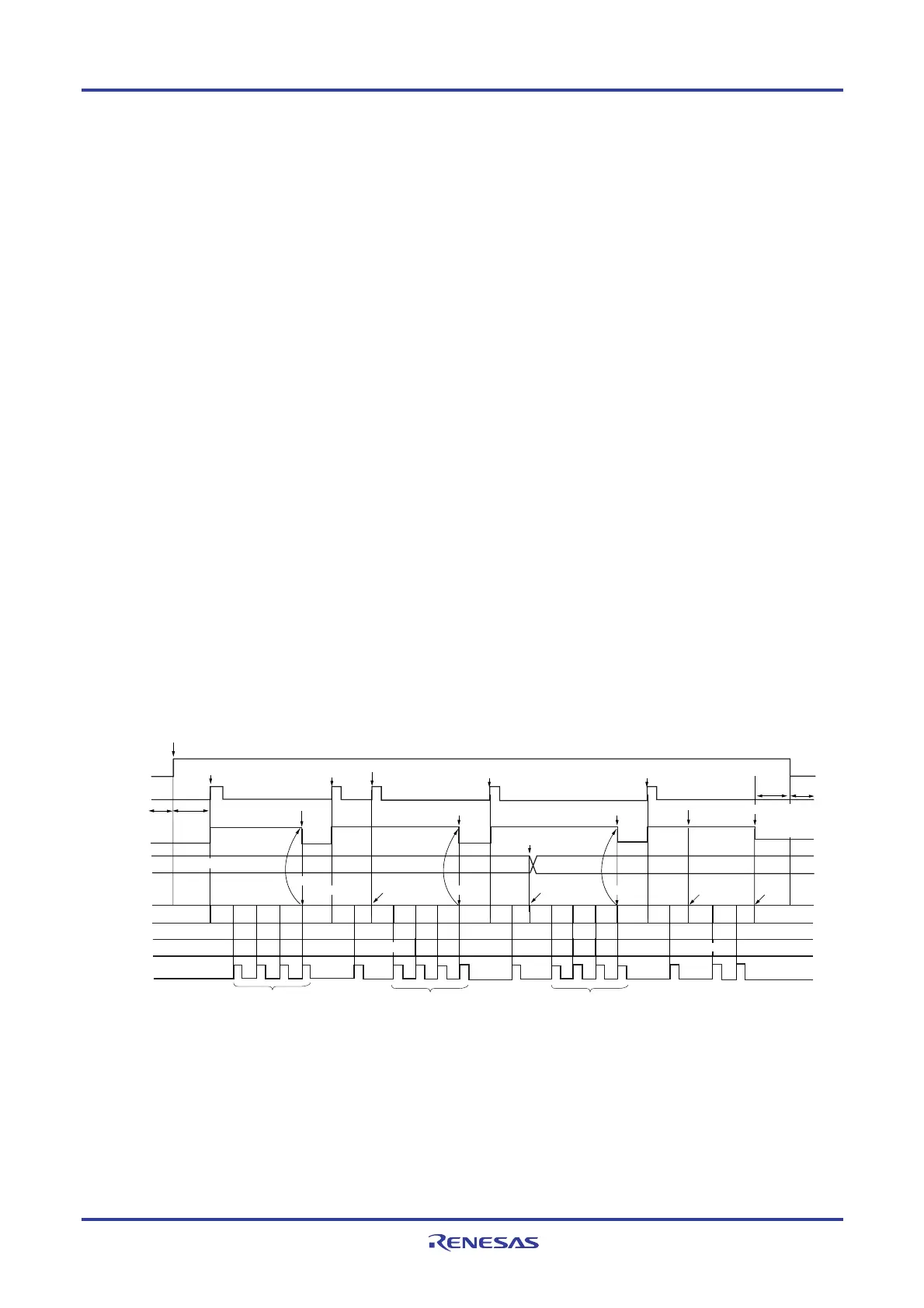

Figure 11-31. Example of Hardware Trigger Wait Mode (Scan Mode, One-Shot Conversion Mode) Operation
Timing
Trigger
standby
status
Conversion
standby
status
Stop status
Stop status
Stop
status
Stop
status
Stop
status
ADCE is set to 1.
<1>
ADCE
ADCS
ADS
INTAD
ADCR,
ADCRH
A/D
conversion
status
Hardware
trigger
A hardware trigger
is generated.
<2>
<2>
<2>
<2>
The trigger is not
acknowledged.
The trigger is not
acknowledged.
The interrupt is generated four times.
The interrupt is generated four times. The interrupt is generated four times.
<4> <4>
<3>
Conversion is
interrupted
and restarts.
Conversion is
interrupted
and restarts.
Conversion is
interrupted
and restarts.
Conversion is
interrupted.
Data 1
(ANI0)
Data 1
(ANI0)
Data 2
(ANI1)
Data 1
(ANI0)
Data 2
(ANI1)
Data 1
(ANI0)
Data 1
(ANI0)
Data 2
(ANI1)
Data 6
(ANI5)
Data 7
(ANI6)
Data 2
(ANI1)
Data 3
(ANI2)
Data 3
(ANI2)
Data 4
(ANI3)
Data 1
(ANI0)
Data 2
(ANI1)
Data 2
(ANI1)
Data 3
(ANI2)
Data 3
(ANI2)
Data 4
(ANI3)
Data 4
(ANI3)
Data 5
(ANI4)
Data 5
(ANI4)
Data 5
(ANI4)
Data 5
(ANI4)
Data 6
(ANI5)
Data 6
(ANI5)
Data 6
(ANI5)
Data 6
(ANI5)
Data 7
(ANI6)
Data 7
(ANI6)
Data 8
(ANI7)
Data 8
(ANI7)
Data 4
(ANI3)
<4>
<4>
<7>
A hardware trigger is
generated during A/D
conversion operation.
<5>
ADS is rewritten
during A/D
conversion operation.
<6>
ADCS is overwritten
with 1 during A/D
conversion operation.
ADCS is cleared
to 0 during A/D
conversion
operation.
ADCS is automatically
cleared to 0 after
conversion ends.
<4>
Data 1 (ANI0)
Data 5 (ANI4)
ANI0 to ANI3
ANI4 to ANI7
<8>
A/D
conversion
ends.
<R>
<R>
<R>
