RL78/G13 CHAPTER 13 SERIAL INTERFACE IICA
R01UH0146EJ0100 Rev.1.00 719
Sep 22, 2011
13.4 I
2
C Bus Mode Functions
13.4.1 Pin configuration
The serial clock pin (SCLA0) and the serial data bus pin (SDAA0) are configured as follows.
(1) SCLA0 .... This pin is used for serial clock input and output.
This pin is an N-ch open-drain output for both master and slave devices. Input is Schmitt input.
(2) SDAA0 .... This pin is used for serial data input and output.
This pin is an N-ch open-drain output for both master and slave devices. Input is Schmitt input.
Since outputs from the serial clock line and the serial data bus line are N-ch open-drain outputs, an external pull-up
resistor is required.

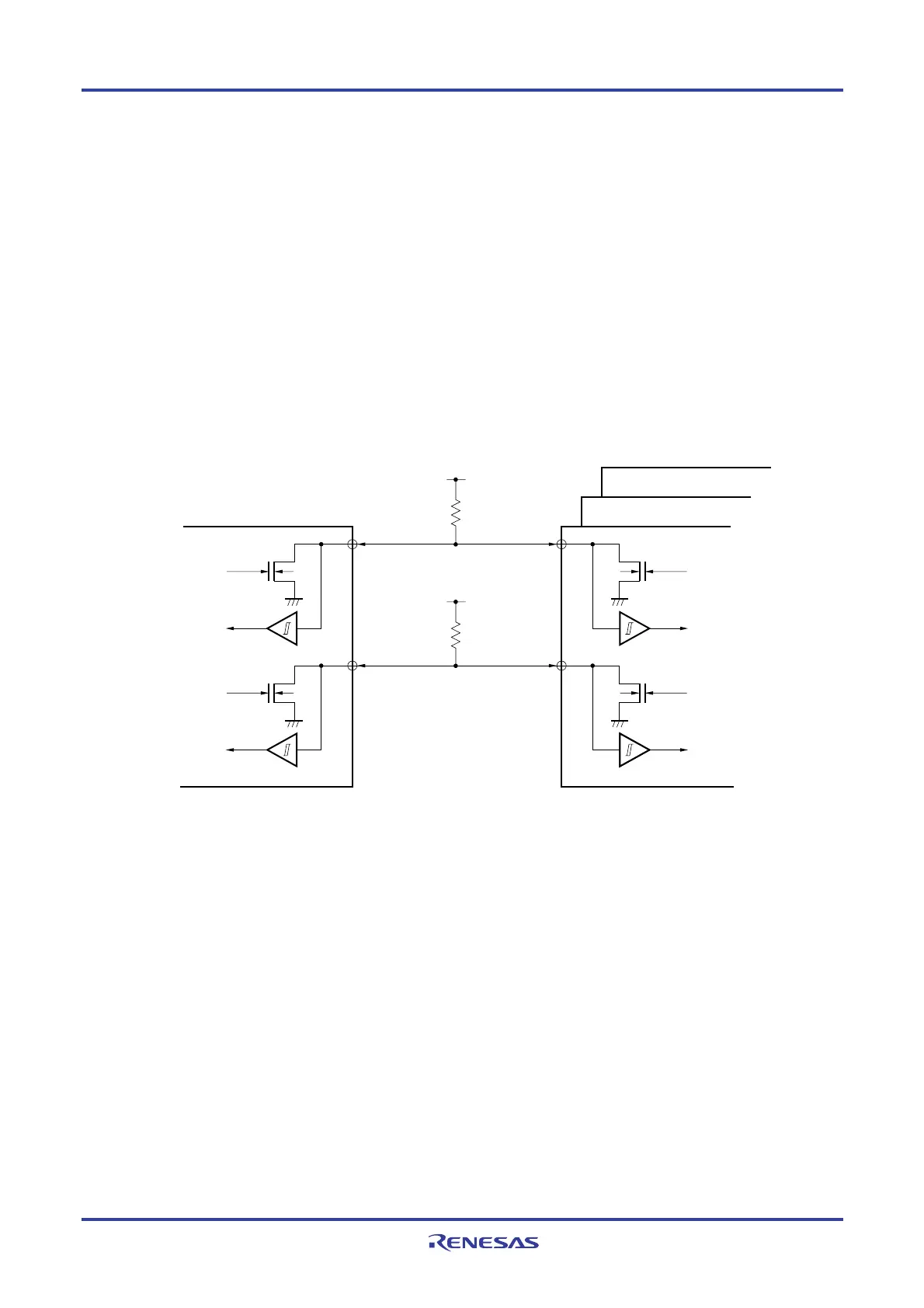

Figure 13-13. Pin Configuration Diagram
Master device
Clock output
(Clock input)
Data output
Data input
V
SS
V
SS
SCLA0
SDAA0
V
DD
V
DD
(Clock output)
Clock input
Data output
Data input
V
SS
V
SS
Slave device
SCLA0
SDAA0
To Next Page
